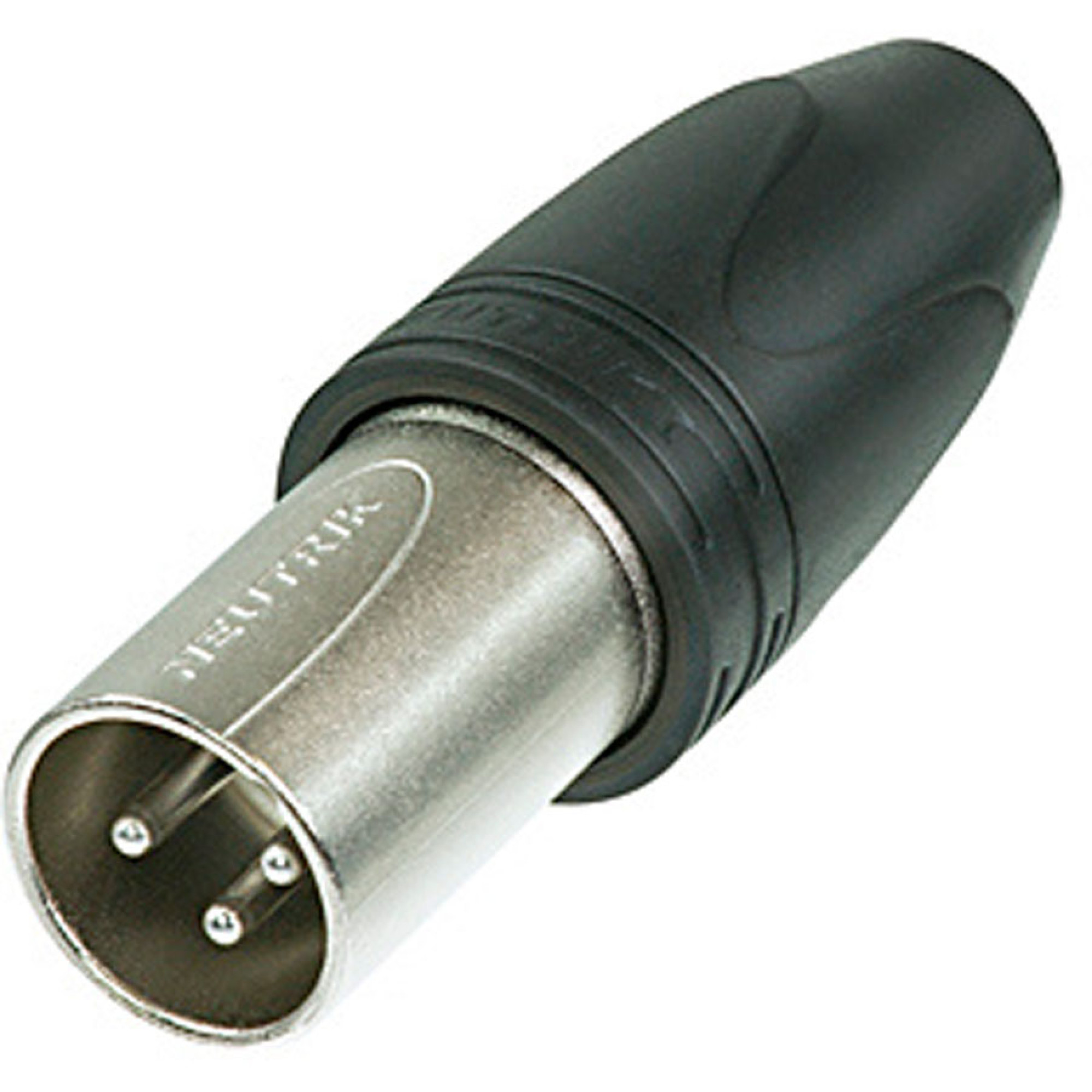

Heavy duty male 3 pole XLR cable connector for outdoor use.
Features & Benefits
- Dust and water ingress sealing according to IP67 in combinition with HD cable connector NC3FXX-HD*
- Rubber sealing jacket protects against water ingress and mechanical shock
- Gold contacts
- Connection Type: XLR
- Gender: male
- Electrical
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V
- Mechanical
- Cable O.D.: 6.0 - 8.0 mm
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 2.5 mm²
- Wiresize: max. 14 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
- Material
- Boot: Polyurethan
- Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium
- Strain relief: Polyacetal (POM)
- Sealing jacket: EPDM
- Environmental
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
