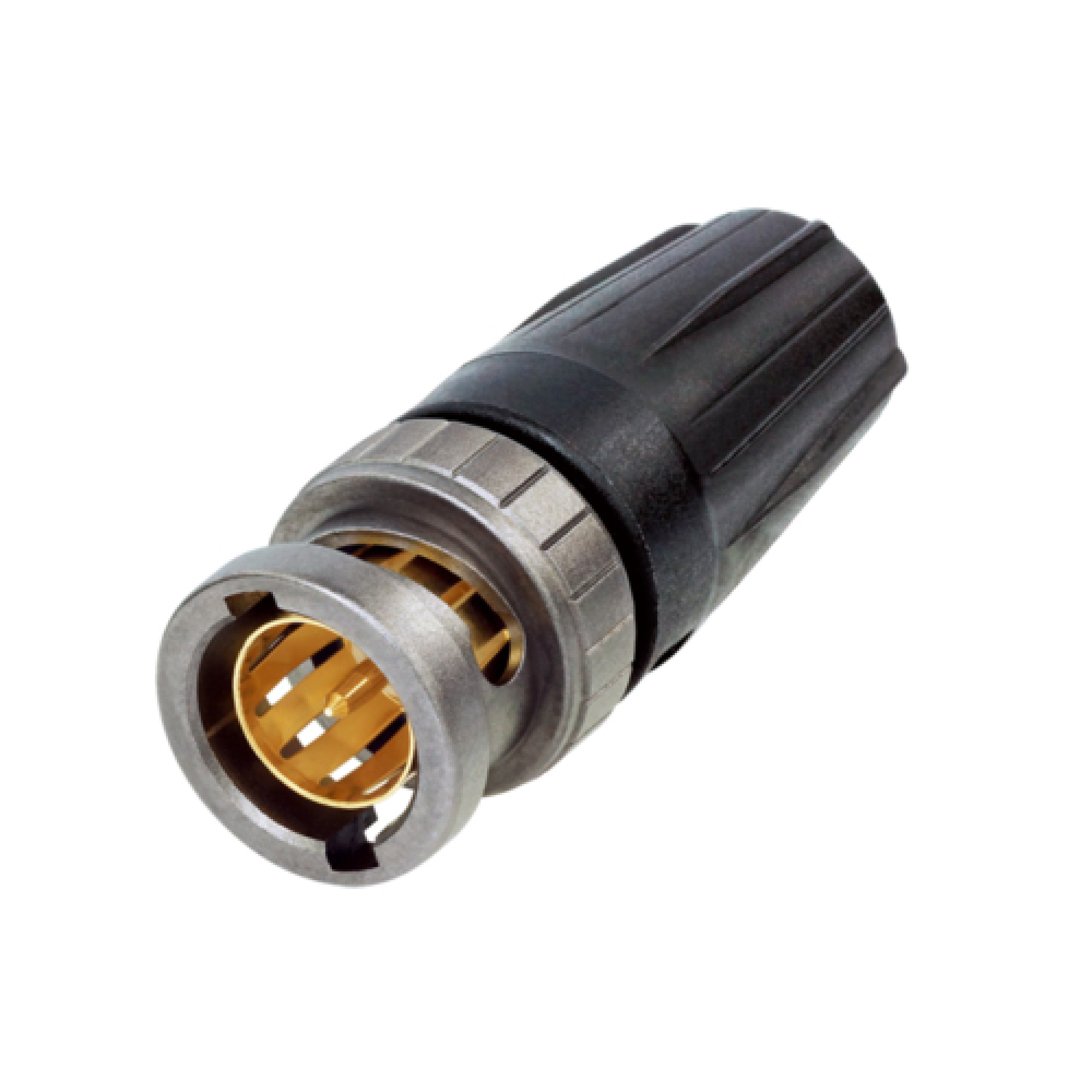

BNC Neutrik NBNC75BLP7X is a specialized connector designed for high-resolution video signal transmission. Thanks to its unique insulator and contact pin design, it has low return loss values for 4K and 8K signals.
NBNC75BLP7X features an optimized contact pin and insulator design for UHD data transmission. It utilizes the proven rearTWIST technology, and Swiss centrally plating, and is fully compatible with traditional BNC chassis connectors. These features contribute to improved return loss values at high frequencies, making it ideal for use in modern video transmission systems.
Technical Information
Electrical Characteristics
| Contact Resistance, max (inner) | ≤ 3 mΩ |
|---|---|
| Contact Resistance, max (outer) | ≤ 2 mΩ |
| Dielectric Strength | 1.5 kVdc |
| Impedance | 75 Ω |
| Insulation Resistance | > 5 GΩ |
| Rated Voltage | < 50 V |
| VSWR | ≤1.06 / >30 dB up to 6 GHz ≤1.13 / >24 dB up to 12 GHz ≤1.22 / >20 dB up to 18 GHz |
Mechanical Characteristics
| Cable O.D. | 6.3 mm |
|---|---|
| Cable Retention | > 30 N (center) |
| Crimp Size (shield) | 6.47 Hex crimp |
| Crimp Size (pin) | 1.07 crimp |
| Insertion Force | < 25 N |
| Lifetime | > 1000 mating cycles |
Material
| Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (center contact) |
|---|---|
| Shell | Brass (CuZn39Pb3) |
| Shell Plating | Antraloy |
| Insert | PP (Polypropylene) |
Environmental Characteristics
| Temperature Range | -30 °C to +85 °C |
|---|---|
| Contact Crimpability | Complies with IEC 60803 and IEC 60352-2 |
