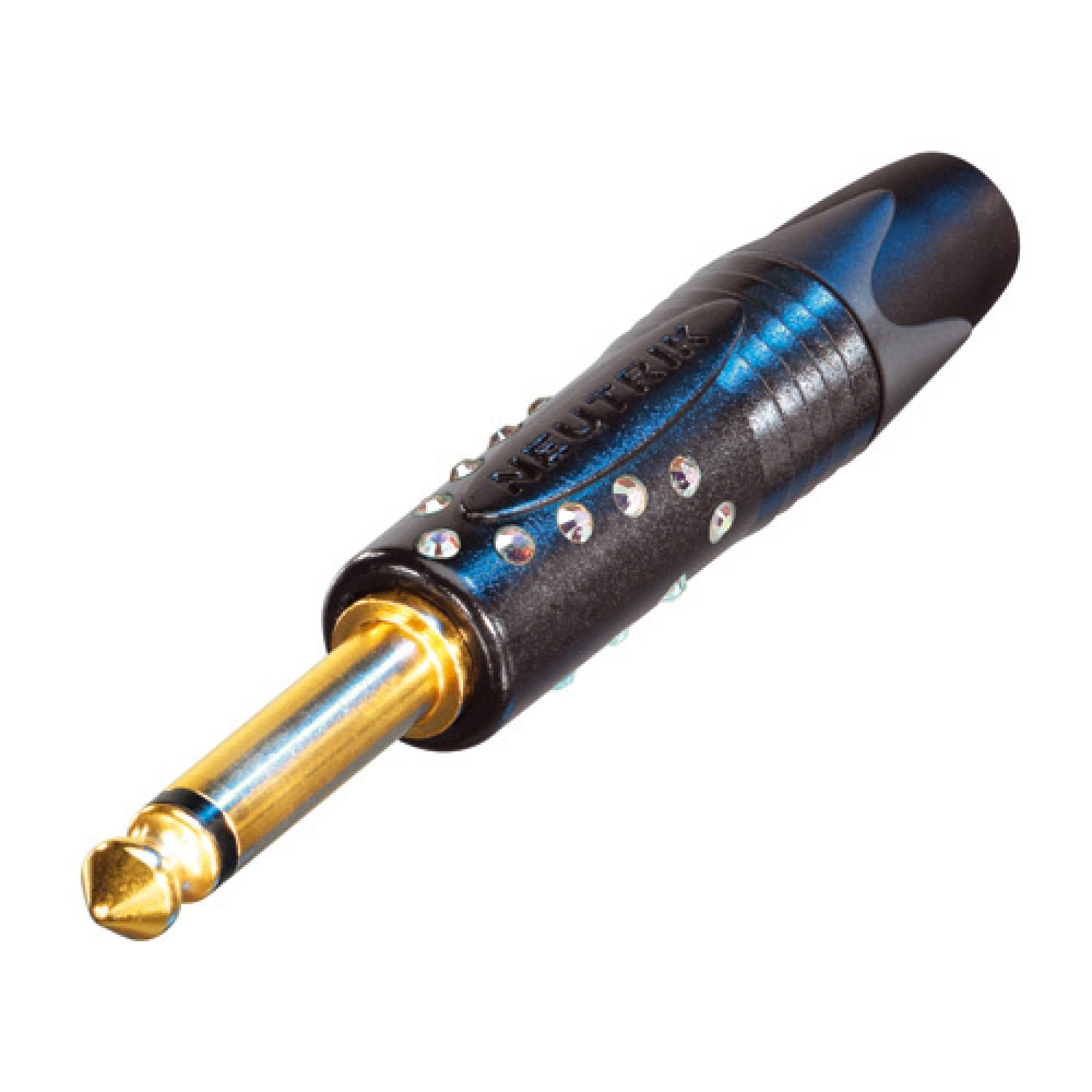

2 pole 1/4" professional phone plug, gold contacts, black metal housing with CRYSTALLIZEDTM - Swarovski Elements.
Features & Benefits
- 2 pole plug PX series made with CRYSTALLIZEDTM - Swarovski Elements
- Fancy, noble, valuable, attractive package - an eye catcher
- Connection Type: 6,3 mm Jack, male
- Electrical
- Contact resistance: Depends on mating connector
- Dielectric strength: 1 kVdc
- Insulation resistance: >2 GOhm
- Rated current per contact: Depends on mating connector
- Rated voltage: <50 V
- Mechanical
- Cable O.D.: 4 - 7 mm
- Lifetime: >1000 matig cycles
- Wiresize: Max. 1 mm²
- Wiring: Solder contacts
- Material
- Boot: Polyacetal (POM) + PU
- Contact plating: 0,2 µm Au
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6,6 30% GR)
- Shell: Made with CRYSTALLIZEDTM - Swarovski Elements
- Shell plating: Black chromium
- Strain relief: Polyacetal (POM)
- Environmental
- Standard compliance: IEC 60603-11/EIA RS-453
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20 °С to +65 °С
