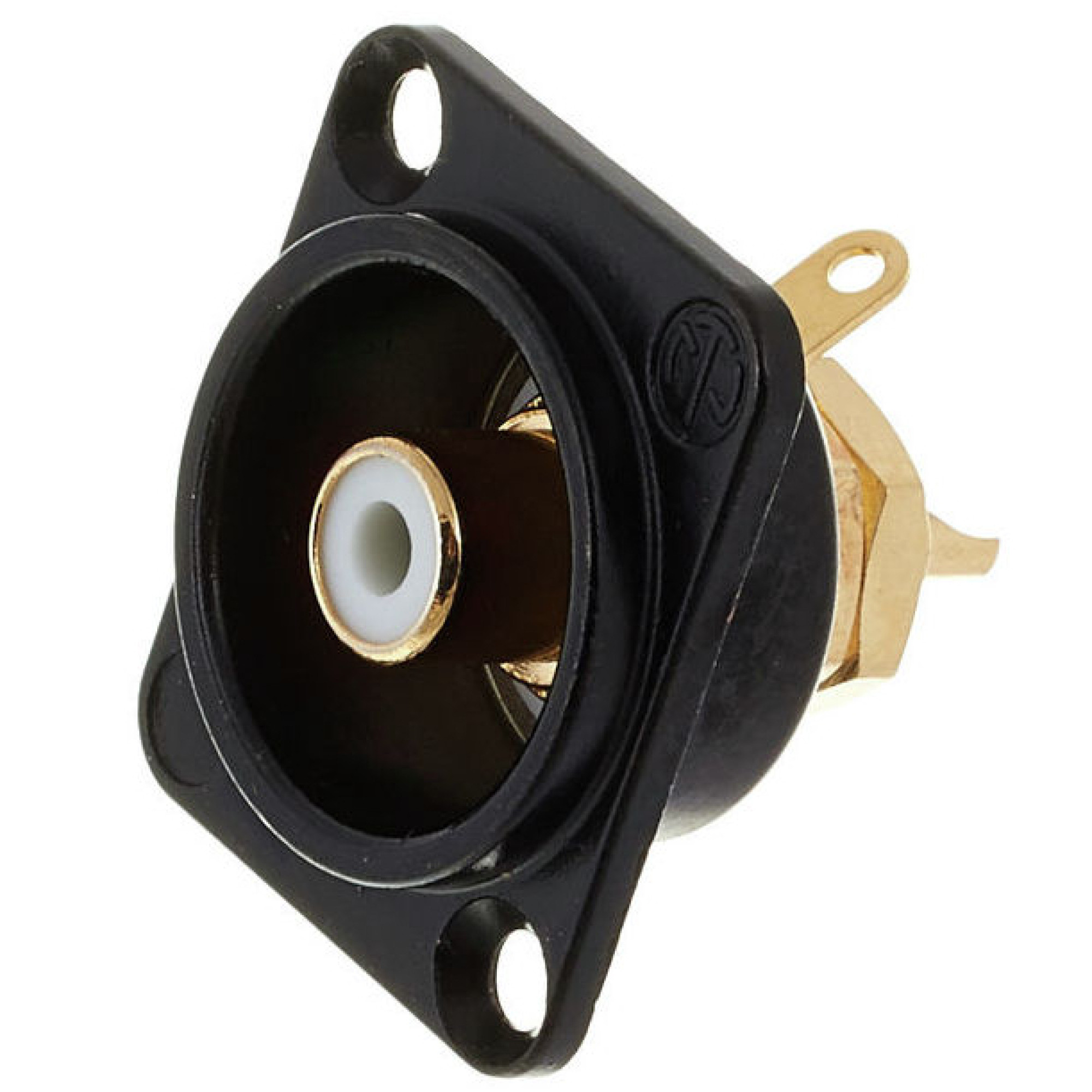

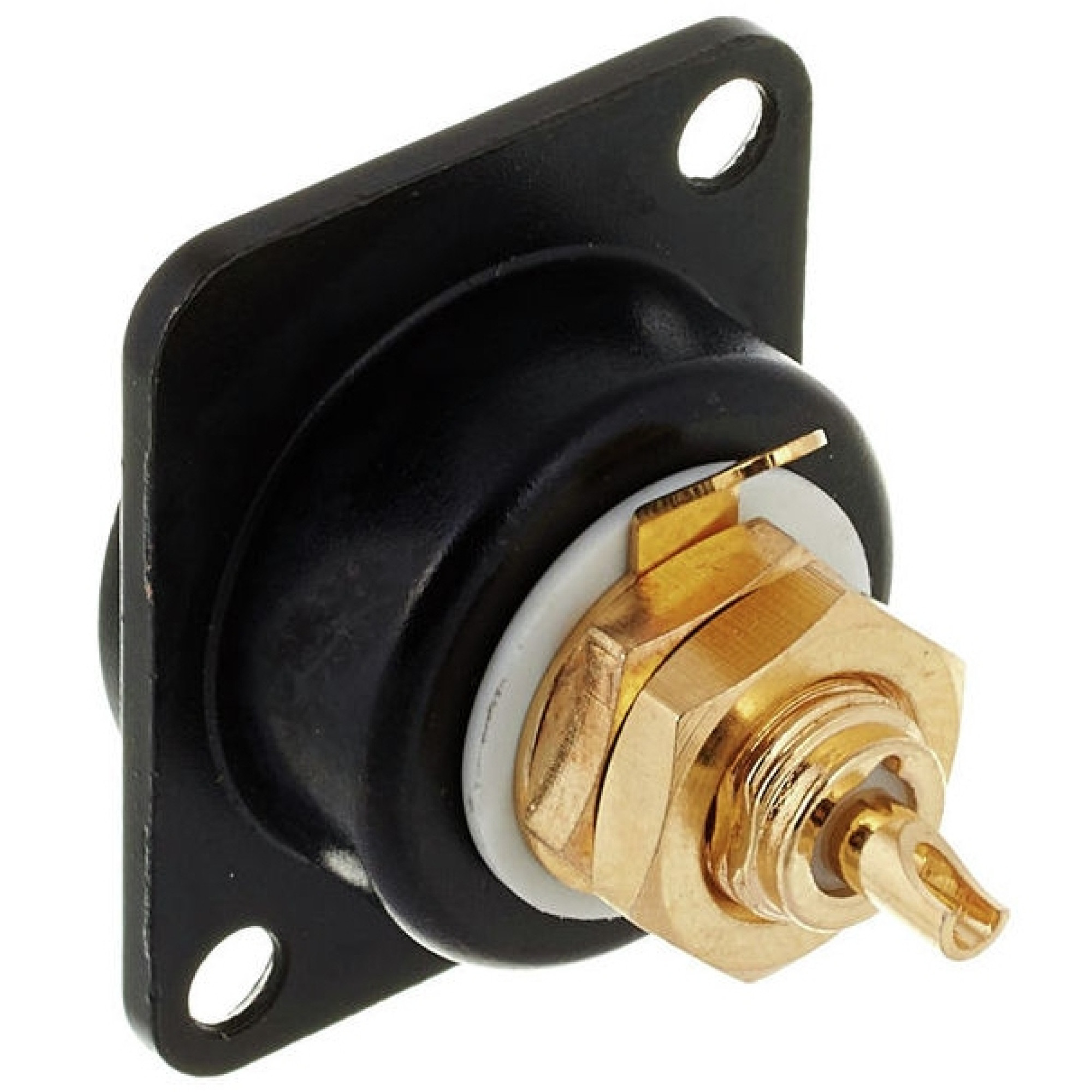

Phono socket in black chrome D-shape housing, white isolation washers, solder version.
Features & Benefits
- Precisely machined to our demanding quality standards
- Gold plated contacts
- Connection Type: RCA
- Gender: female
- Electrical
- Capacitance between contacts: ≤ 9 pF
- Contact resistance: <5 mΩ
- Dielectric strength: 0,5 kVdc
- Insulation resistance: >5 GΩ
- Rated current per contact: 16 A
- Rated voltage: <50 V
- Mechanical
- Lifetime: >2000 mating cycles
- Wiring: Solder contacts
- Mounting direction: Front mounting
- Chassis shape: D
- Material
- Contacts: Brass (CuZn39Pb3)
- Shell: Zinc diecast (ZnAl4Cu1)
- Contact plating: 0.05 µm Au over 2 µm Ni
- Environmental
- Flammability: UL 94 HB
- Standard compliance: IEC 601-14
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
