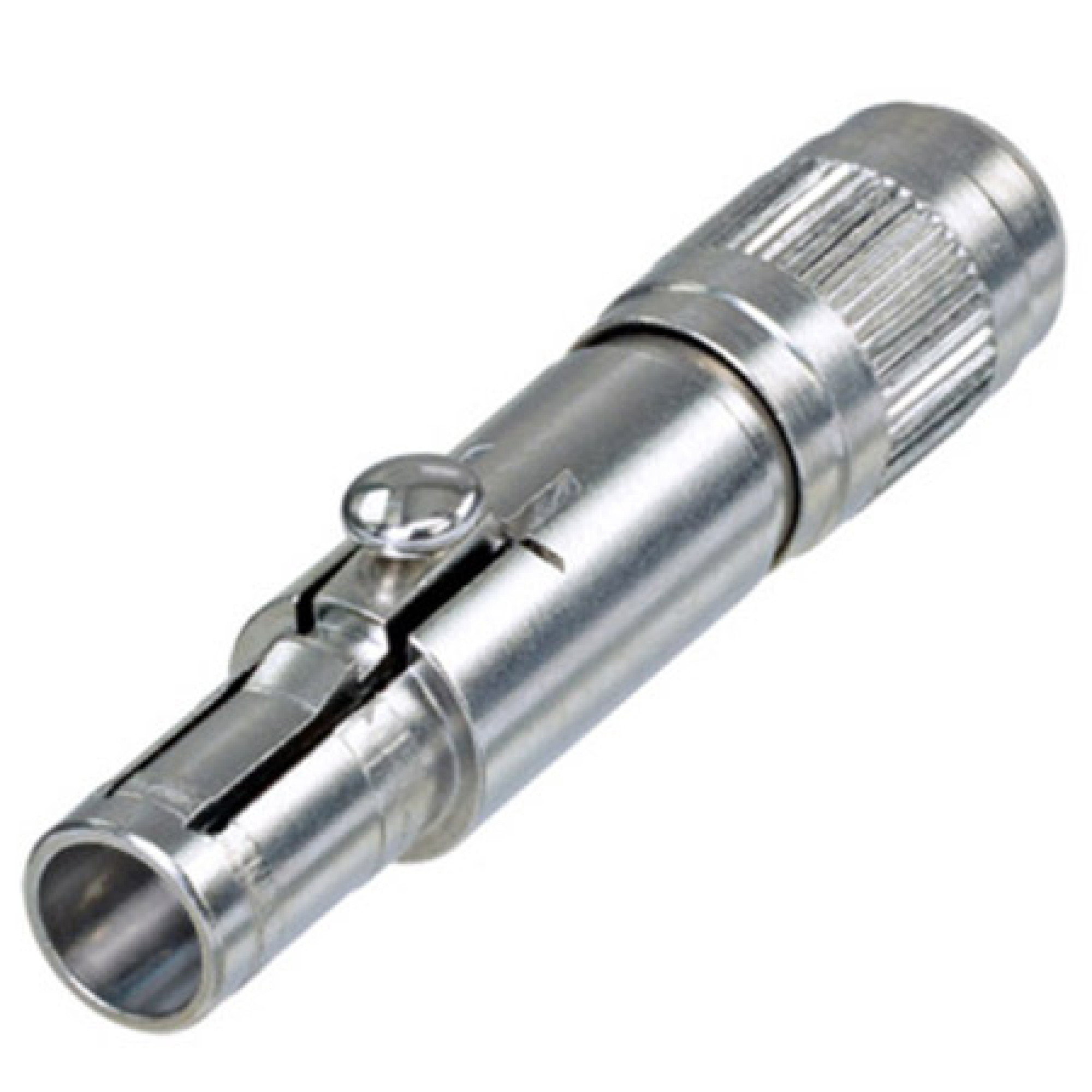

The nanoCON is the smallest lockable 3 pole connector in the world. It offers a robust metal housing, a metal locking device, gold plated contacts and excellent cable retention.
Features & Benefits
- World's smallest circular lockable multipole connector
- Robust metal housing with gold plated contacts
- Reliable and versatile in applications like medical equipment, control systems, sensors or audio applications such as miniature and wireless microphones and portable mixers
- Pre-mating contact 1
- Connection Type: NanoCON
- Gender: female
- Contact resistance: ≤ 12 mΩ
- Dielectric strength: 1 kVdc
- Insulation resistance: > 1 GΩ (after damp heat test IEC 68-2-30)
- Rated current per contact: 2 A
- Rated voltage: < 50 V
- Cable O.D.max.: 3,4 mm
- Cable retention: > 20 N
- Insertion force: < 15 N
- Lifetime: 500 mating cycles
- Wiresize: 0,2 mm² / 0,14 mm² (solid / stranded wire)
- Wiresize: 24 AWG / 26 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
- Contact plating: 0,5 µm Au
- Contacts: Brass (CuZn35Pb2)
- Insert: PETP
- Shell: CuSn4Pb4Zn4
- Strain relief: Polyacetal (POM)
- Flammability: UL 94 V-0
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature: Range-30 °C to +80 °C
