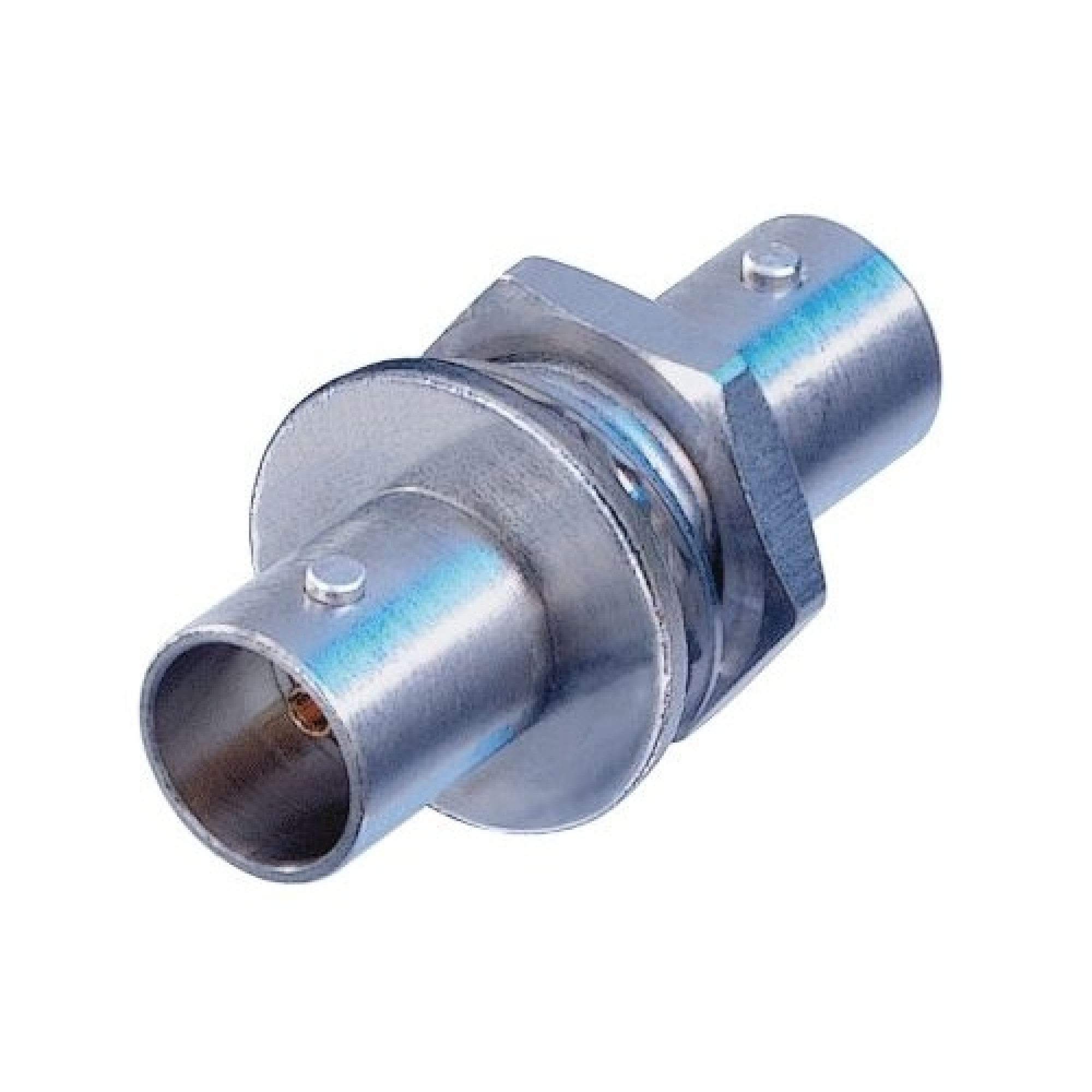

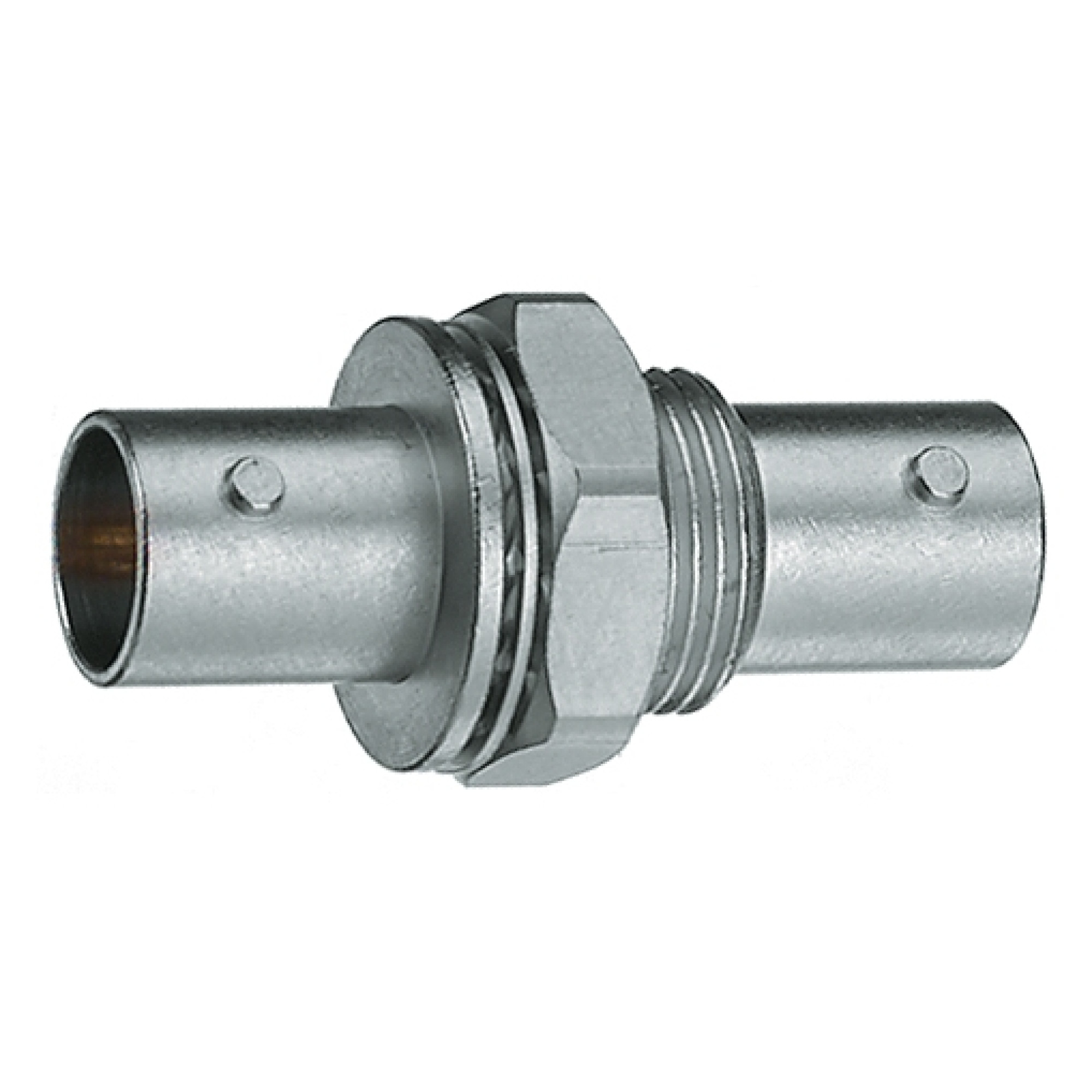

Neutrik's BNC chassis connectors offer a true 75 Ω design for serial and digital (HD & UHD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).
Features & Benefits
- Gold plated cage type center contact
- True 75 Ω design meets the stringent HD requirements
- Grounded panel mount
- Standard D-shape housing - provides flush mounting and protection from demage
- Color coding possible
- Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV UHD
Specs
- Type: panel connector BNC 75 Ω female
- Mounting direction: Front mounting
- Locking device: Bayonett
- Material
- Contact material: Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
- Insert: PTFE
- Shell: Brass (CuZn39Pb3)
- Contact plating: 0.2 micron bronze and gold
- Impedance: 75 Ω
- Insulation resistance: >5 GΩ
- Lifetime: >1000 mating cycles
- Chassis shape: D
- Operating temperature range: -30 °C to +85 °C
- VSWR:
- ≤1.050/>32 dB up to 1 GHz
- ≤1.065/>30 dB up to 2 GHz
- ≤1.100/>26 dB up to 3 Ghz
