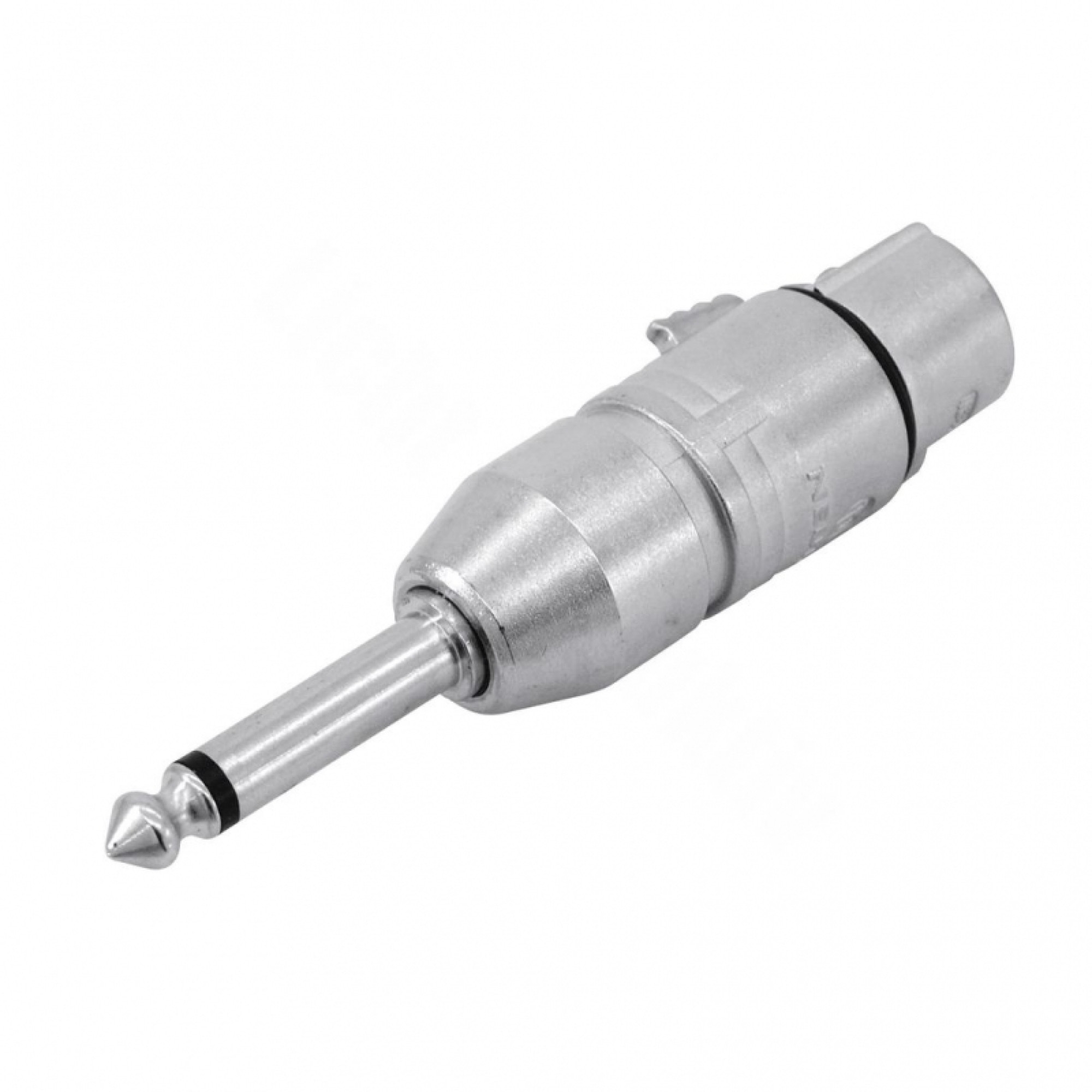

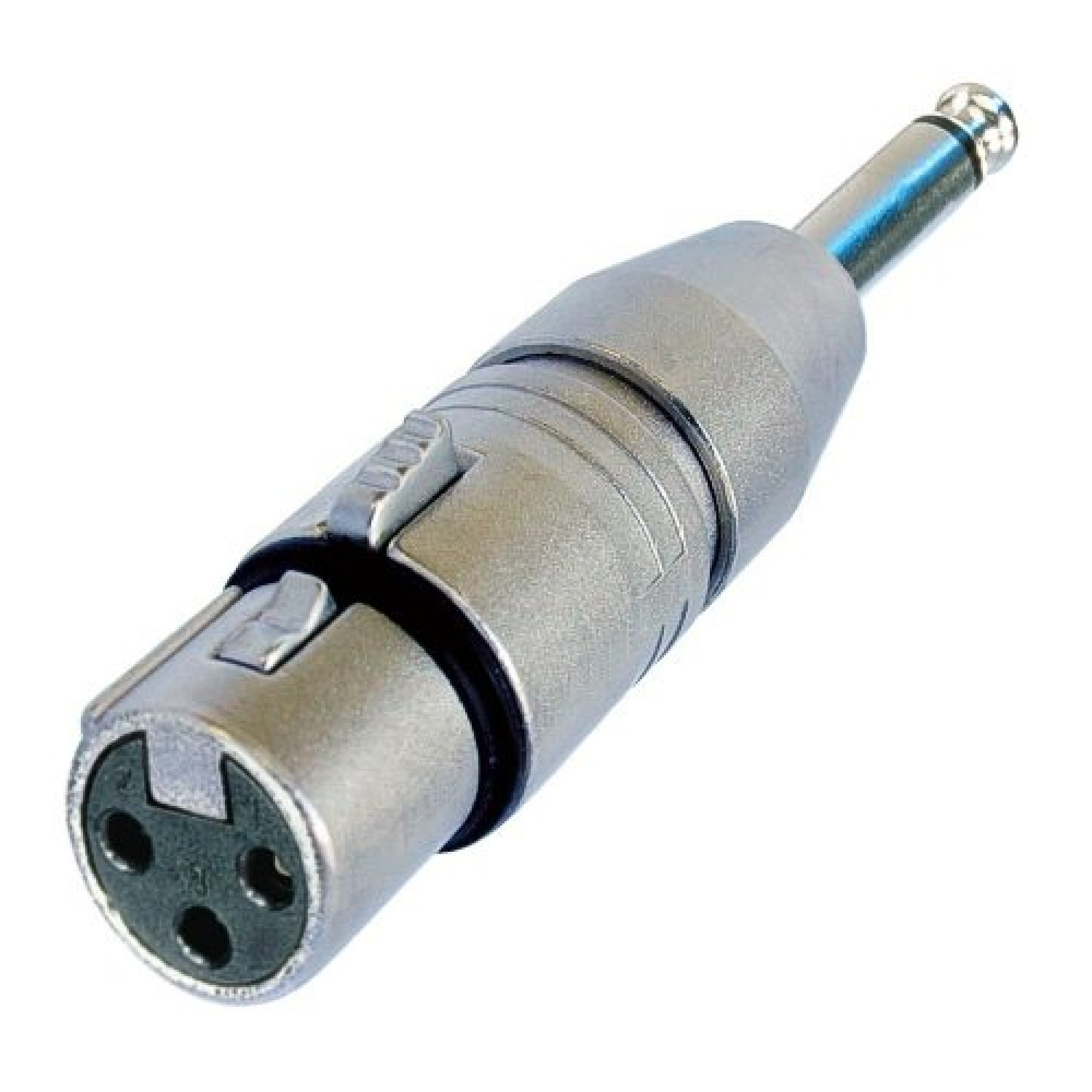

3 pole XLR female – Mono 1/4" plug (tip, sleeve contact).
Wired according to IEC 268-12: Pin 2: signal, Pin 1 and 3: connected to ground.
Features & Benefits
- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
- Rugged diecast shell for best reliability.
- Electrical
- Contact resistance: ≤ 3 mΩ (XLR), ≤ 6 mΩ
- Dielectric strength: 1,5 kV dc / >1 kVdc (XLR/Plug)
- Insulation resistance: > 2 GΩ
- Rated current per contact: 7,5 A
- Rated voltage: < 50 V
- Mechanical
- Wiresize: according to IEC 268-12 pin 2 = signal, pin 1 and 3 connected to ground
- Locking device: Latch lock
- Material
- Contact plating: 2 µm Ag over 2 µm Ni
- Contacts: Brass (CuZn39Pb3) (plug)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: gal Cu/Ni
- Environmental
- Temperature range: -20 °C to +65 °C
