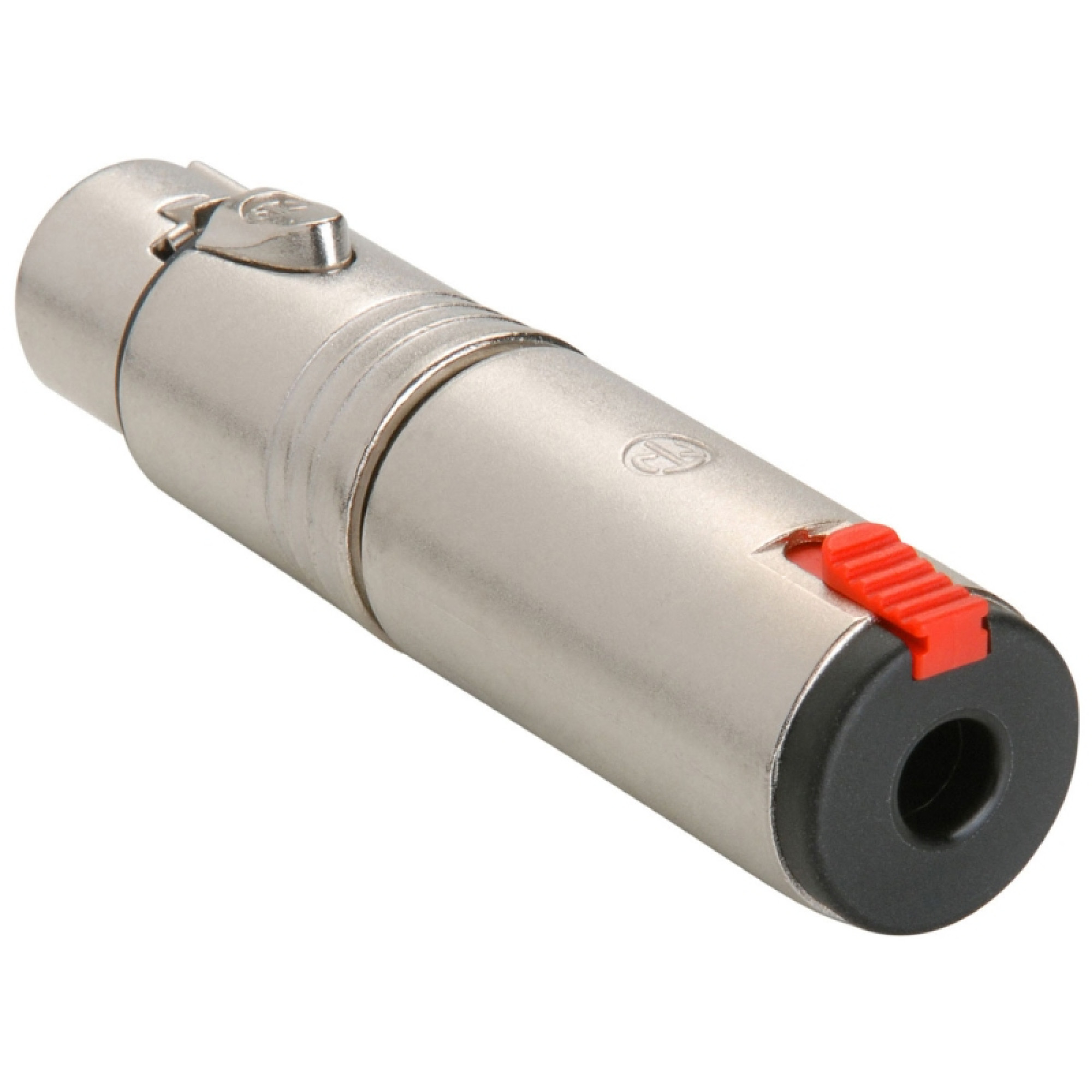

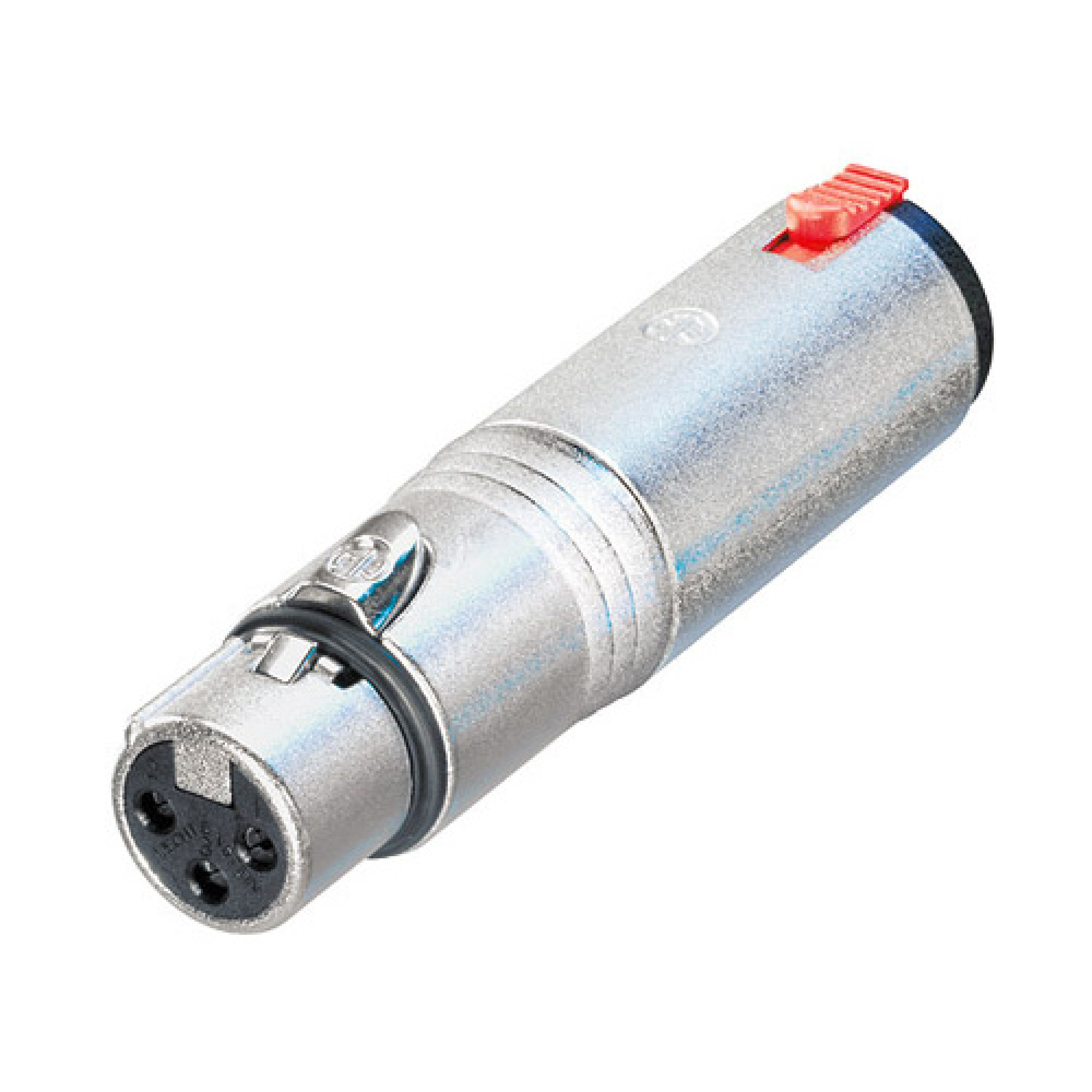

3 pole XLR female - Stereo 1/4" locking jack (tip, ring, sleeve contact).
Features & Benefits
- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the XX Series
- Rugged diecast shell for best reliability.
- Electrical
- Contact resistance: ≤ 3 mΩ (XLR), ≤ 6 mΩ
- Dielectric strength: 1.5 kV dc / >1 kVdc (XLR/Jack)
- Insulation resistance: > 2 GΩ
- Mechanical
- Insertion force: < 20 N
- Withdrawal force: < 20 N
- Lifetime: > 1000 mating cycles
- Locking device: Latch lock
- Material
- Contact plating: 2 µm Ag
- Contacts: Brass (CuZn39Pb3) (jack)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: gal Cu/Ni
- Environmental
- Temperature range: -20 °C to +65 °C
