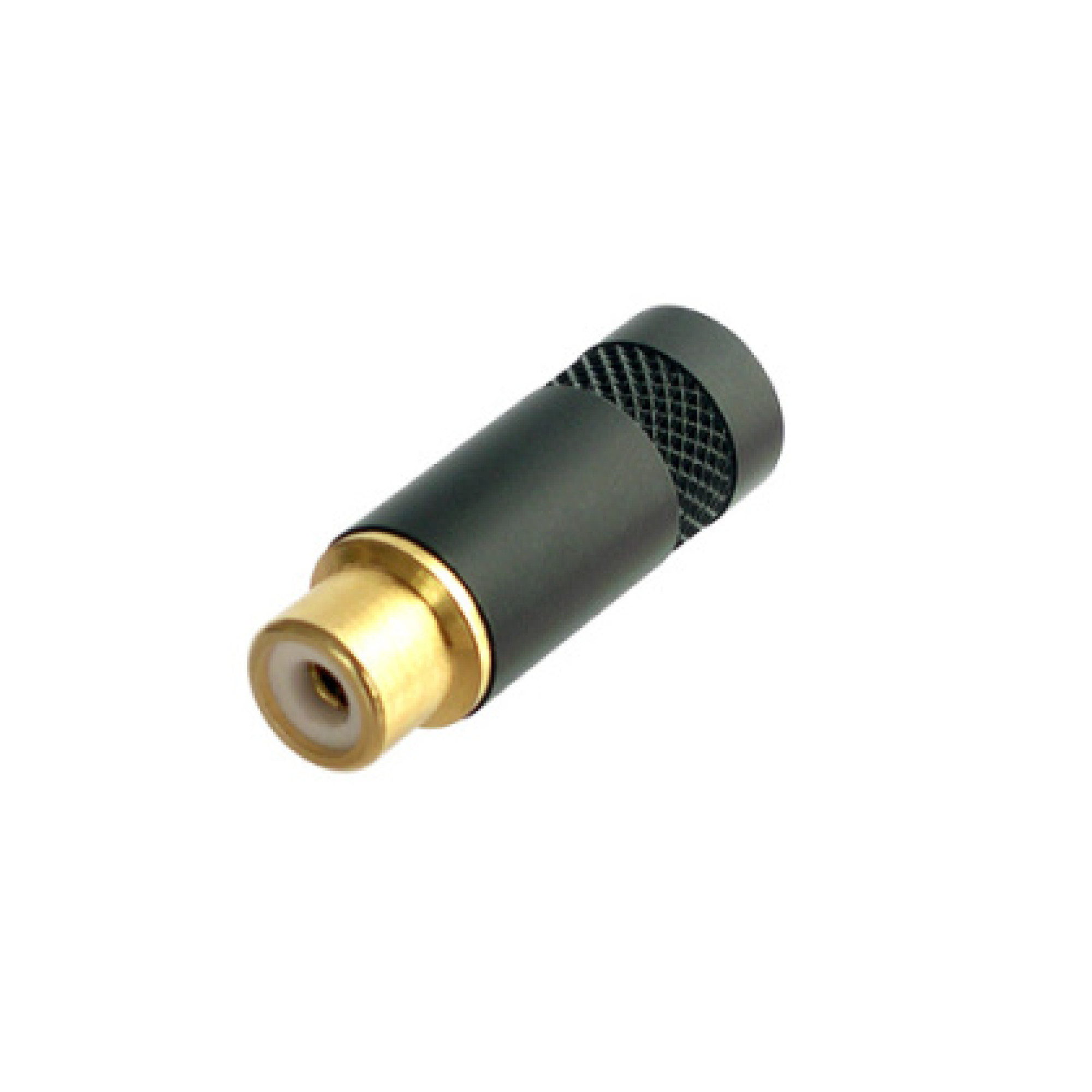

The RCA Female Rean by Neutrik NYS372P-BG is a high-quality 2-pole connector designed for professional use in audio systems. It is suitable for cables with a diameter of up to 7.2 mm and provides a reliable and stable connection. The contacts of the connector have gold plating, which ensures excellent conductivity and corrosion resistance, as well as improves sound transmission quality. The black handle of the connector provides ease of use.
Technical Information
Electrical Characteristics
| Dielectric Strength | 0.5 kV DC |
|---|---|
| Insulation Resistance | ≥ 1 GΩ |
| Rated Current | Depends on the mated connector |
| Contact Resistance | Depends on the mated connector |
Mechanical Characteristics
| Cable O.D. | 7.2 mm |
|---|---|
| Lifetime | > 1000 mating cycles |
| Wiresize | 26 AWG |
Material
| Contact Plating | Gold |
|---|---|
| Contacts | Brass (CuZn39Pb3) |
| Shell | Brass (CuZn39Pb3) |
| Shell Plating | Black |
| Strain Relief | SnCe Plated |
| Insulation | ABS |
Environmental Characteristics
| Solderability | Complies with IEC 68-2-20 |
|---|---|
| Temperature Range | -25 °C to +70 °C |
