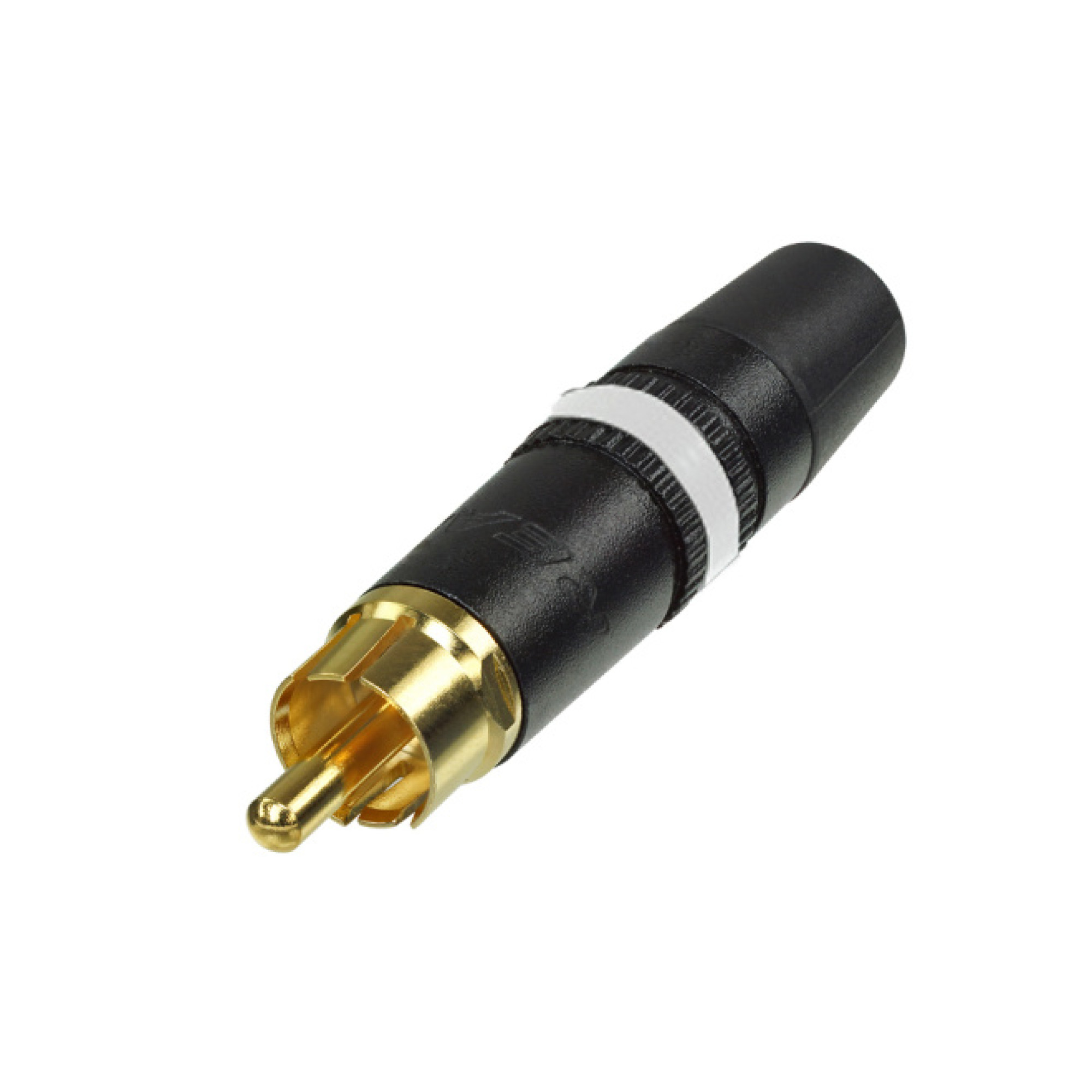

Rean by Neutrik NYS373-9 is an RCA cable connector designed for audio cables with diameters ranging from 3 to 6.1 mm. It features gold-plated contacts to ensure reliable electrical connections and prevent signal loss. The black chrome handle adds stability and elegance to the design. Additionally, it is equipped with a collet strain relief and cable protector to reduce cable tension and ensure durability. The connector has color coding for convenient channel identification: black (0), red (2), yellow (4), green (5), blue (6), and white (9).
Technical Information
Electrical Characteristics
| Contact Resistance | ≤10 mΩ |
|---|---|
| Insulation Resistance | >2000 MΩ (initial) |
| Rated Voltage | 0.5 VAC |
Mechanical Characteristics
| Insertion and Withdrawal Force | 5-20 N |
|---|---|
| Lifetime | >5000 mating cycles |
Material
| Contact | Brass |
|---|---|
| Housing | Copper |
| Housing | Zinc |
| Boot | PVC |
| Ground Contact | H62 |
| Chuck | PA6 |
| Color Dividing Ring | Rubber |
| Elastic Clamp | ABS |
| Pin | Gold |
| Housing | Gold |
| Ground Contact | Gold |
| Housing | Black Plated |
