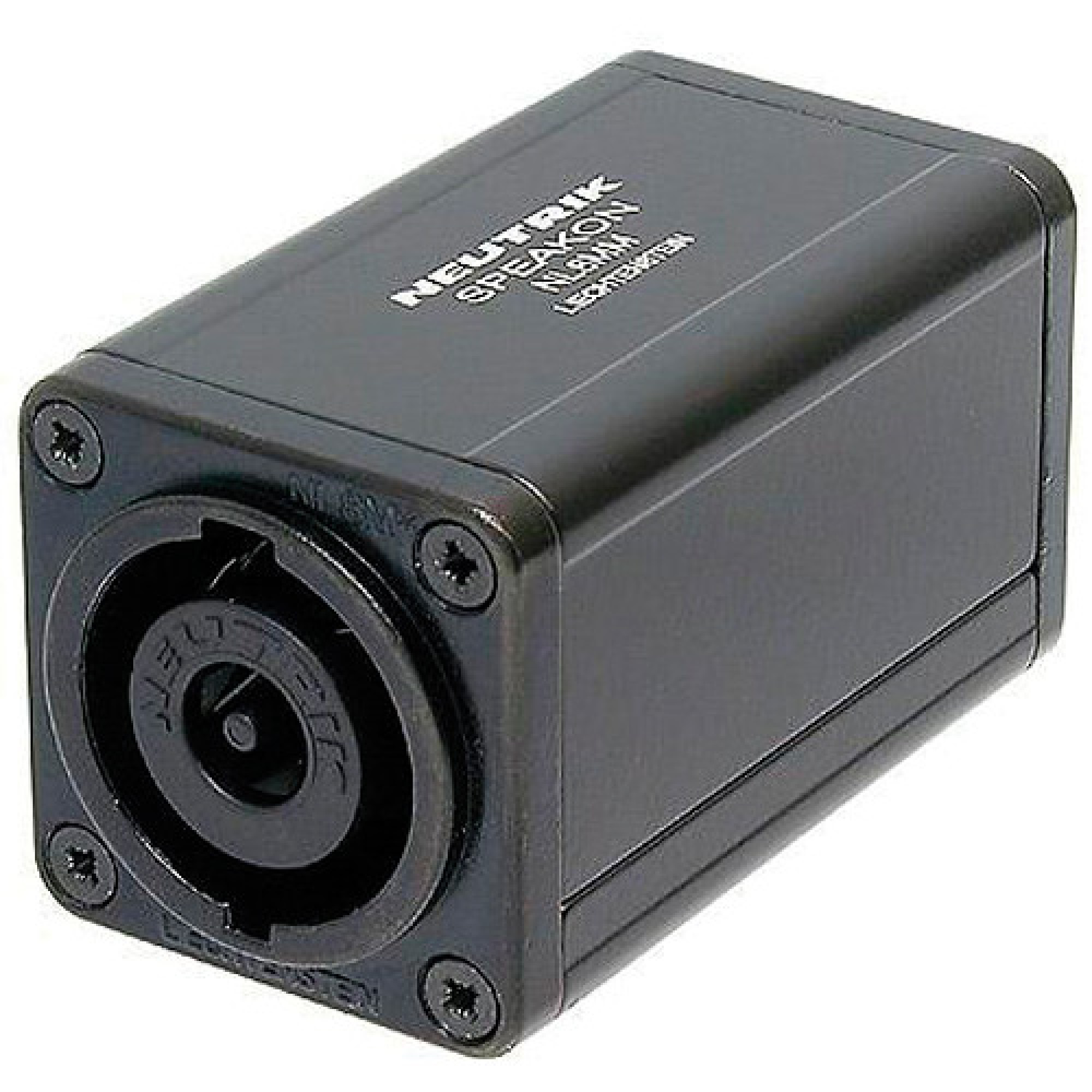

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features
- Electrical
- Contact resistance: ≤3 mΩ (after lifetime)
- Dielectric strength: 4 kVdc (peak)
- Insulation resistance: >1 GΩ (after dampheat)
- Rated current per contact: 15 A rms continuous
- Rated voltage: 250 V (Insulation)
- SpeakON is NOT to be used as an AC mains or power supply connector!
- Mechanical
- Lifetime: >5000 mating cycles
- Locking device: Quick Lock
- Material
- Contact plating: 4 µm Ag
- Contacts: Bronze (CuSn6)
- Shell: Polyamide (PA 6 30 % GR) black
- Environmental
- Flammability: UL 94 HB
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
