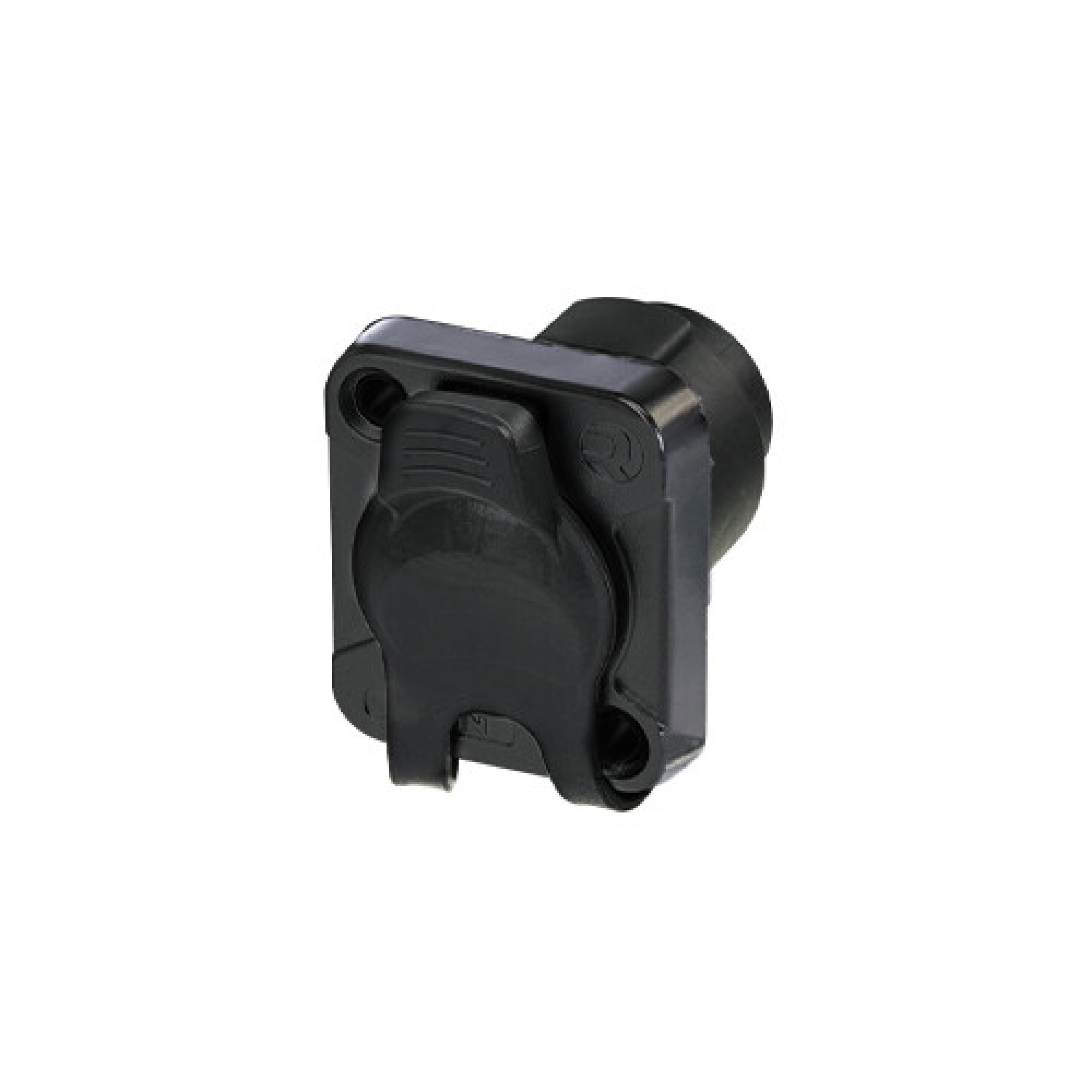

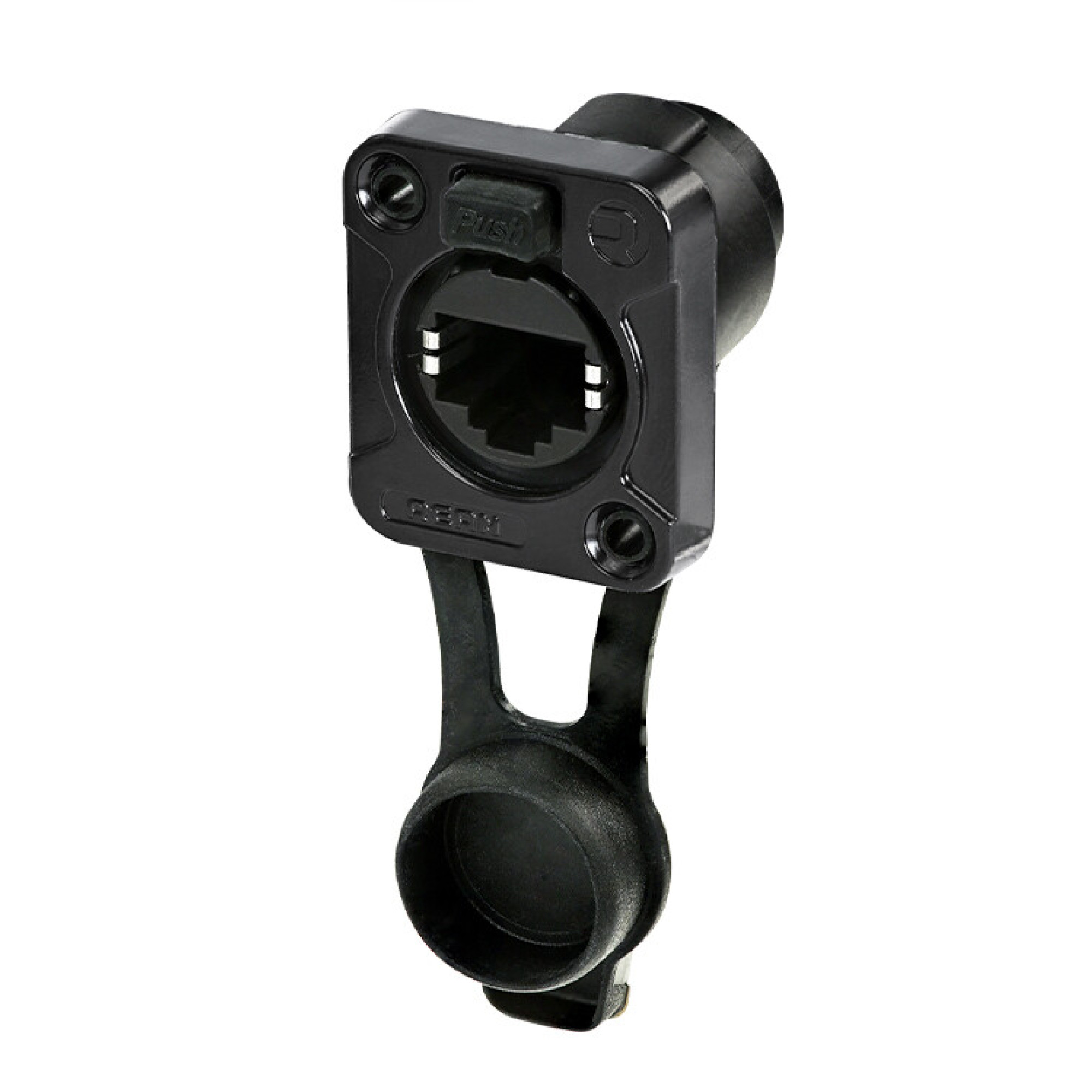

The RJ45 Female Ethernet Connector Rean by Neutrik RRE8F-Z-001-1 is a high-quality panel connector designed to provide reliable connections. This connector features a black D-type flange front-mount housing and a collet clamp for secure cable retention. The contacts are gold-plated to ensure excellent conductivity and corrosion resistance. With an IP65 rating, the connector effectively protects the contacts from water ingress when mated with the corresponding REAN IP65 connector or when covered with a rubber cap. The use of UL94 V-0 rated materials ensures high flame resistance. The unique design of the rubber cap and gasket provides more reliable protection and easier installation on the device panel.
Technical Information
Electrical Characteristics
| Contact resistance | ≤ 100 mΩ |
|---|---|
| Dielectric strength | 1 kV DC |
| Frequency range | 1 – 100 MHz |
| Insulation resistance | > 5 GΩ (initial) |
| Rated current per contact | 1.5 A |
| Rated voltage | < 50 V |
| Transmission performance | CAT 5E |
Mechanical Characteristics
| Insertion force | ≤ 60 N |
|---|---|
| Withdrawal force | ≤ 60 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Feedthrough |
| Locking device | Latch lock |
| Mounting direction | Front mounting |
| Chassis shape | See drawing |
| Panel cutout | D |
Material
| Contact plating | Gold (AU) |
|---|---|
| Contacts | Phosphor bronze |
| Insert | Polyamide (UL94-V0) |
| Locking element | Spring steel |
| Shell | Zinc diecast |
| Shell plating | Black |
Environmental Characteristics
| Flammability | UL 94-V0 |
|---|---|
| Protection class | IP65 (mated or closed with rubber cap) |
| Standard compliance | TIA/EIA 586B, IEC 11801 |
| Temperature range | -20 °C to +70 °C |
