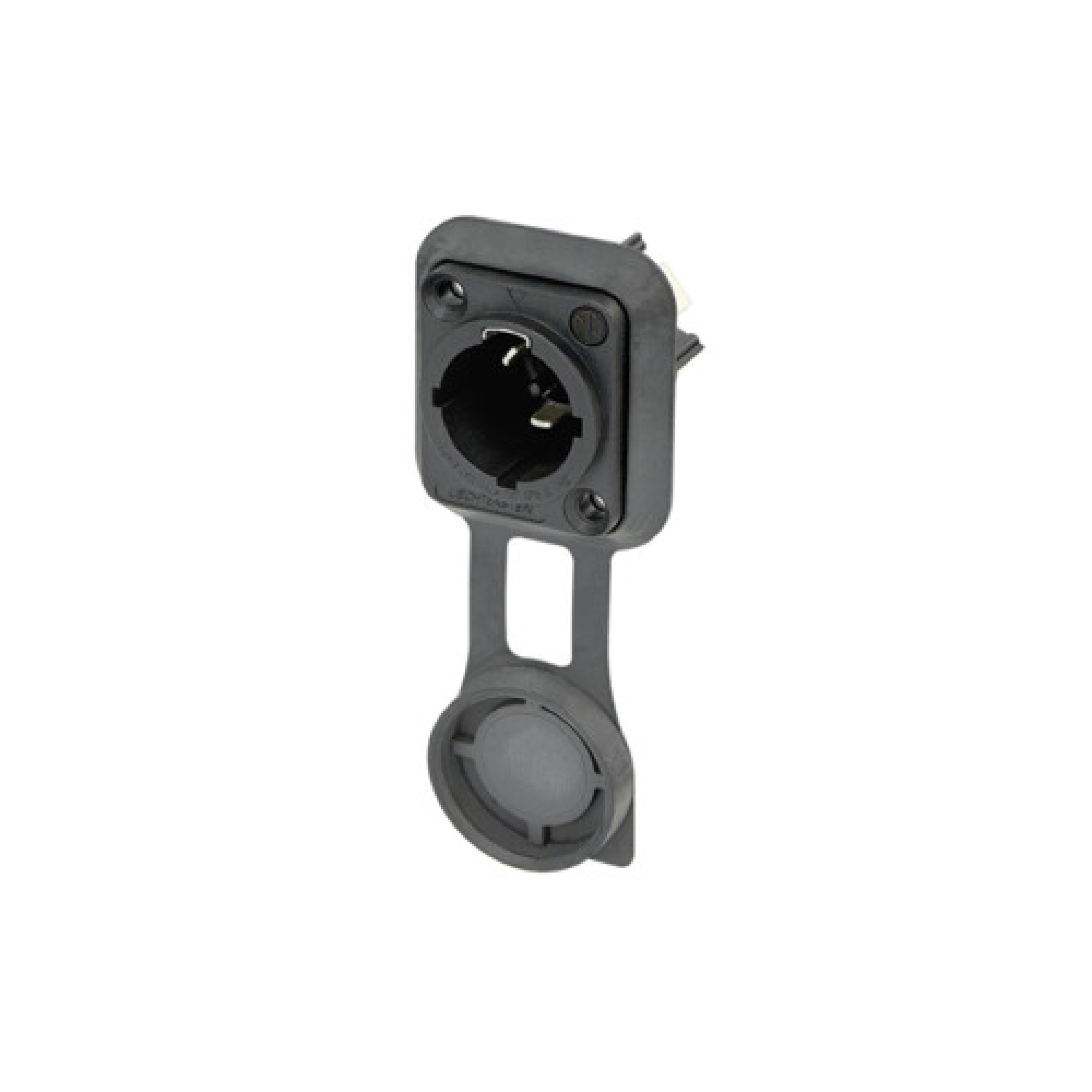

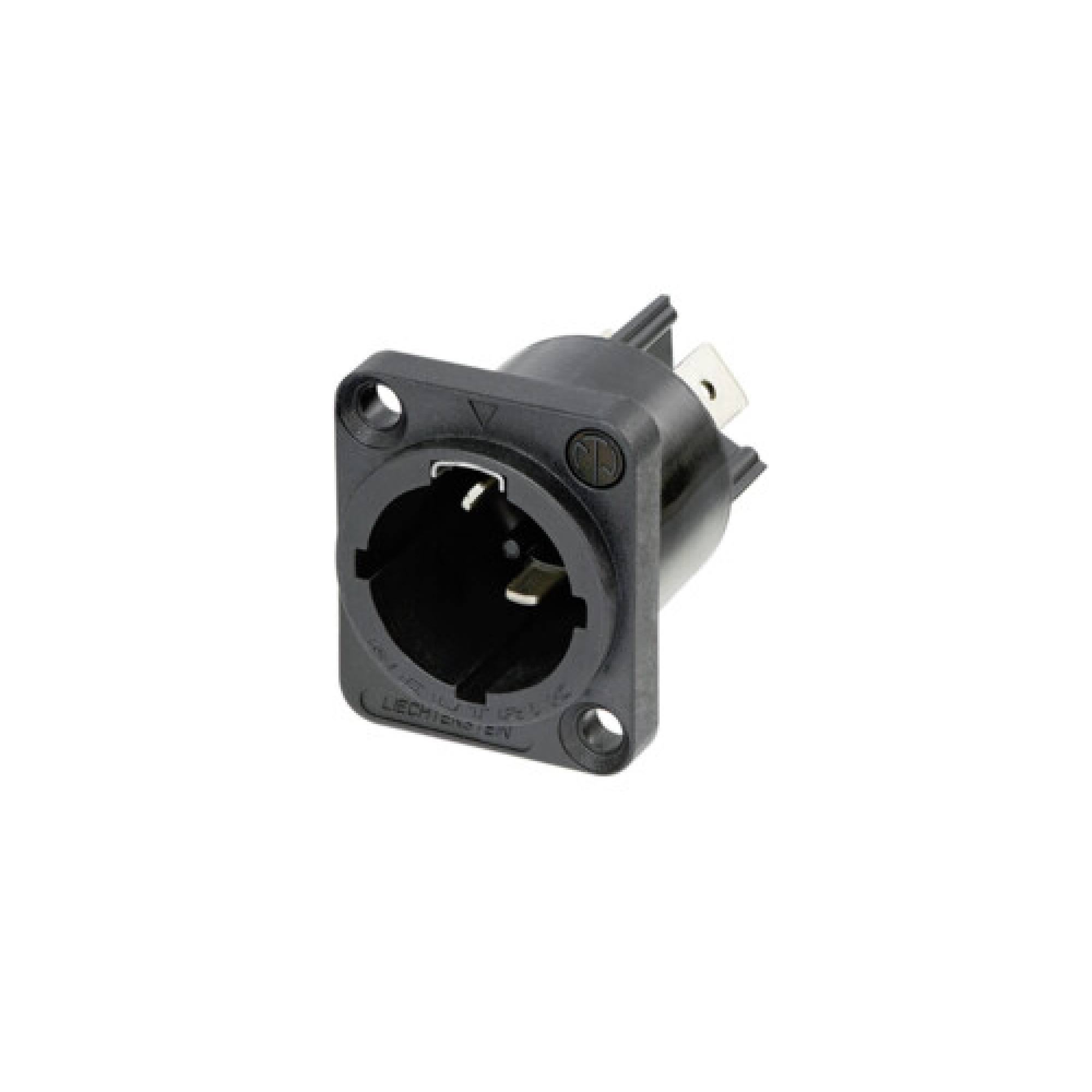

The powerCON Neutrik NAC3MPX-TOP connector is a locking mains connector. It replaces appliance connectors where a highly reliable solution combined with a locking device is needed to ensure safe power connection. The connector features a breaking capacity (CBC). It meets IP65 requirements and has a UL50E Type 4 protection rating when used with SCNAC-MPX (connected or with a closed cap). The powerCON Neutrik NAC3MPX-TOP connector is an extremely robust and reliable product.
Technical Information
Electrical Characteristics
| Contact Resistance | ≤ 2 mΩ |
|---|---|
| Dielectric Strength | 4 kVdc / 2.8 kVac |
| Insulation Resistance | > 1 GΩ (after humidity test) |
| Number of Electrical Contacts | 2 + PE |
| Rated Voltage (Europe) | EN 60320-1: 16 A 250 V AC |
| Rated Voltage (USA) | UL 498: 20 A 250 V AC |
Mechanical Characteristics
| Lifetime | > 5000 mating cycles |
|---|---|
| Wire Size | 2.5 mm² / 12 AWG |
Material
| Contact Plating | 2 µm Ag (silver) |
|---|---|
| Locking Element | Stainless Steel |
| Shell | Polyamide (PA 6.6) |
| Contacts | Spring Bronze (CuSn0.2) |
Environmental Characteristics
| Flammability | UL 94 V-0 |
|---|---|
| Protection Class | IP65, Type 4 per UL50E when used with SCNAC-MPX (connected or with closed cap) |
| Temperature Range | -30 °C to +80 °C |
