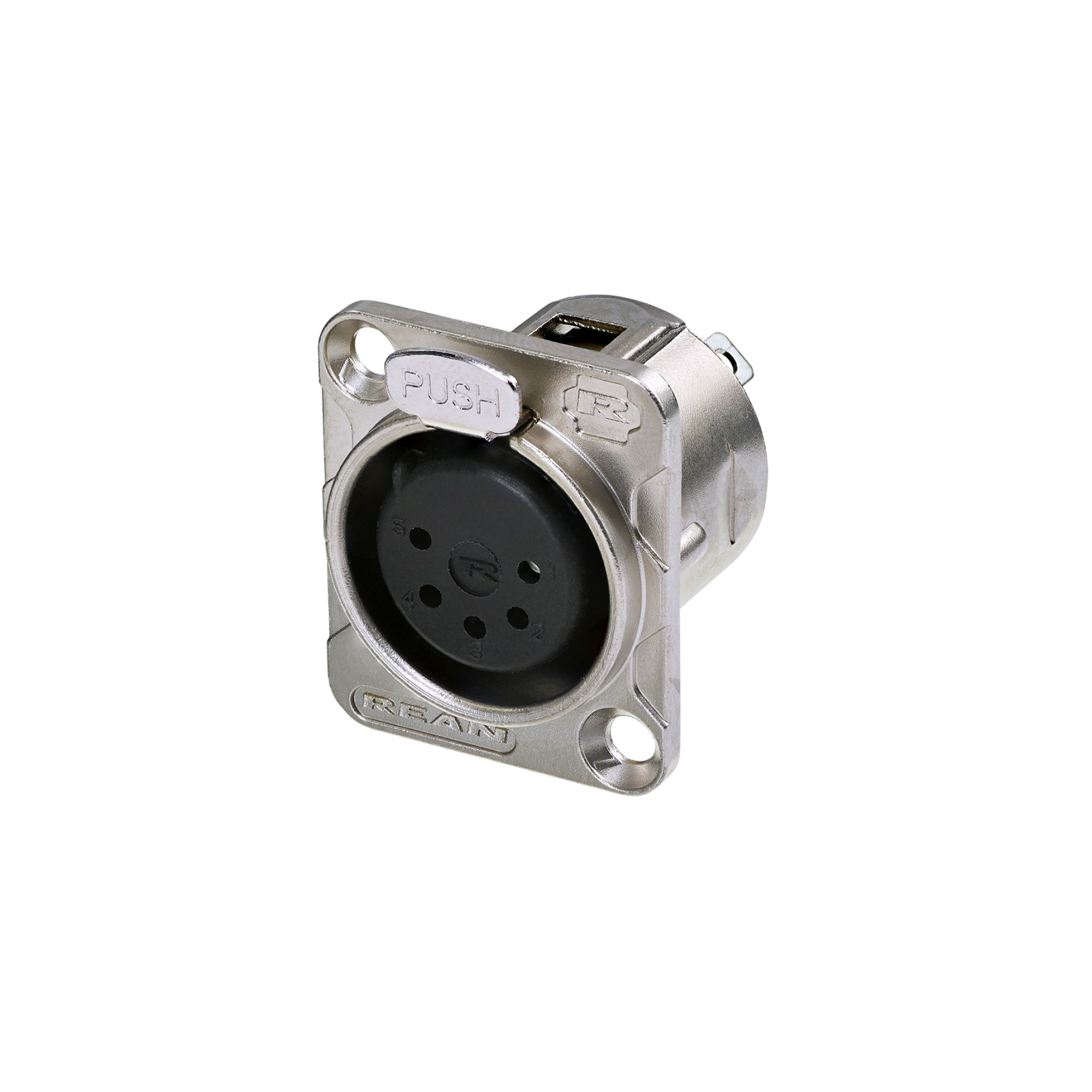

The XLR-5 Female Rean by Neutrik RC5FDL connector is a high-quality 5-pin panel mount connector featuring nickel-plated housing and tin-plated contacts, ensuring reliable and stable connections. It is equipped with a steel latch for additional strength and protection against accidental disconnection. Thanks to the D-type flange, this connector is easy to install on a panel.
Technical Information
Electrical Characteristics
| Insulation Resistance | >1 GΩ |
|---|---|
| Contact Resistance | ≤5 mΩ |
| Rated Current | ≤10 A |
Mechanical Characteristics
| Lifetime | >1000 mating cycles |
|---|---|
| Insertion Force | ≤20 N |
| Withdrawal Force | ≤20 N |
Material
| Ground Contact | Bronze |
|---|---|
| Jack | Brass |
| Housing | Zinc |
| Latch | Steel |
| Spring | Steel |
| Plastic Body | PA6+30%GF |
| Ground Contact Plating | Tin and Cerium |
| Jack Plating | Tin and Cerium |
| Housing Plating | Nickel |
| Latch Plating | Nickel |
