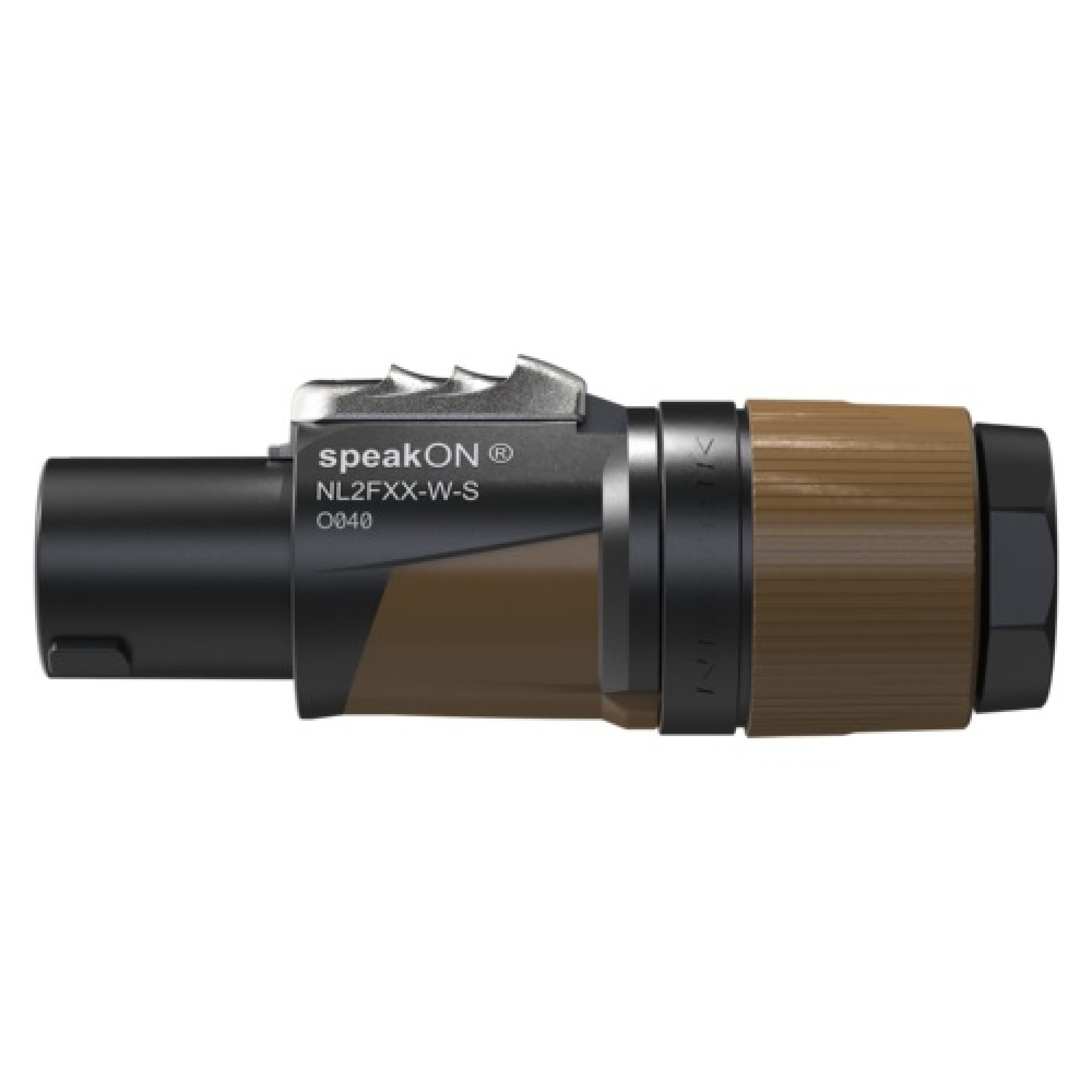

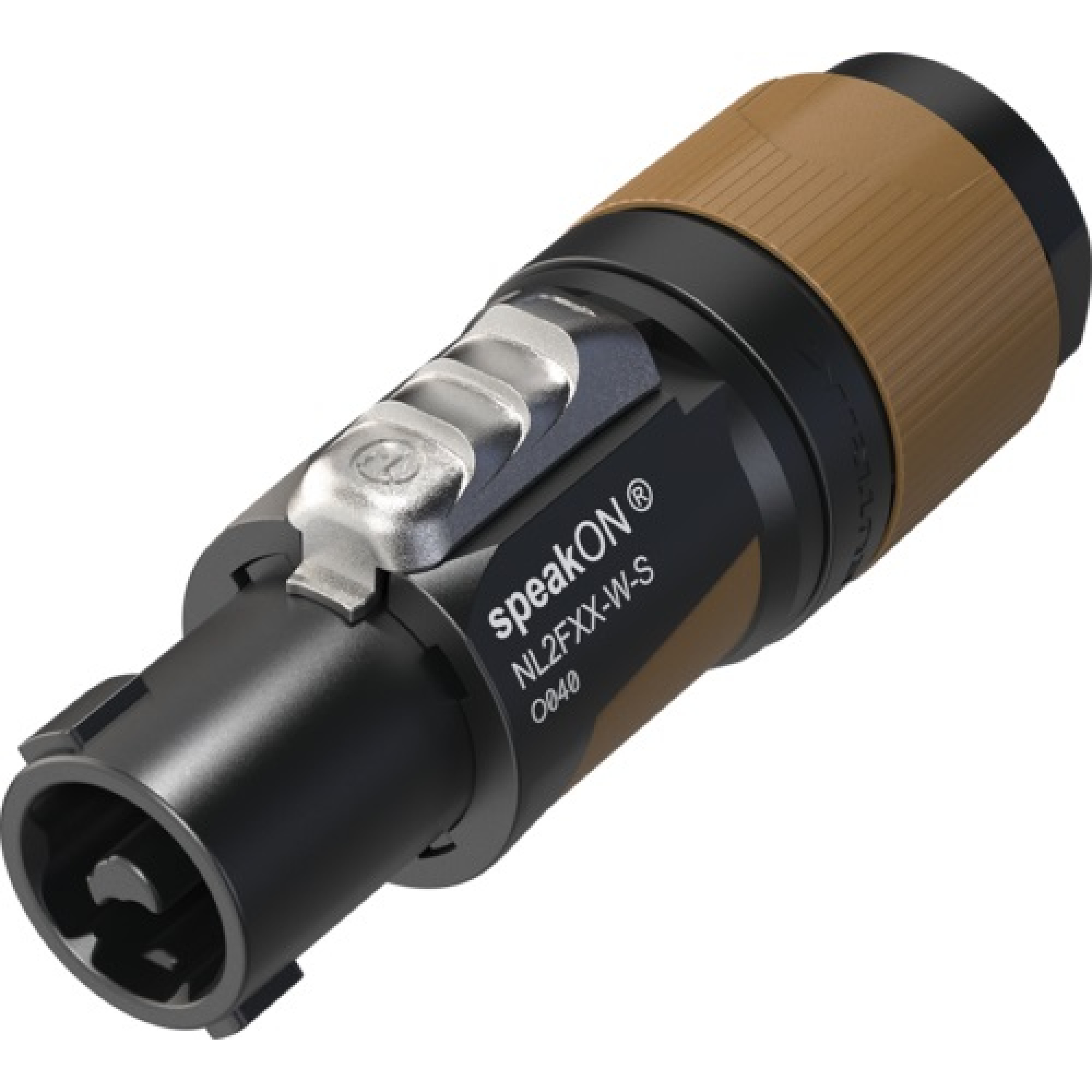

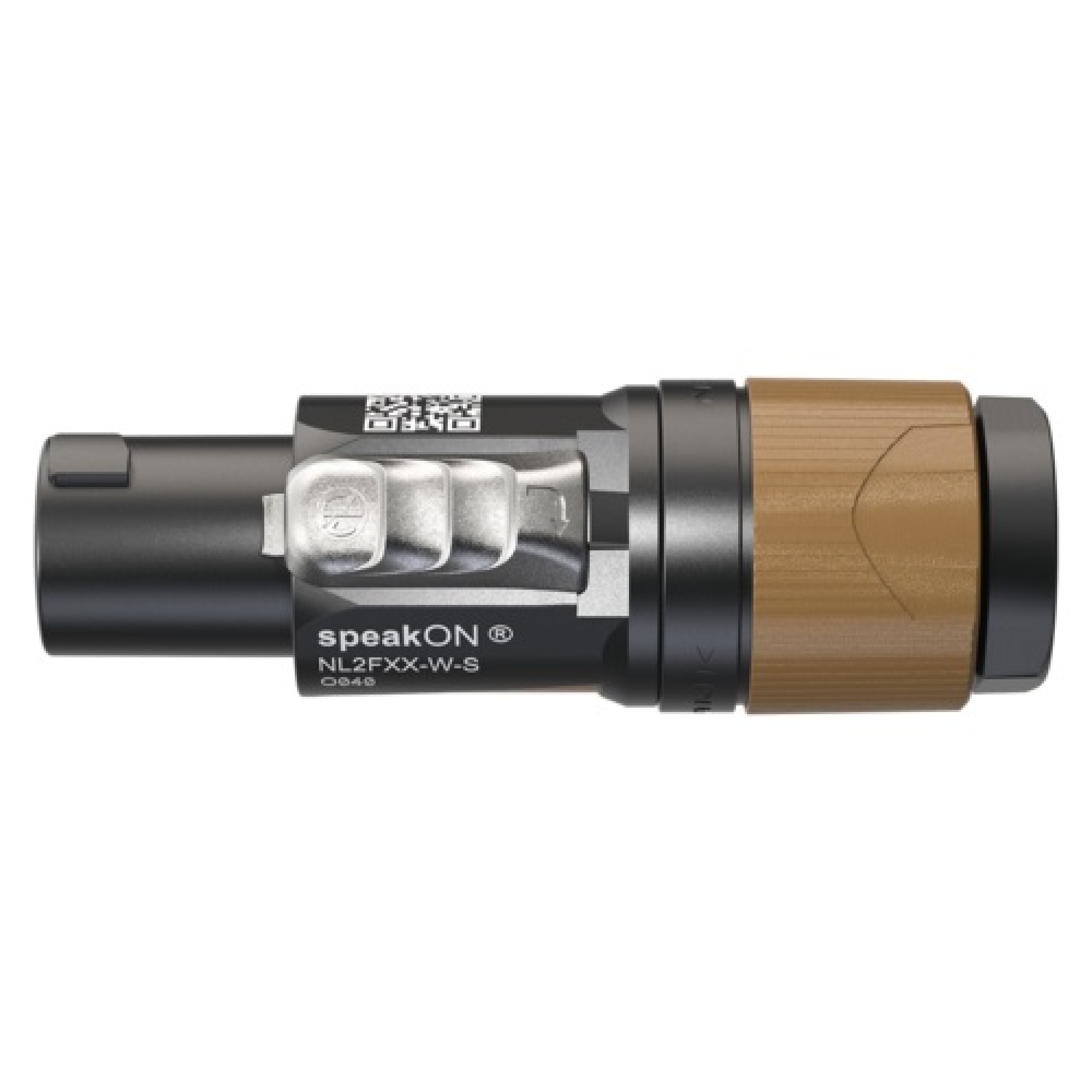

The SpeakON Neutrik NL2FXX-W-S connector is a two-pole cable plug with a locking mechanism designed for cables with a diameter of 6 to 12 mm. This connector is ideal for connecting acoustic systems as it meets high standards of reliability and durability. It features an ergonomic design with a two-component housing that ensures a secure grip and prevents slipping during installation. It provides resistance to high currents (up to 37 A rms) and is certified according to the international standard IEC 61984.
This product is strictly not intended for use as an AC mains or power supply connector! CAUTION: NOT FOR INTERRUPTING CURRENT
Technical Information
Electrical Characteristics
| Contact Resistance | ≤ 2 mΩ |
|---|---|
| Dielectric Strength | 2.8 kV AC |
| Insulation Resistance | > 10 GΩ (initial) |
| Number of Electrical Contacts | 2 |
| Certification | IEC 61984: 37 A 250 V AC |
Mechanical Characteristics
| Cable Diameter | 6 – 12 mm |
|---|---|
| Service Life | typically 5,000 connections |
| Conductor Size (mm²) | 1.5 – 4 mm² |
| Conductor Size (AWG) | 17 – 11 AWG |
| Locking | Reverse locking |
| Termination | Screw terminals |
Materials
| Contact Plating | Ag (silver) |
|---|---|
| Contacts | Copper alloy |
| Insert | Polyamide (PA6.6) |
| Locking Element | Zinc alloy |
| Housing | Polyamide (PA6) / TPE |
| Strain Relief | Polycarbonate |
| Boot | Polypropylene / TPE |
Environmental Characteristics
| Temperature Range | -33 °C to +80 °C |
|---|---|
| Protection Class | IP20 |
| Flammability Rating per UL94 | V-0 |
