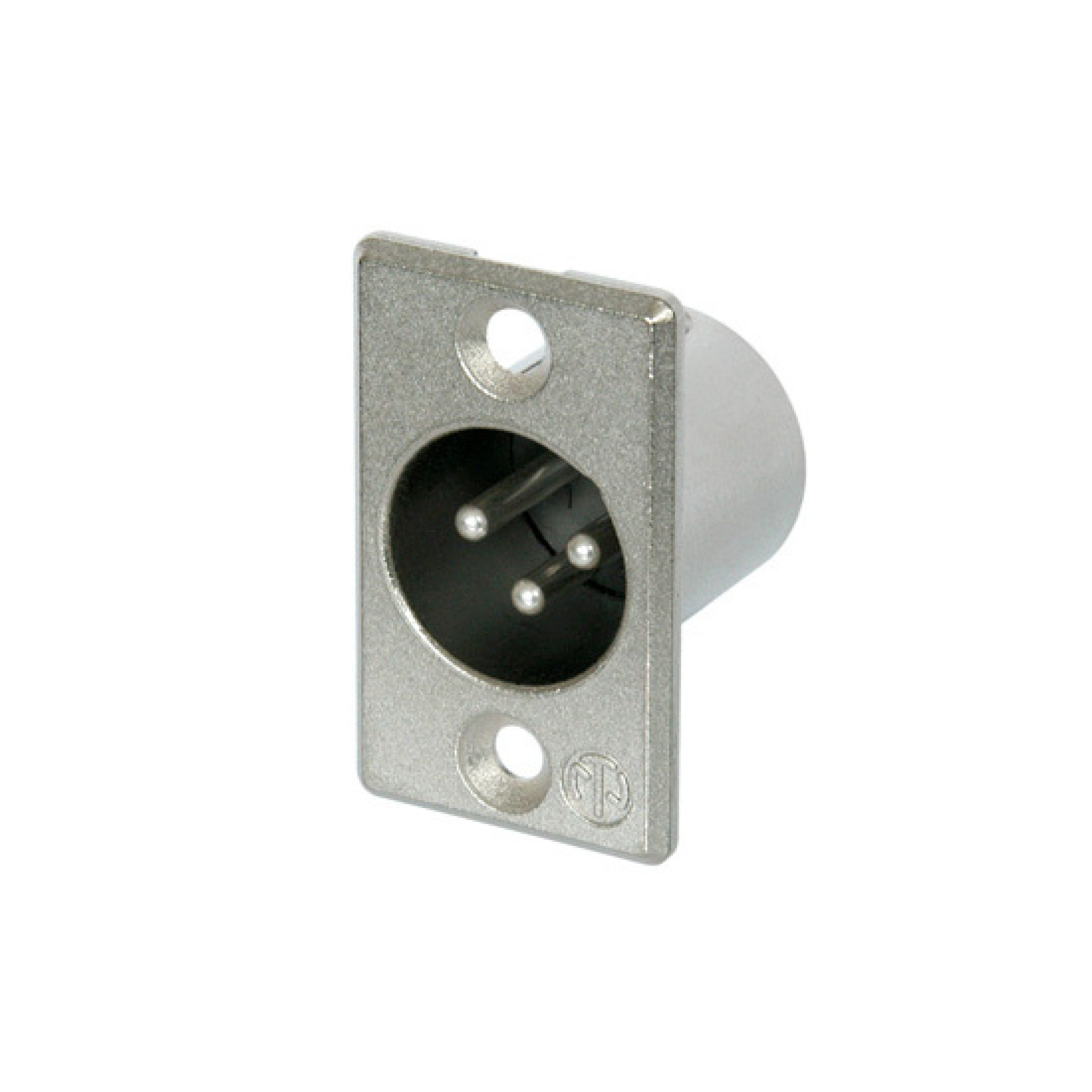

3 pole male receptacle, solder contacts, Nickel housing, silver contacts.
Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.
Features & Benefits
- Smallest available hard wiring receptacles with large solder cups
- Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
- Connection Type: XLR, 3 pole male
- Electrical
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 5 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 6 A
- Rated voltage: < 50 V
- Mechanical
- Insertion force: ≤20 N
- Withdrawal force: ≤20 N
- Lifetime: >1000 mating cycles
- Locking device: Latch lock
- Mounting direction: front mounting
- Chassis shape: P
- Material
- Contact plating: 2 µm Ag over 2 µm Ni
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Steel Ck67
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Environmental
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
