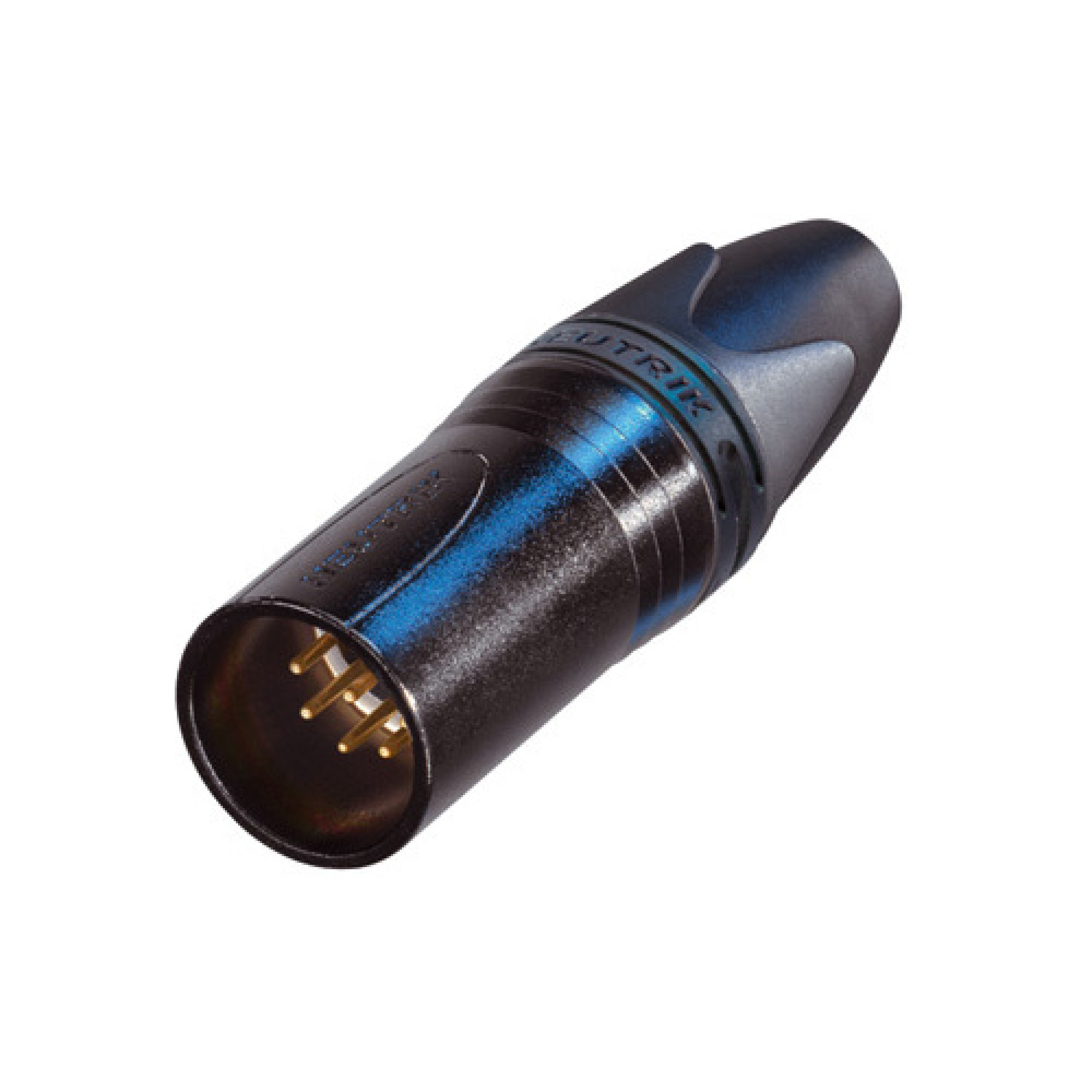

7 pole male cable connector with black metal housing and gold contacts

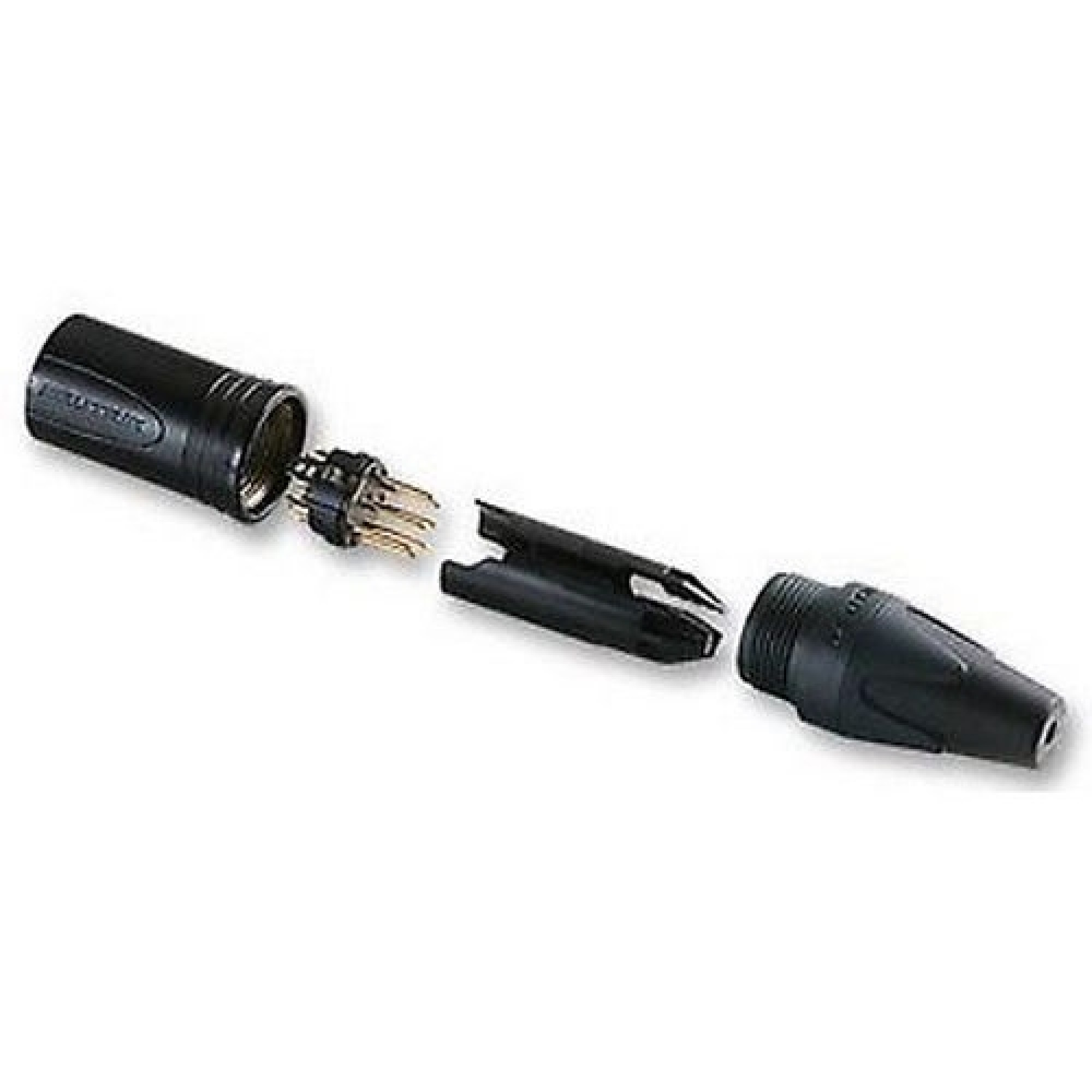

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features & Benefits
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
- Connection Type: XLR, 7 pole male
- Electrical
- Capacitance between contacts: ≤ 9 pF
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 5 A
- Rated voltage: < 50 V
- Mechanical
- Insertion force: ≤20 N
- Withdrawal force: ≤20 N
- Lifetime: >1000 mating cycles
- Wiresize: max. 1.0 mm² (18 AWG)
- Locking device: Latch lock
- Material
- Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Zinc diecast (ZnAl4Cu1)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium
- Environmental
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
