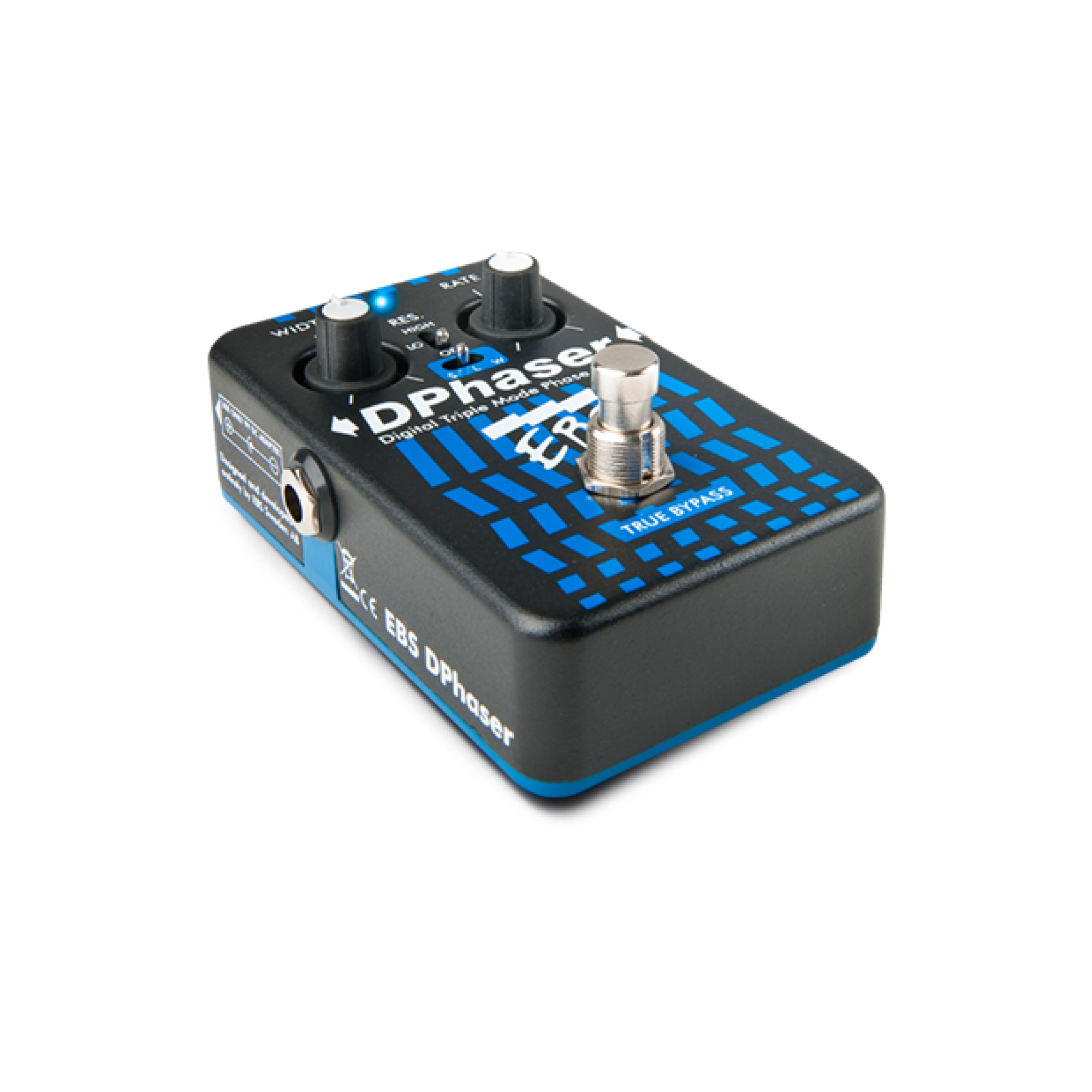

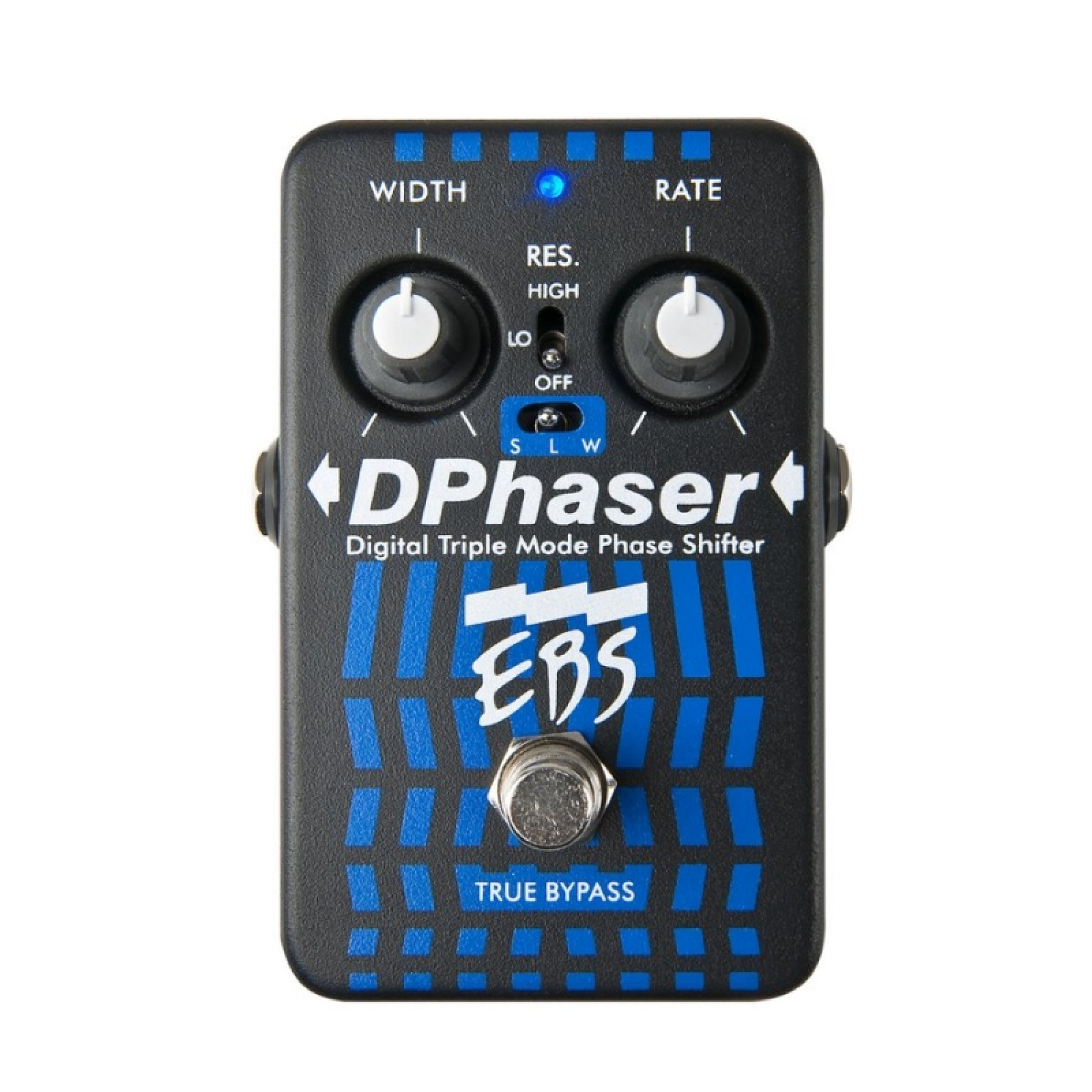

Bass Guitar Effects Pedal EBS DPhaser (discounted)

Attention! The pedal is reduced in price due to its use on demo stands, as well as through the absence of a box.

A regular version is also available.

The EBS DPhaser offers three very distinct and different phaser effects. Select everything from classical 70’s sound up to hyper modern swarling effects.

From the 70's to the 21st Century! The DPhaser offers three different modes of stunning phaser effects. Short is the classic phaser effects recognized from the 70's, Long emphasize the effects a bit more, while Wide gives you extrem swirling flanger-like effects.

Hi, Lo and Off decides the resonance of the effect while the two controls change the width and rate.

Under the hood. In addition you can set a lot of parameters inside the box for fine tuning your sound. These controls include setting the centre frequency for the sweep controlled by the Width knob, adjusting the gain for the output signal to prevent signal loss, settings for bypass and types of effects (further explained in the manual).

Digital technique - analog sound. The pedal is built with the highest quality components and uses 24-bit digital processing circuitry for outstanding performance on stage and in the recording studio. While the pedal offer juicy analog sound, the use of digital technique makes it possible to fit in the compact format that the Black Label Pedals offer.

Specifications

• Nominal input level: - 8 dBV
  Input impedance: 700 kOhm
  Bypass Range: +/- 3 dB, 20 Hz - 20 kHz
• Phaser types
  • Short (S): 4 or 6 steps
  • Long (L): 8 or 10 stops
  • Wide (W): 18 stops
• LFO range: Min / Max 0.05 - 10 Hz
• LFO types: Sinusoidal and Triangular
• Sampling frequency: 48 kHz
• Dynamic Range: 100 dB A-weighted
• Bypass: Cold
• Power: DC 9 V, up to 110 mA *

* EBS Recommend the use of the EBS AD-9+ DC adapter. The adapter can supply up to twenty pedals at the same time.

Download User Manual
