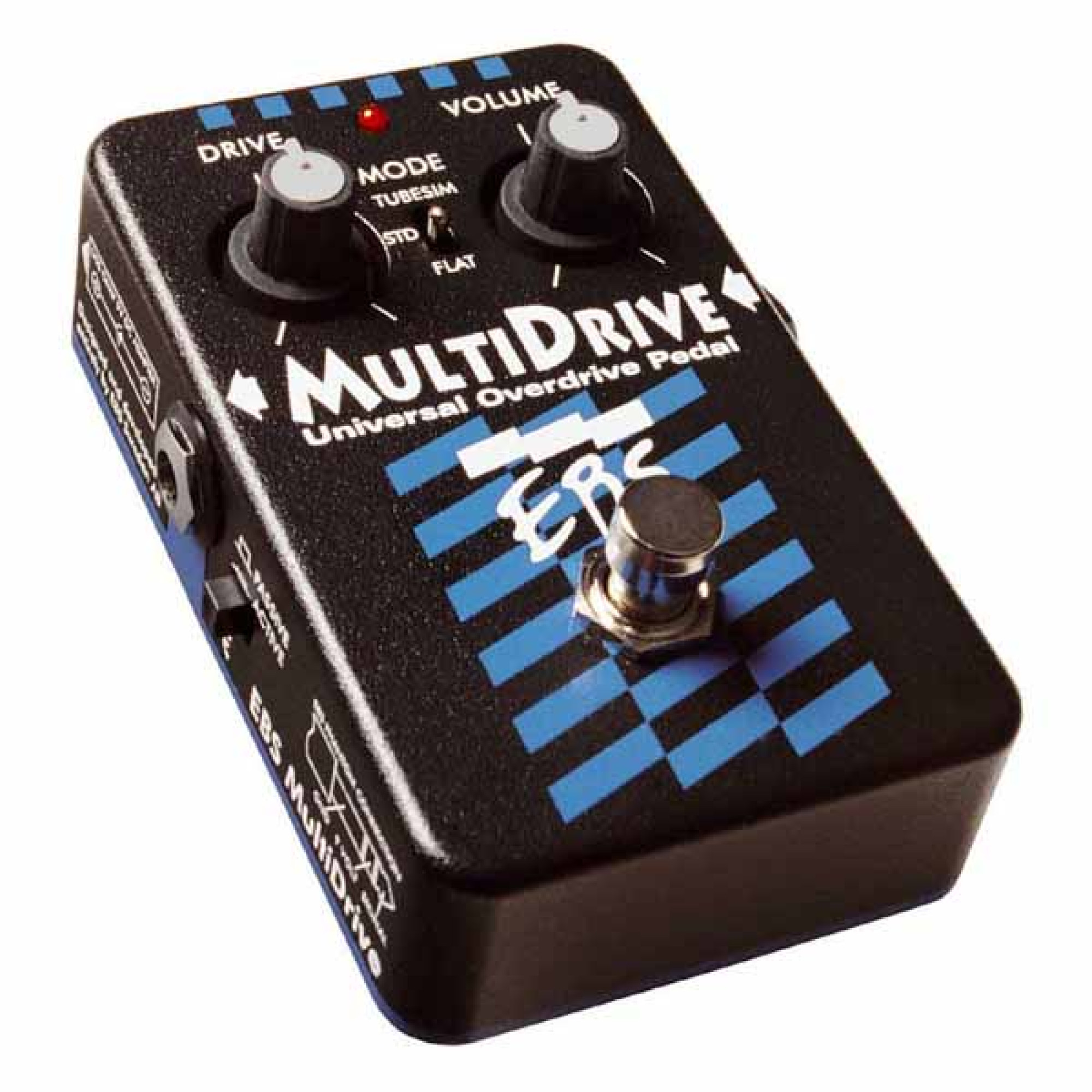

Bass Guitar Effects Pedal EBS MultiDrive

The EBS MULTIDRIVE is a 'class A' overdrive pedal, capable of producing sustain, overdrive and many other useful 'tube amp' distortion sounds.

Spice up your sound! The MultiDrive is considered an overdrive, more than a distortion pedal. The mode switch selects Tubeism, Standard or Flat overdrive type sounds. All with a preserved bottom since the pedal let through the low frequencies untouched and solid. With guitar, it provides a slightly overdriven bluesy tone with lots of sustain and body. This is the pedal to spice up your sustain!

Evolution. The MultiDrive was first introduced in 2001. The 2008 edition improvements added 3 dB higher headroom, higher sensitivity and new analog circuitry with higher dynamics and lower noise, as well as true bypass switching technique.

Technical Information

• Nominal Input Level: -8 dBV (active) -20 dBV (passive)
• Input Impedance: 700 kOhms
• Dry Bandwidth: +/- 3 dB, 20 Hz - 20 kHz
• Effect Bandwidth +/- 3 dB, 35 Hz - 12 kHz
• Dist gain range: 0 - 60 dB
• Power Requirements: 9 V DC Regulated, 18 mA max.

*EBS Recommend the use of the EBS AD-9+ DC adapter. The adapter can supply up to twenty pedals at the same time.

Download User Manual
