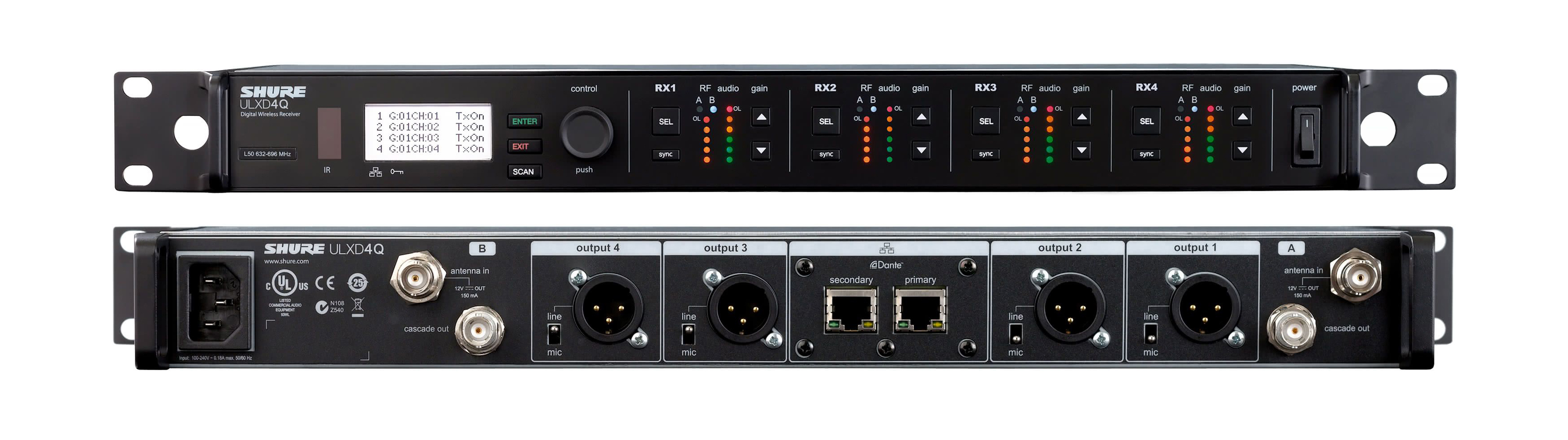

Wireless Receiver Shure ULXD4QE-K51

The Shure ULXD4Q is a digital wireless receiver that provides an intelligent 4-channel option for use in any professional sound reinforcement system. The rugged yet lightweight and compact all-metal chassis houses independent receivers, each with its own audio and RF meters, gain control, and outputs that can be either direct or summed for flexible signal routing. With an RF cascade and two Ethernet ports, devices can easily exchange RF signal and network for easy coordination and frequency deployment. Audio signal summing allows the receiver to be used as a 4-channel mixer. The receiver is ideal for professional sound reinforcement in large concert venues, as well as in conference rooms, educational and corporate institutions. Compatible with a wide range of transmitters, it delivers pure 24-bit/48kHz digital audio, capturing every detail with clarity, accurate bass reproduction and crisp transient response. ULX-D uses Diversity Digital Predictive Switching to protect transmission from interference, ensuring radio signal stability without audio artifacts. When using more compatible frequencies over short distances, you can enable High-Density mode, which greatly increases the number of open frequencies available.

Note: When purchasing individual wireless components, please check their frequency bands to ensure proper system operation. Shure ULXD4QE-K51 operates in the frequency range 606 - 670 MHz.

Features

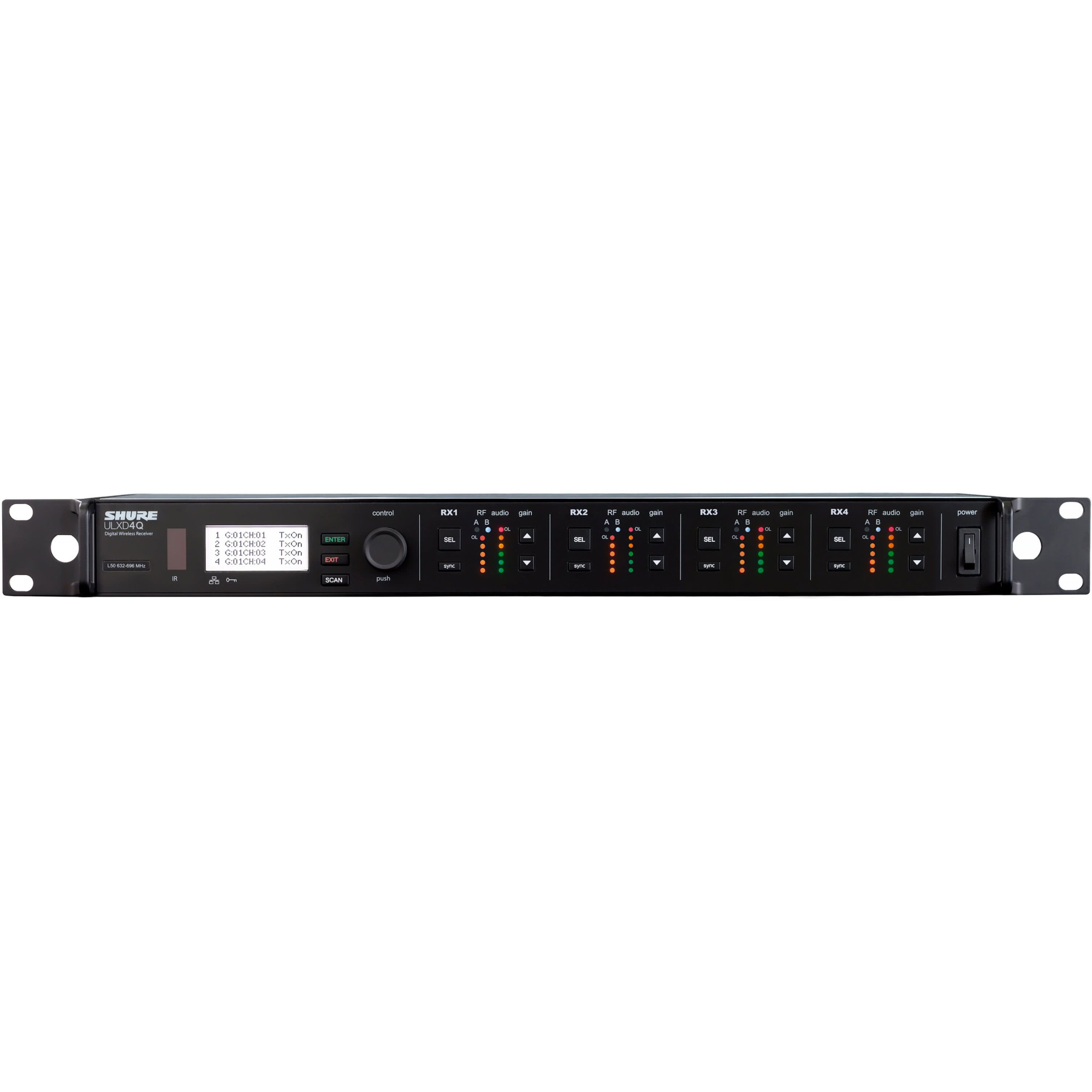

• Four receivers in a rugged 1RU metal chassis with internal power supply
• Individual gain controls, LED meters, and XLR outputs for each channel
• Up to 64 MHz tuning range (region dependent)
• Digital predictive switching diversity
• High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters

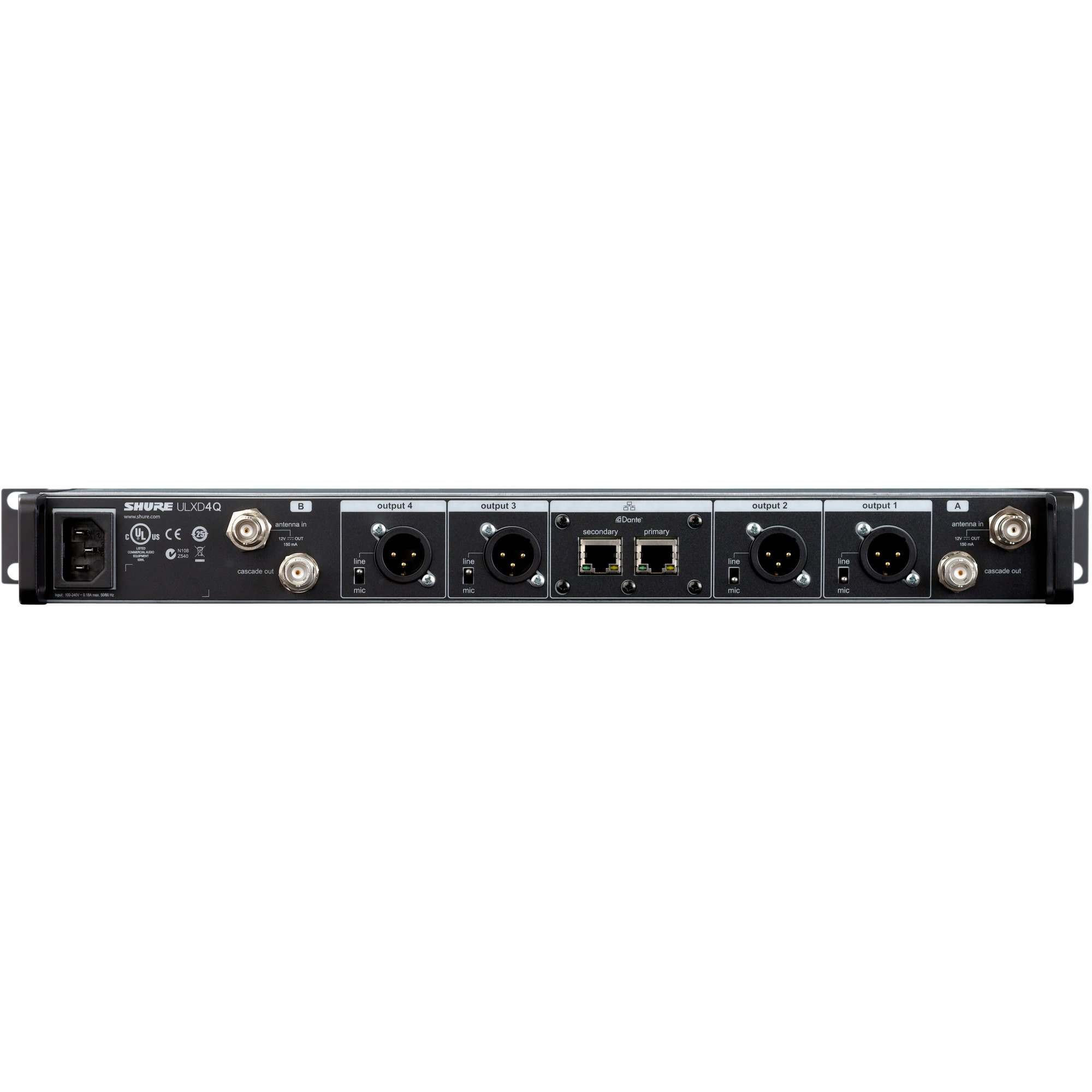

• RF cascade ports allow distribution of RF signal to another unit
• Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
• Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
• AES 256-bit encryption-enabled for secure transmission
• Audio summing routes two or more audio channels to combinations of receiver outputs. Use each channel’s gain adjustment to reach the desired mix.
• Dante digital networked audio over Ethernet
• Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
• Interference detection and alerts provided on both the receiver and WWB6
• Up to 60 dB independently adjustable gain for each channel
• Wireless Workbench 6 (WWB6) software integration for advanced coordination, monitoring, and control
• AMX/Crestron control
• Compatible with the AXT600 Axient Spectrum Manager
• Yamaha device ID allows simplified channel patching on CL consoles
• Intuitive front panel LCD menu and controls with lockout feature
• Upgraded LCD with adjustable contrast and brightness
• Audio and RF LED meters with peak indicator
• Switchable mic/line output level
• Remoteable ½ wave antennas
