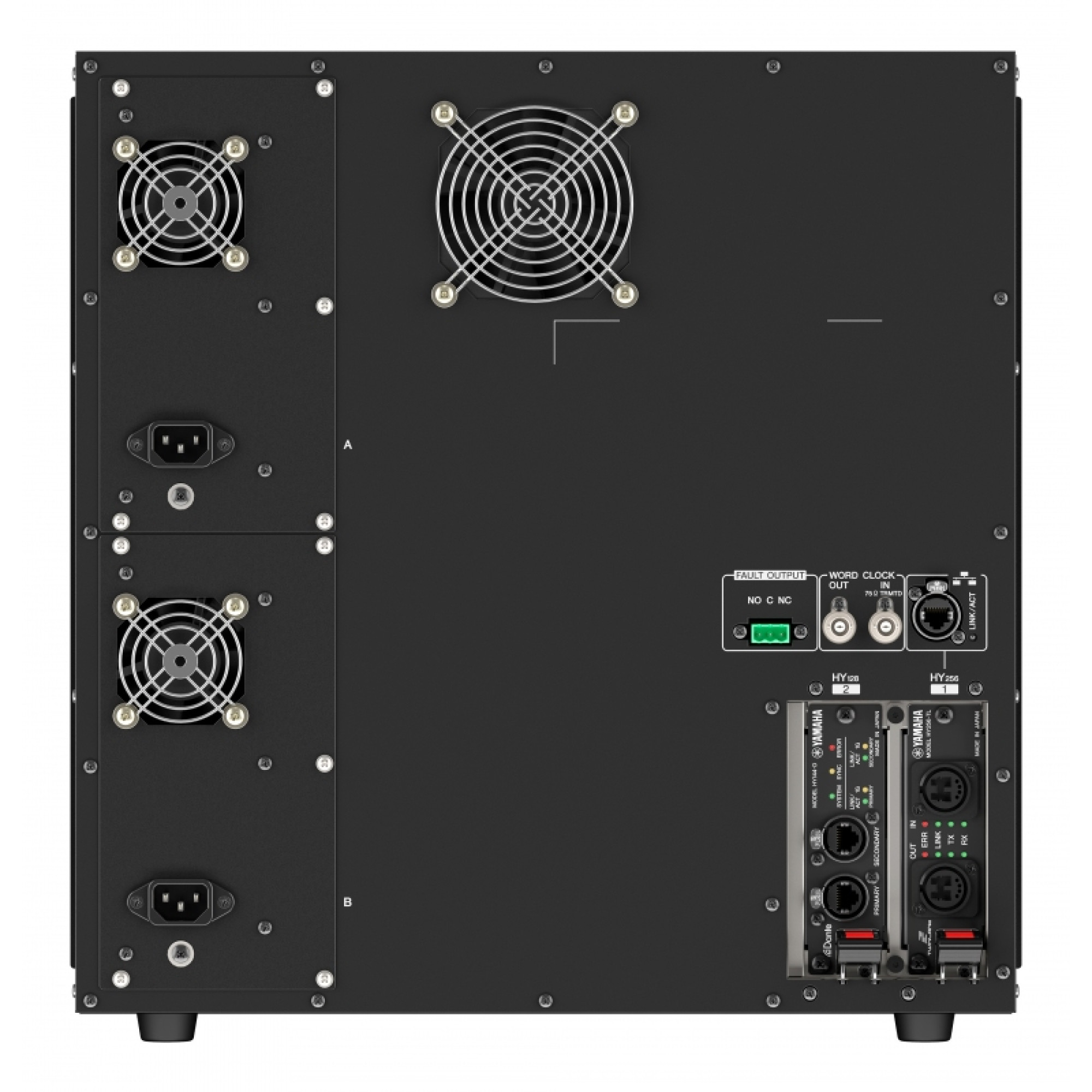

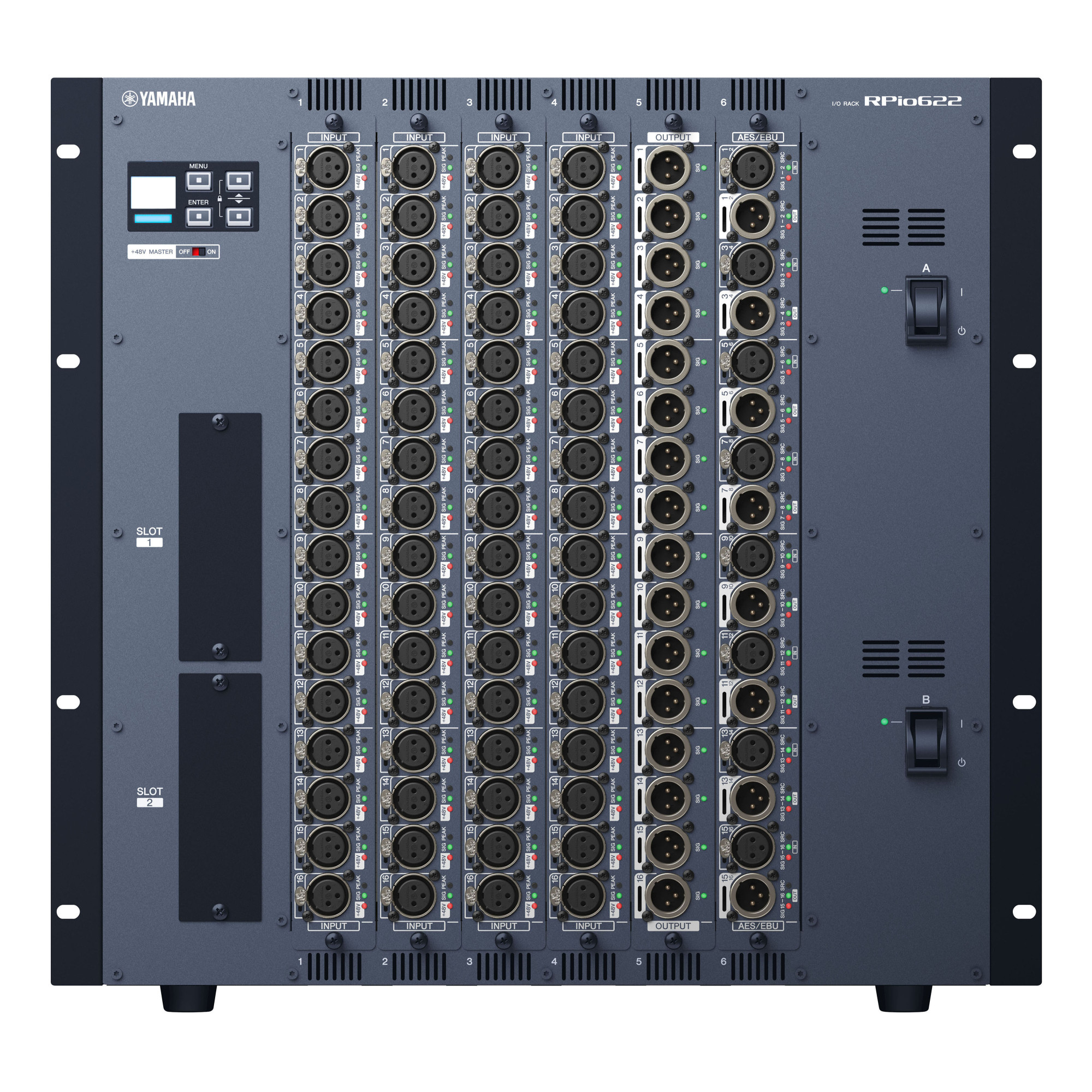

The Yamaha RPio622 is a device designed to flexibly configure and expand the input and output capabilities of Yamaha's RIVAGE PM10 system depending on application needs or system scale. This interface is equipped with six RY slots, which allow you to expand analog and digital inputs/outputs, as well as two HY slots, which can transmit and receive up to 256 channels of digital audio and control signals. The first HY slot supports 256 channels, and the second - 128 channels. Two mini-YGDAI slots are also available to support a variety of audio formats.
To ensure reliable system operation, the RPio622 provides a dual redundant power supply. This means that if there is a problem with one power source, you can continue to use the rack with another power source.
The rack measures 480 x 455 x 489.7mm and weighs approximately 30kg, suitable for a 10U rack format. Thanks to these characteristics, the RPio622 becomes a powerful tool for expanding the possibilities of your audio system, reliable and flexible in use.
Features
- 6 RY slots to install analog/digital inputs/outputs
- 4 slots for HY cards with the ability to transmit/receive up to 256 input/output channels of digital audio and control signals
- HY slot 1 provides 256 I/Os, HY slot 2 provides 128 I/Os
- 2 slots for Mini-YGDAI cards
- Dual redundant switching power supply
