Mixing Console For DJ Pioneer DJM-A9

Pioneer is a leading manufacturer of audio and DJ equipment, known for its innovative technologies, high sound quality and reliability. The company manufactures a wide range of products, including DJ controllers, mixing consoles, speaker systems and audio interfaces. Technological innovations and high professionalism make Pioneer a popular choice among DJs and audiophiles around the world.

A 4-channel mixer with impressive capabilities

Pioneer DJM-A9 mixing console for DJs is a real innovation in the club music field. It combines advanced technology with a stylish design and a range of new features to take your performances to the next level. Equipped with 4 channels, an effects processor and a variety of inputs, including USB and Bluetooth, this mixer is designed to meet the needs of professional DJs and provides incredible possibilities for processing audio and creating smooth and creative transitions between tracks.

High quality and reliability

The Pioneer DJM-A9 mixing console is characterized by high quality and reliability of its design. Known for its crystal clear sound quality, it delivers excellent signal transmission with very little distortion or noise. The use of components from the well-known ESS Technology brand in the mixer guarantees high quality audio conversion, which makes the sound clean and clear.

In addition, the Pioneer DJM-A9 is resistant to use in live performances and club events. Its design is designed for intensive use and withstands high loads. Durable materials and professional workmanship ensure a long service life of the mixer even with intensive use.

An impressive selection of connection options

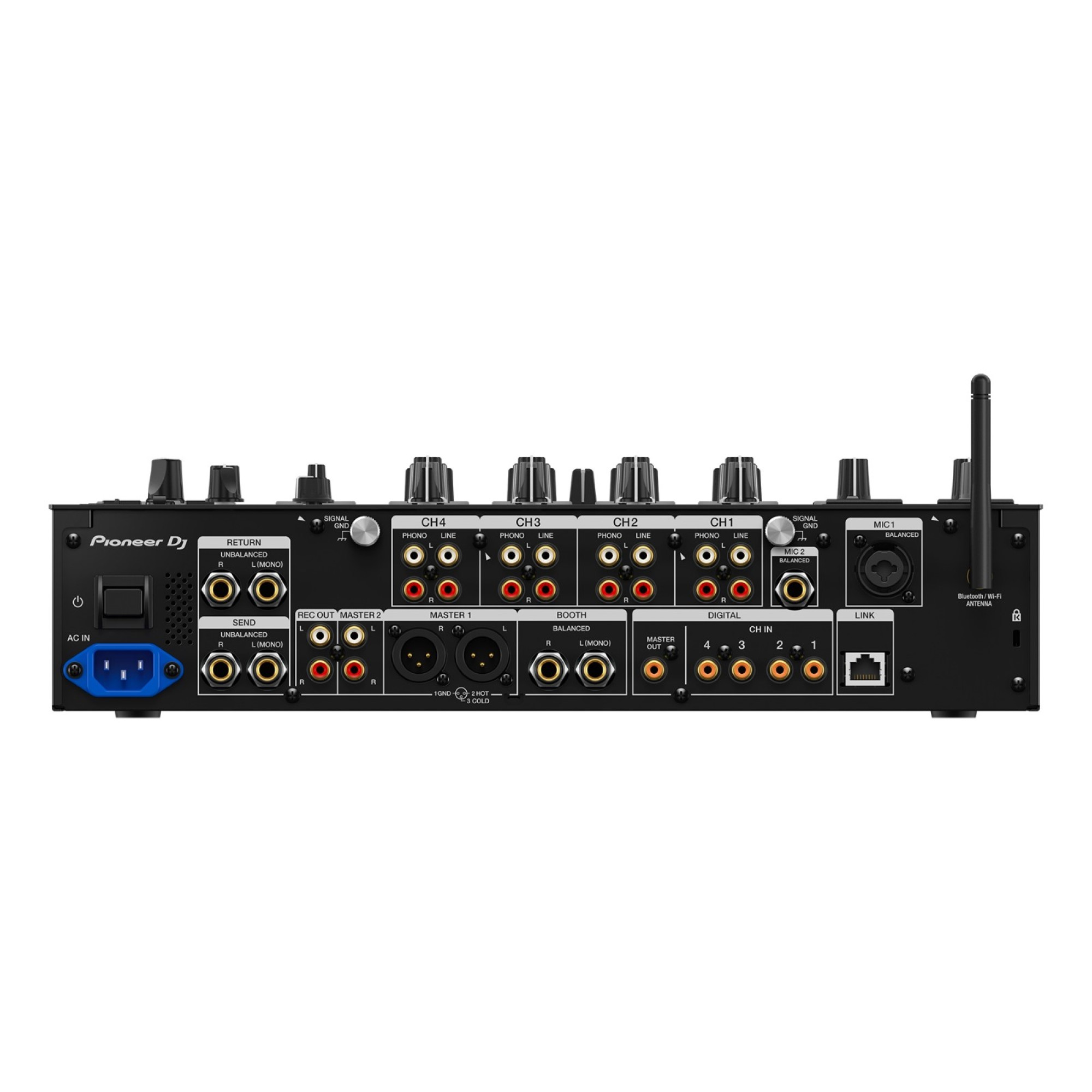

The Pioneer DJM-A9 offers a variety of connectivity options. The main inputs and outputs are located on the back panel, which is convenient for switching and organizing the space. Among the inputs, there are 4 line and 4 phono stereo inputs on RCA connectors, a balanced combination XLR - 1/4" microphone input and an input on a TRS 1/4" connector for a second microphone. Also, the mixer has digital inputs for 1-4 channels and a digital master output.

Among the outputs, the mixer has a main stereo output on XLR connectors, a secondary on RCA connectors, as well as an output for recording the mix. Next to the outputs is the Return/Send section on TS 1/4" connectors for sending audio to external devices.

The mixer provides the ability to connect two different PC/Mac systems at the same time thanks to dual USB Type-B and USB Type-C ports (there are two of each type), allowing for seamless switching between DJs and easy back-to-back sets. In addition, thanks to the built-in Bluetooth® input port, it is possible to wirelessly include audio from other devices, such as smartphones, and use all the functions and effects of the mixer to change the sound. The Multi I/O section has an independent channel selector that allows external effects to be used separately from the Beat FX, giving the DJM-A9 a true send capability.

A variety of connectivity options make the Pioneer DJM-A9 a versatile tool for DJs and musicians, allowing them to efficiently manage sound streams and create unique musical performances.

Convenient control

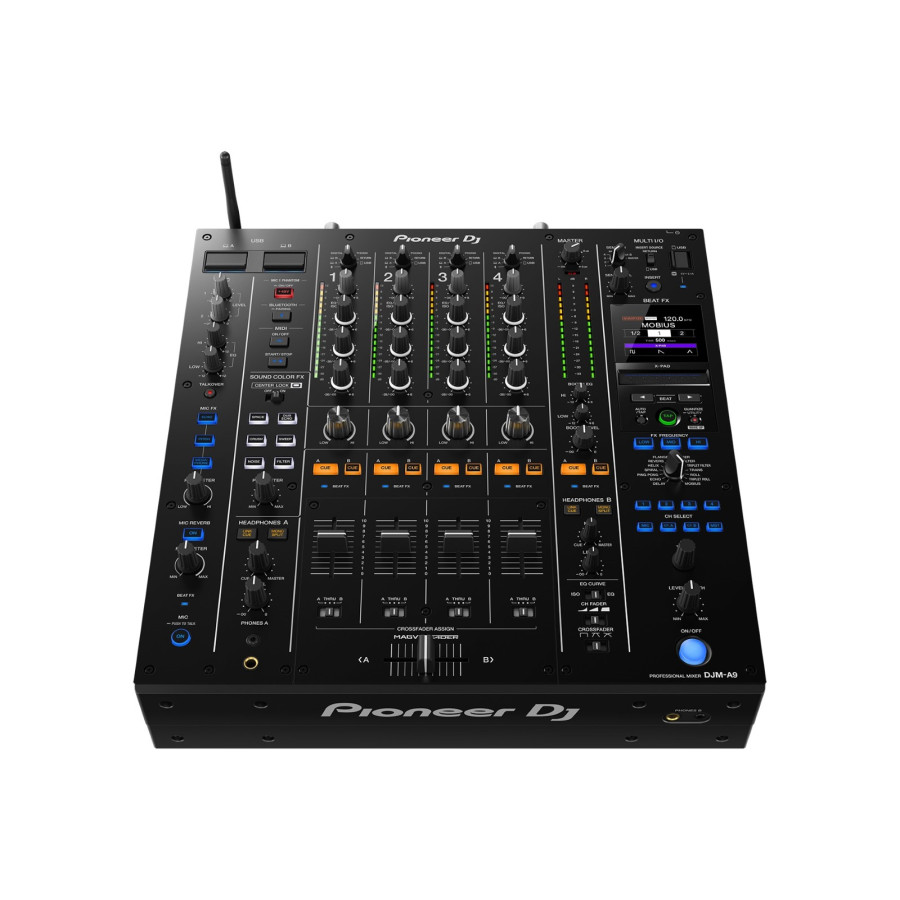

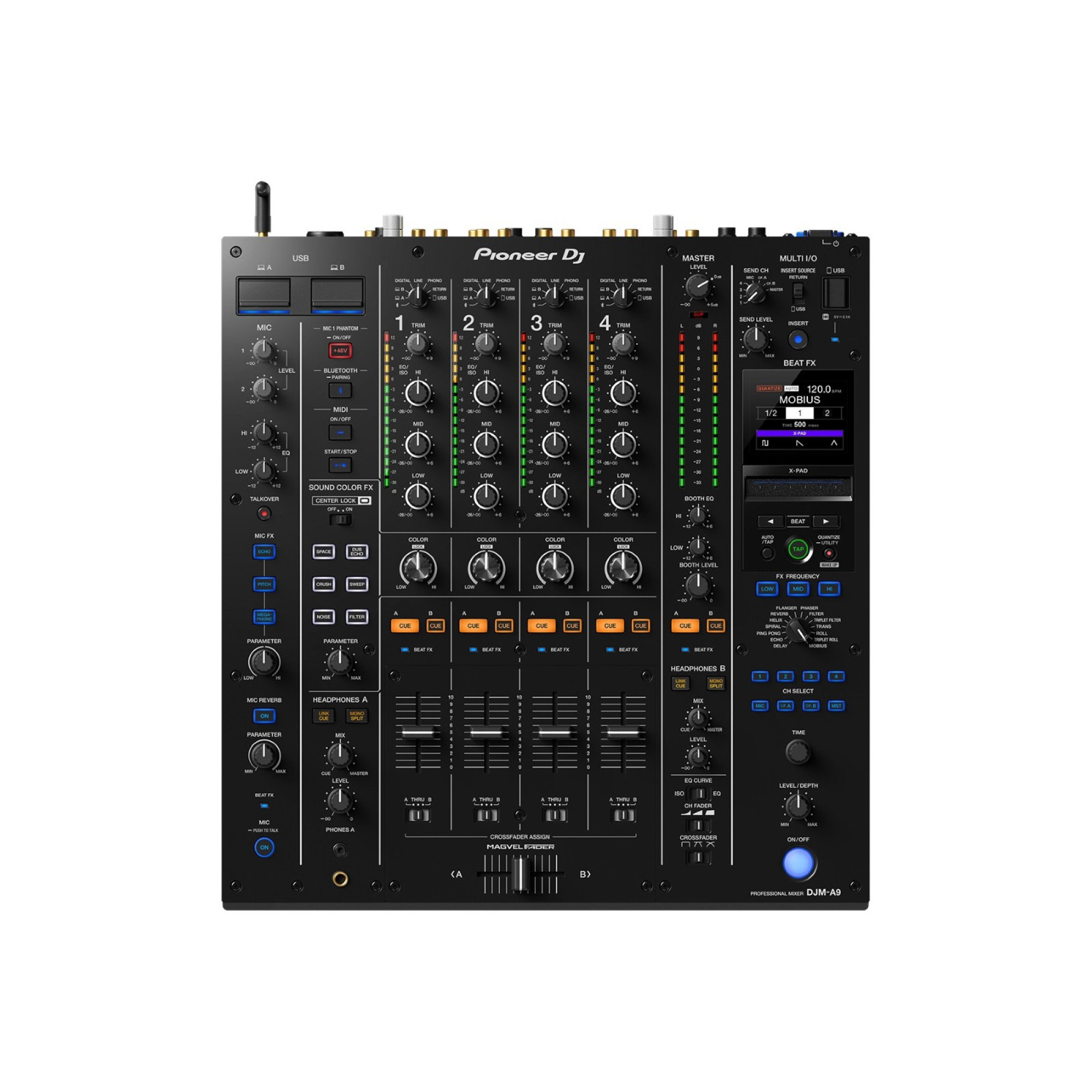

Control elements are located on the top panel and are conveniently grouped into separate sections. In the center is the control of 4 channels and the main master output, on the left are the controls for the microphone signals and the wireless Bluetooth connection, and on the right is the control panel for effects.

Each microphone input has a volume control and 2-band EQ, effects settings such as Echo, Pitch, Mega-Phone, Reverb and Talk-Over. +48 V phantom power is available for the first microphone input, enabling the connection of condenser microphones. The Bluetooth key allows you to wirelessly connect a device that supports this technology. The Sound Color FX section has 6 effects to choose from and an effect level.

Below is the first output for headphones with independent adjustment of the volume and ratio of the signal level of the listening channel and the master channel. A second output with similar controls is on the right, next to the effects panel.

Each channel has a volume control with the possibility of amplification up to +9 dB, the selection of the audio signal source, a 3-band equalizer. Below that is the Color knob for applying Sound Color FX. Two CUE keys on each channel and the master channel allow you to listen to the audio in headphones. Below is the volume fader and the choice of sending the signal to channel A, B or bypassing the crossfader.

For additional control, there are signal level indicators on channels 1-4 and on the master. Below the master channel section is the booth output volume control and 2-band EQ.

The effects control section has a small screen to display basic information, effect selection, tempo, frequency, and channel settings to apply the effect to, as well as time, effect depth, and effect on/off key controls.

Built-in effects processor

As for processing effects, the mixer has a built-in effects processor with a huge palette of programs for processing the audio signal. Effects include Sound Color FX (Space, Dub Echo, Sweep, Noise, Crush, Filter) and Beat FX (Delay, Echo, Ping Pong, Spiral, Helix, Reverb, Flanger, Phaser, Filter, Triplet Filter, Trans, Roll, Triplet Roll, Mobius). Each of these effects has its own unique characteristics that allow you to add variety and depth to musical compositions and create incredible transitions between tracks.

In addition, the DJM-A9 has an FX Frequency function that allows you to control the frequency at which the effects are applied. This allows the sound to be fine-tuned and tailored to a DJ's unique needs and preferences.

Stagehand compatibility

The DJM-A9 mixer is compatible with Stagehand, the industry's first PRO DJ LINK remote control software. With an iPad connected wirelessly to the mixer via a LAN router, the sound engineer can monitor the signal levels and the DJ's use of the mixer controls. This simplifies the setup of the sound system and ensures an unrivaled performance. In addition, the mixer supports work with Recordbox, Serato DVS, DJM-REC software.

Pioneer DJM-A9 mixing console is a true embodiment of advanced technologies and high sound quality. With a variety of connectivity options, it provides incredible flexibility and allows DJs and audiophiles to create unique musical performances. In addition, its reliable construction and resistance to heavy use make it an indispensable tool for professional performers. Additional features such as Stagehand compatibility and a variety of effects make the DJM-A9 the ideal choice for sound management in any environment, from club parties to live performances.

Features

• Four channels for maximum flexibility and creativity in mixing
• Built-in effects processor and a wide range of connectivity options, including USB and Bluetooth
• High sound quality thanks to the use of advanced components and technologies
• Reliable design, designed for intensive use in clubs and live performances
• Ability to connect two PC/Mac systems simultaneously via dual USB ports, allowing easy switching between DJs and performers
• Bluetooth input for wirelessly connecting smartphones and other devices to play audio and apply effects
• Multi I/O section with independent channel selector for using external effects separately from Beat FX
• Stagehand support for remote mixer control via iPad
• Compatible with software such as Recordbox, Serato DVS and DJM-REC for recording and streaming performances
• Convenient control layout and intuitive interface for ease of use in live environments
