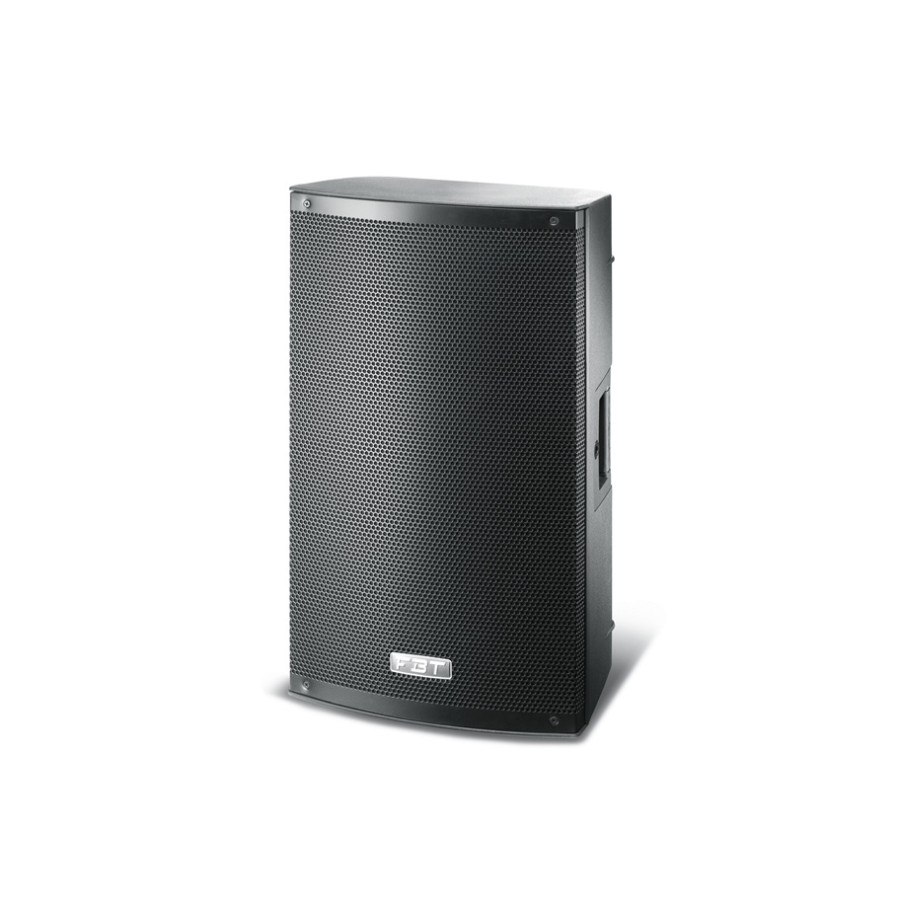

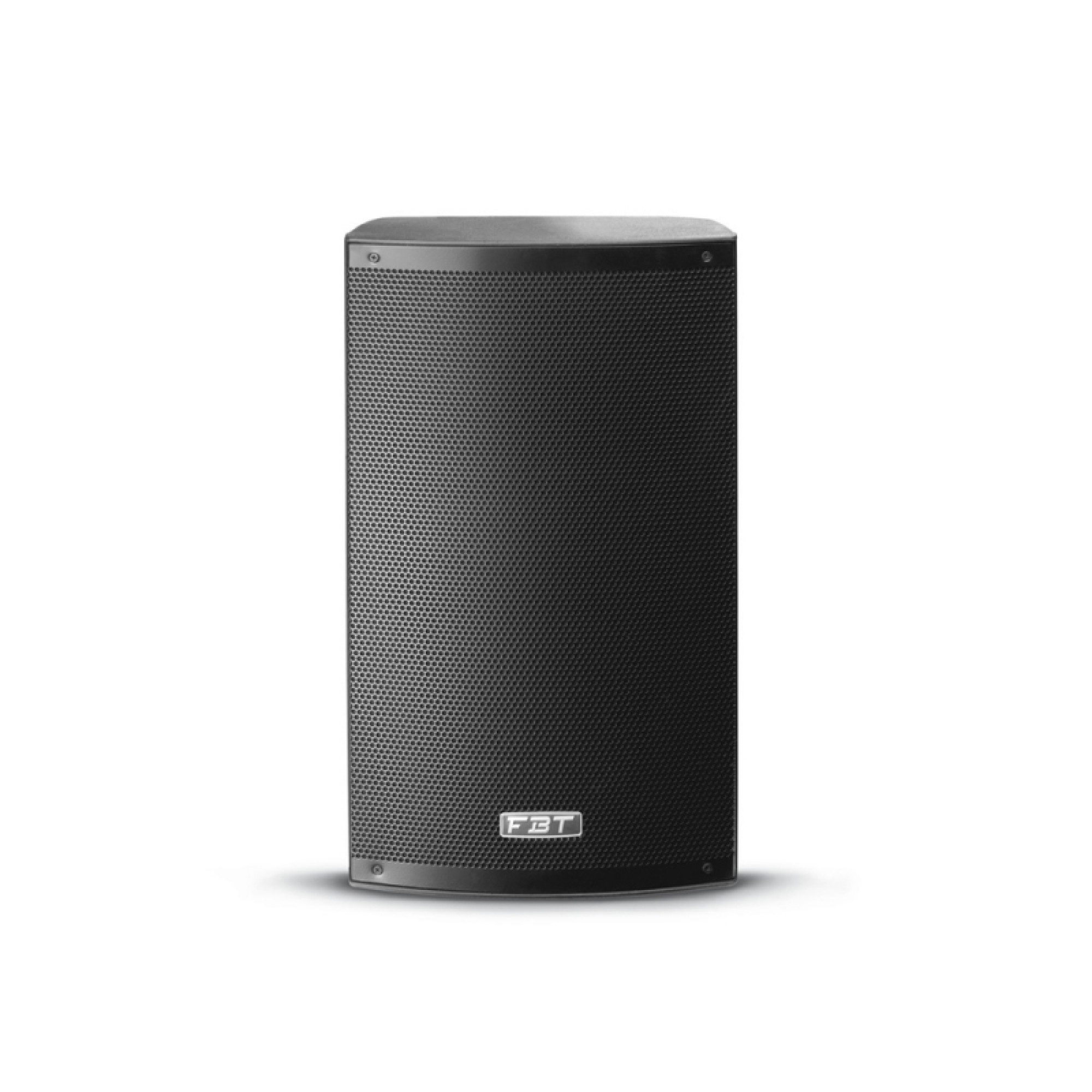

Active PA Speaker FBT X-LITE 10A

Your music, your performance or your installation can count on FBT’s new X-LITE series of portable powered speaker systems.  Constructed out of polypropylene enclosures, the X-LITE series features a sleek design including 3x carrying handles and 4xM10 flying points. In addition, the full front grille provides complete protection, delivering elegance and sturdiness.

Features include built-in Class D amplifier modules providing an amazing 1000W of power to satisfy the most demanding applications, whilst the user-friendly DSP allows 4x EQ preset selection to perfectly tailor the performance of your X-LITE to your sound requirements. In addition, the X-LITE series is truly versatile, offering a professional control panel that allows you to set up configurations with or without subs. Even better – if you do want to extend the  X-LITE low frequency response, you can do so with the dedicated X-SUB 18" powered subwoofer.

The presence of 4 presets managed by DSP allows you to modify the response of the speaker in a much more accurate way compared to standard tone controls. In addition, each preset has been designed and optimized in an anechoic chamber to deliver the best possible performance for each application.

• ORIGINAL/LIVE: the ideal preset for live sound reinforcement
• FLOOR/VOCAL: a preset to transform your X-LITE cabinet for use as a stage monitor or for vocals
• CLUB: a special preset to deliver a rich, deep bass response that stays easy on listener’s ears
• DJ: a preset designed to bring out the best in electronic dance music

Features

• Polypropylene molded enclosure designed to eliminate unwanted resonances
• Custom FBT Speakers with high linear excursion capability and efficiency
• Compression driver with 25mm (1") throat and 35mm (1,4") voice coil
• 1000W, 2-channel amplifier in Class D for LF and in Class AB for HF with a high dynamics response for a pleasant sound at high volume
• Universal switching mode power supply 100-240VAC
• DSP with 4 EQ presets designed to tailor the sound of the speaker to various applications and installation environments
• Advanced algorithms for filtering and equalization which alter the dynamics of the low frequency energy according to the selected preset, allowing distortion-free high SPL performance
• Control panel with XLR input and link out, 6.3mm jack stereo input with volume, stereo RCA input with volume, XLR output selector coupled with stereo/mono, HP filter on/off, mic/line, DSP preset selector
• Integrated mixer with two stereo channels, one channel mic/line input and an output coupled XLR mono / stereo to revive the other channel of the stereo signal to another speaker.
• Integrated handles, M10 rigging points for suspended installation, 35mm stand socket and monitor taper, all included to make the speaker adaptable to any application
• 2-way bi-amplified bass reflex
• FBT Custom 250mm (10") LF woofer with 50mm (2") voice coil
• FBT 25mm (1") throat /35mm (1,4") voice coil HF compression driver
• 58Hz to 20KHz Frequency Response
• 90° H x 60° V constant directivity horn
• 30° monitor taper
