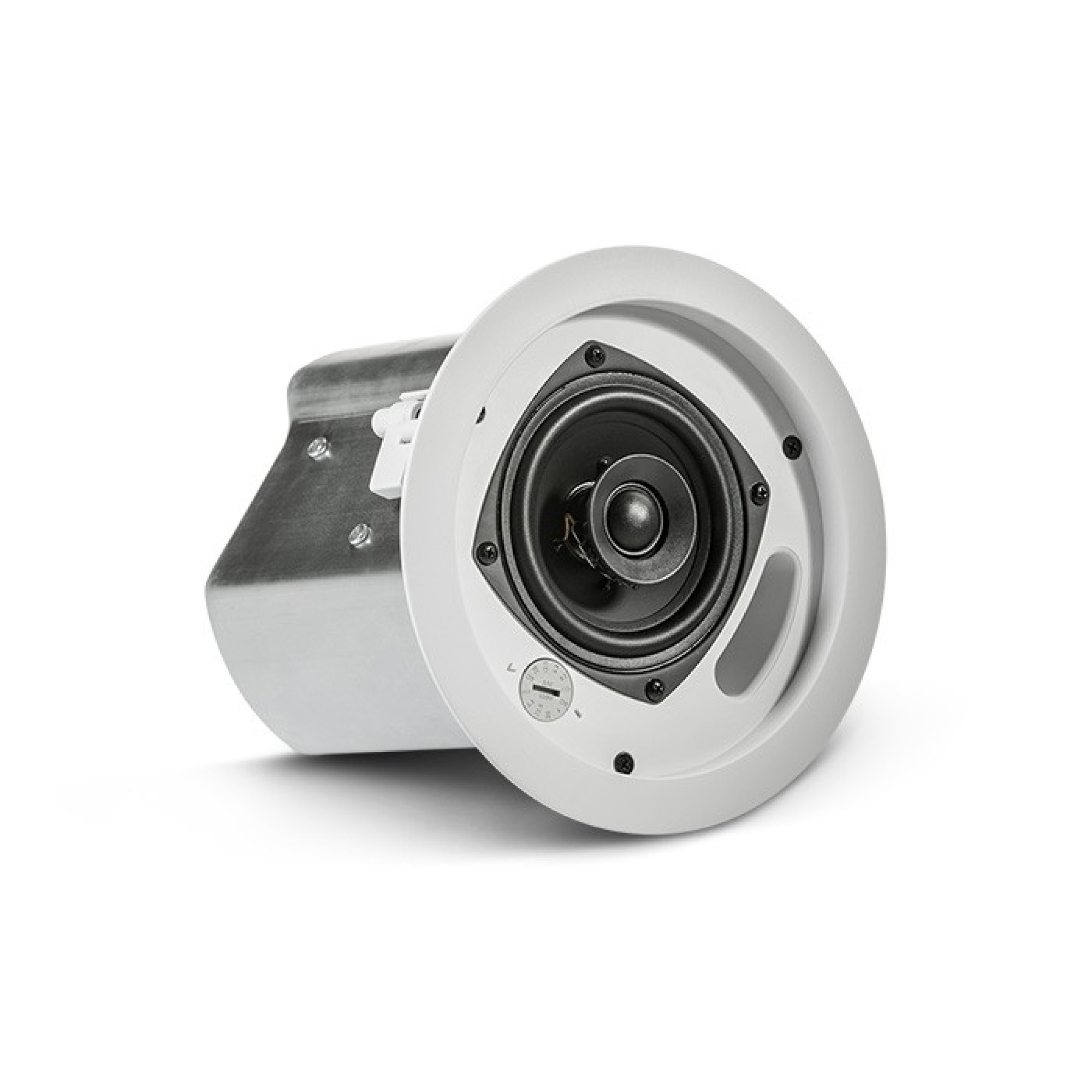

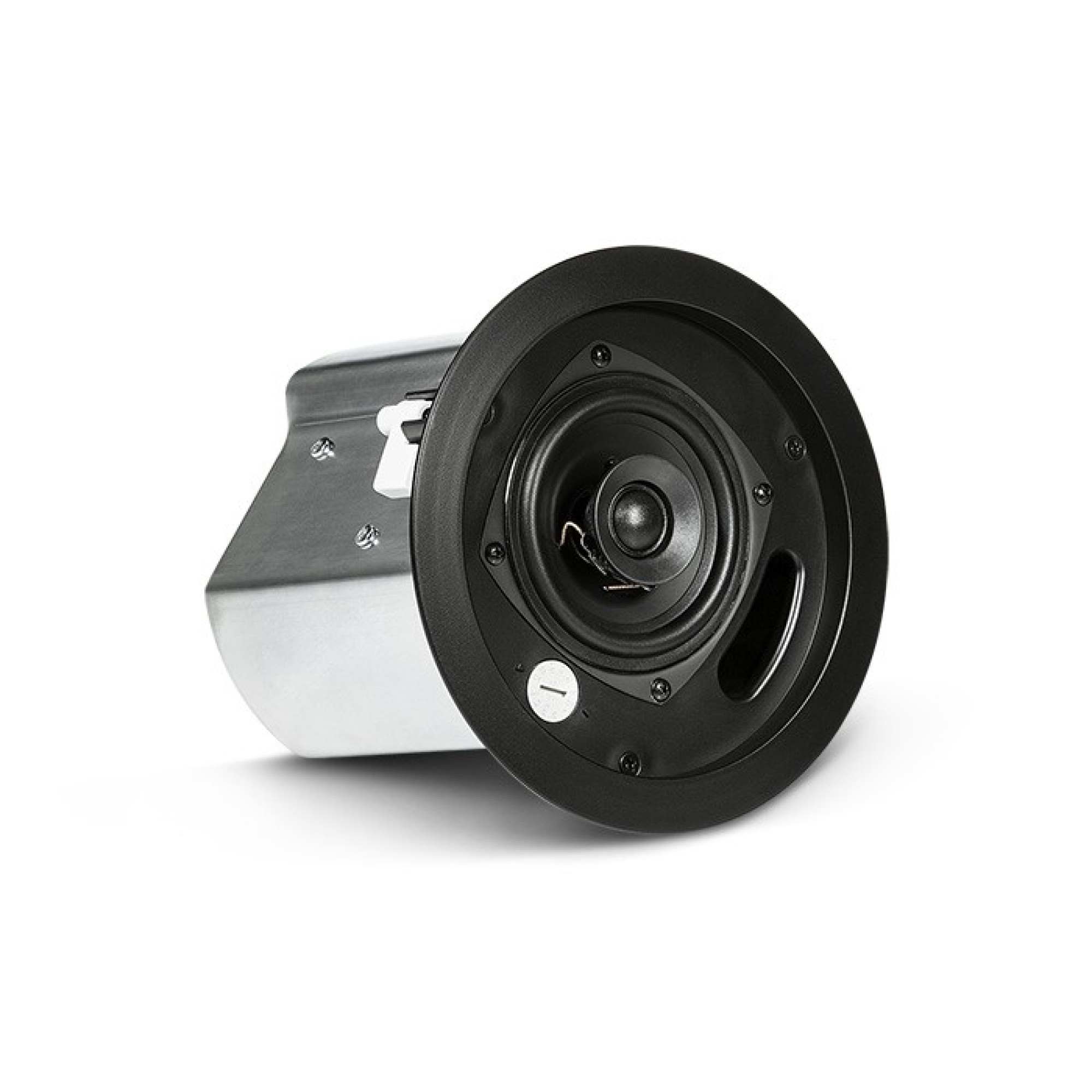

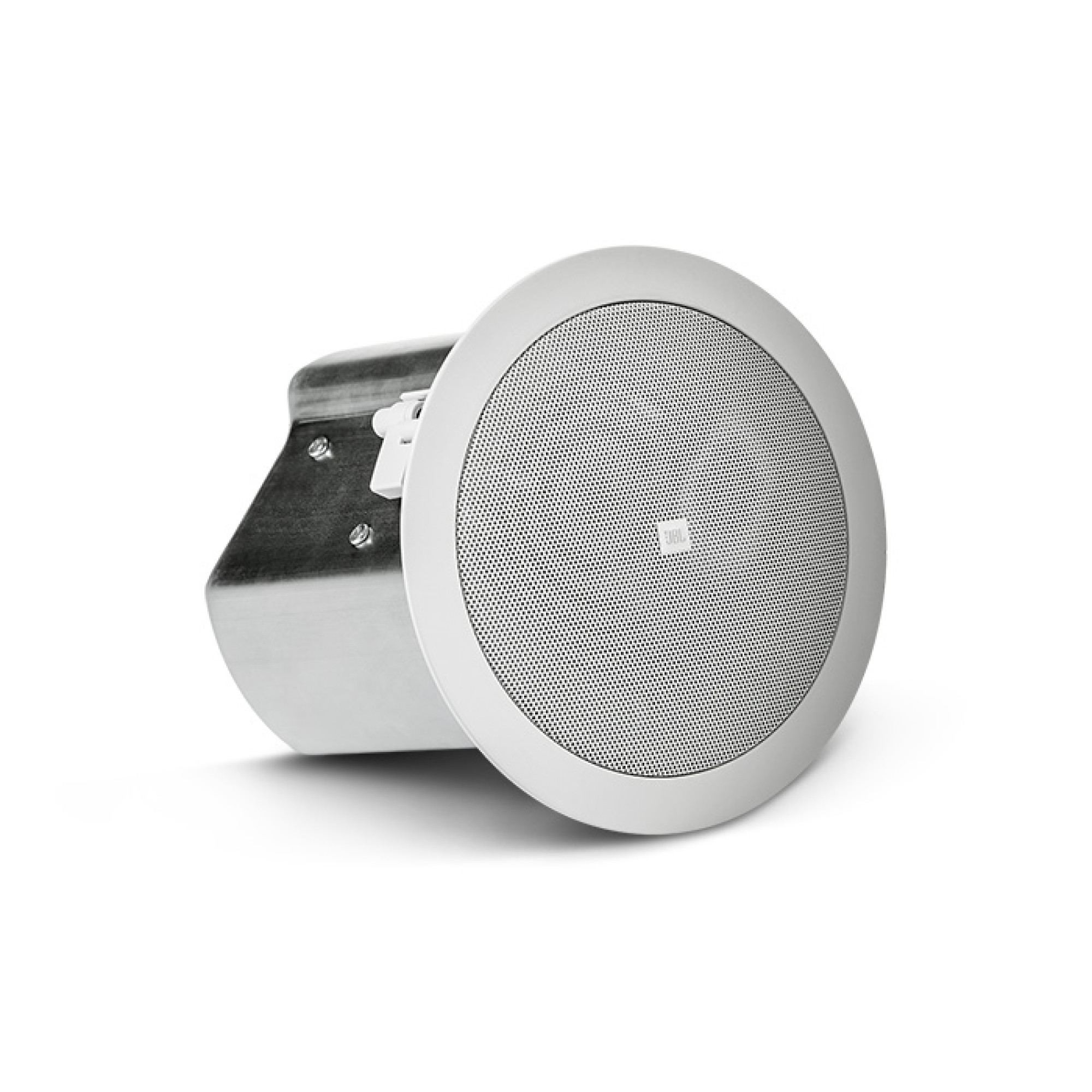

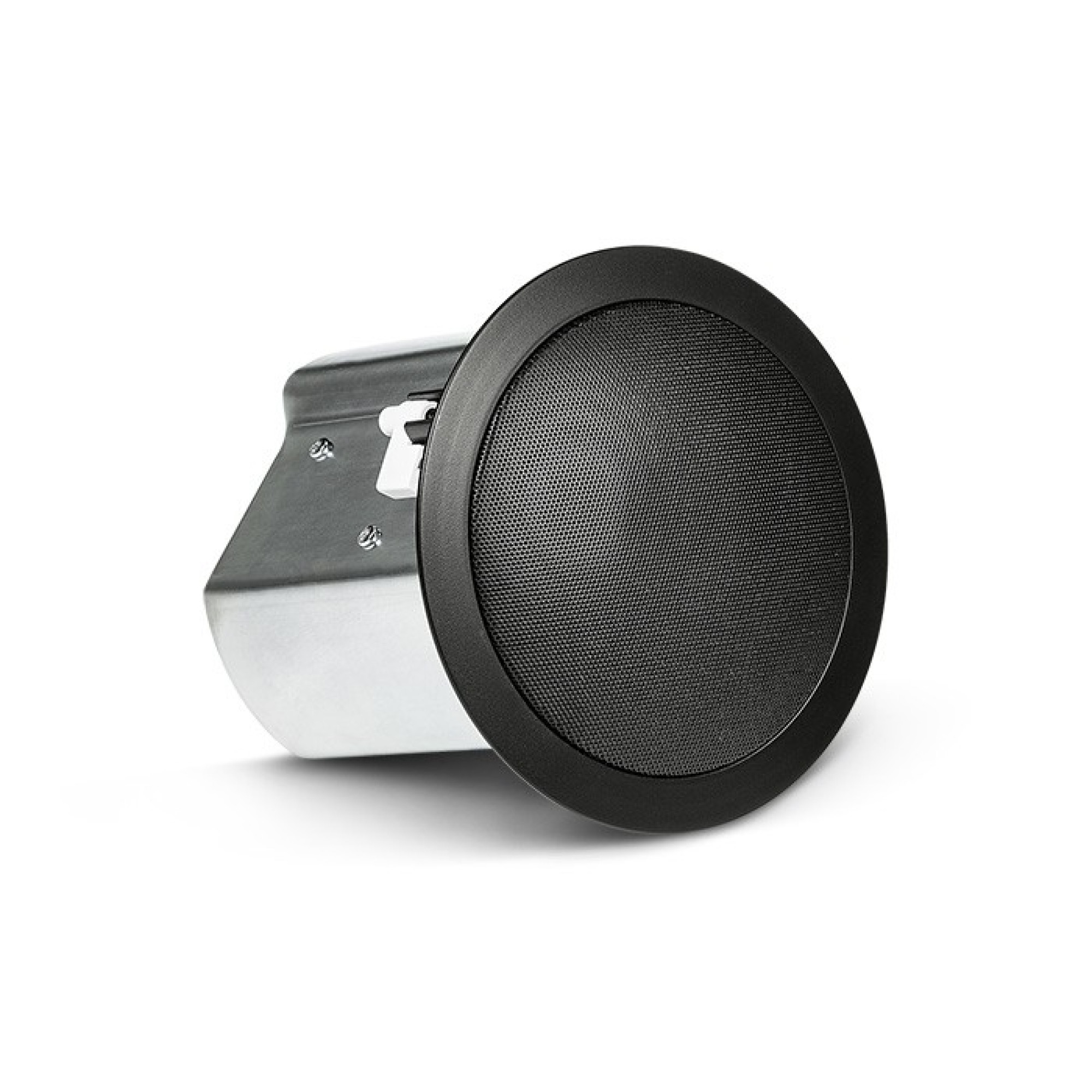

Ceiling Speaker System JBL Control 14C/T

All about product
Specification
Reviews
0
Questions
0
Information
Ends
In Stock
Product Code: CONTROL 14C/T
Brand: JBL
Reviews: 0
Found cheaper?
7 836 ₴
Specifications: (See all)
Type
Mounting
Body Material
Plastic
Number of Way
2
Woofer, inch
4
Tweeter, inch
0.75
Power, W
25
Description
The JBL Control 14C/T is a full-range, two-way installation speaker that combines compact size, high sound quality, and installation flexibility. It is specifically designed for commercial installations where wide coverage and pleasant sound at medium volume levels are required, such as cafes, shops, hotels, educational institutions, conference rooms, waiting areas, etc.
The speaker is equipped with a 4-inch (100 mm) woofer with a polypropylene cone, butyl rubber suspension, and a high-temperature aluminum voice coil, ensuring stable operation even in difficult conditions. The high-frequency emitter is a 19 mm silk dome tweeter with liquid cooling and a wide-angle waveguide, providing uniform coverage at 120°.
The Control 14C/T delivers a frequency range of 74 Hz – 20 kHz with a maximum sound pressure level of 108 dB and a sensitivity of 87 dB. The model supports both 8-ohm mode and operation in 70/100-volt distributed systems with a 25-watt multi-tap transformer. Installation is carried out in a 170 mm diameter cutout, the housing is made of fire-resistant ABS plastic (UL94-V0, UL94-5VB), and the back cover is made of galvanized steel.
The kit includes everything you need for installation: mounting brackets, cutout template, paint shield, grille, and seismic protection ring. The system is ideal for professional AV installations where quality, safety, and reliability are important.

Features

  • Two-way design with 100 mm woofer and 19 mm tweeter
  • Frequency range 74 Hz – 20 kHz, SPL up to 108 dB
  • 120° coverage for even sound in the area
  • Supports 8 ohms and 70/100 V with a 25 W transformer
  • Liquid cooling of the HF head for high reliability
  • Moisture-resistant polypropylene cone
  • UL94 fire-resistant material housing
  • Complete mounting kit included
  • Lightweight — only 2.2 kg for easy installation
Specifications
[SE] Installation Acoustics
Type
Mounting
Body Material
Plastic
Number of Way
2
Woofer, inch
4
Tweeter, inch
0.75
Power, W
25
Coverage
120°
Frequency Range
74 Hz - 20 kHz
Sensitivity, dB
87
Sound Pressure Level, dB
108
Connectors
Euroblock
Impendance, Ohm
8
Marking
Dimensions, mm
196 x 181
Weight, kg
2.2
Warranty, month
12
Color
White
Brand Registration Country
USA
Country of origin
China
