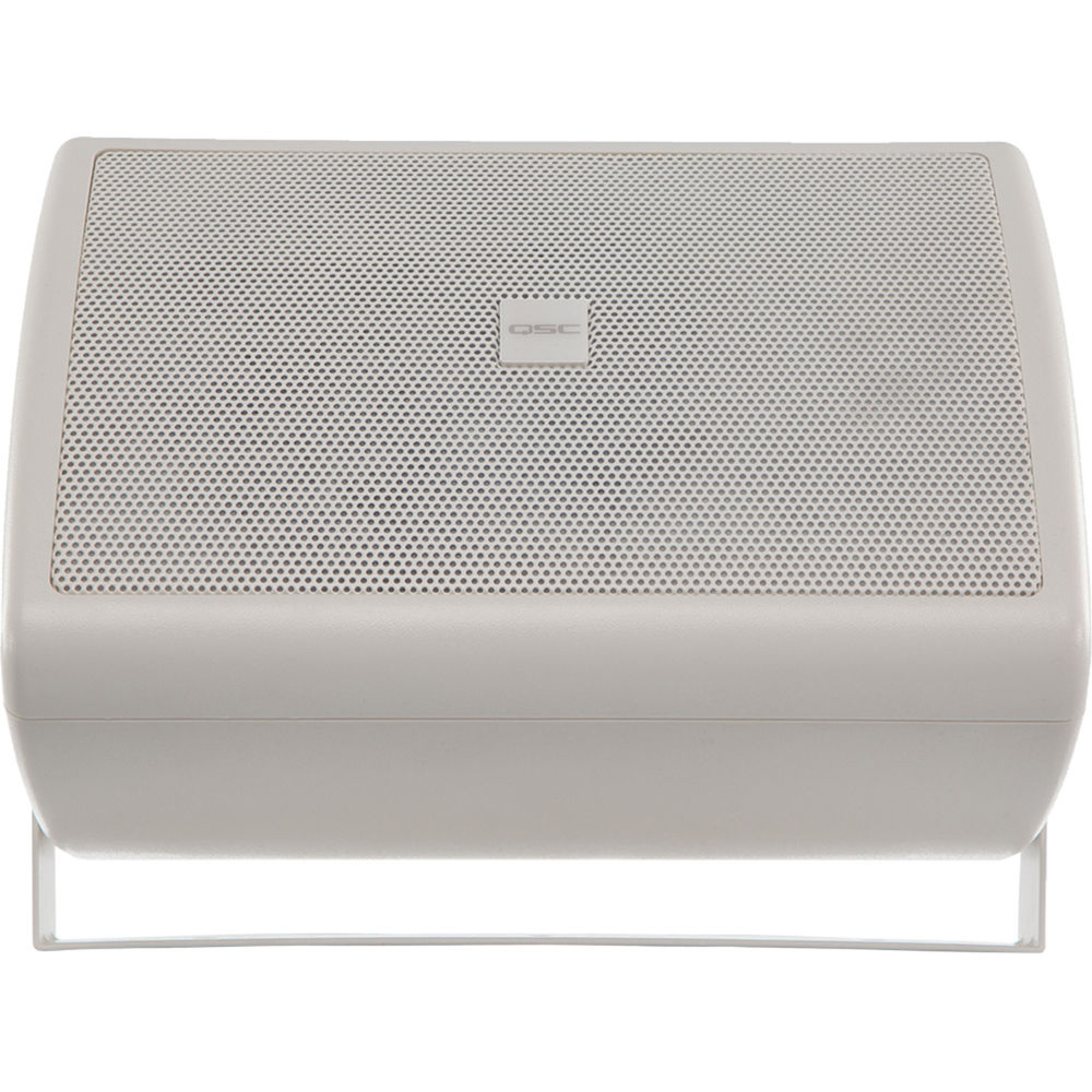

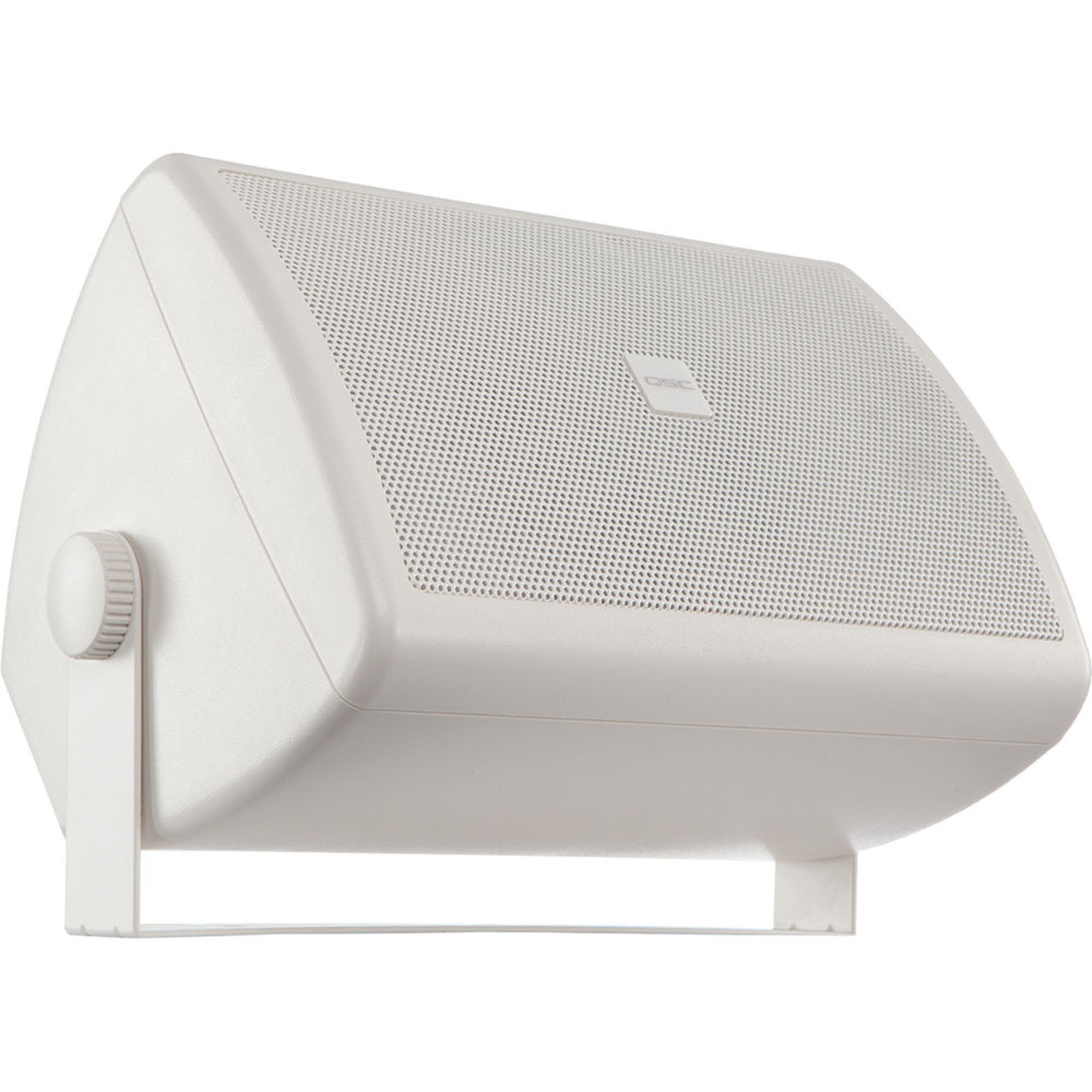

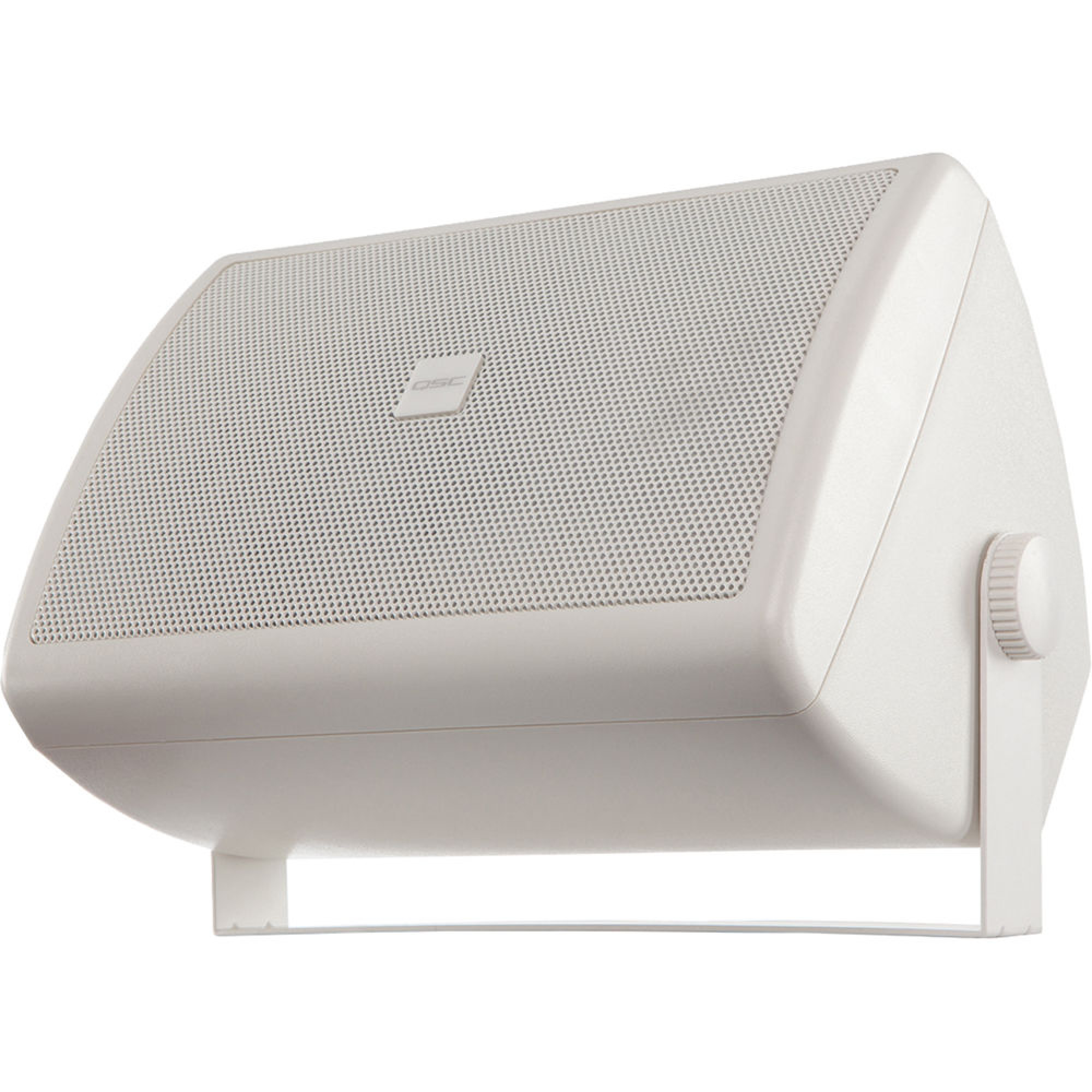

Wall-mounted speaker QSC AC-S6T (White)

The QSC AcousticCoverage Series AC-S6T is a surface mounted 6,5” two-way loudspeaker with 70/100V transformer, suitable for a wide variety of audio/video conferencing reinforcement, voice paging and background music applications. AcousticCoverage Series is designed to offer integrators a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical BGM class products.

A high quality 165 mm (6,5 in) polypropylene cone transducer with butyl rubber surround and a 25 mm (1 in) aluminium dome tweeter offers pristine clarity through the critical vocal range for increased speech intelligibility. With 130 degrees of conical coverage, the AC-S6T reduces the number of loudspeakers required for even coverage in close proximity. The UV treated high impact ABS enclosure and ported baffle assembly has been optimally tuned for added musicality, creating low frequency extension down to 60 Hz. To maintain this frequency response, the AC-S6T utilizes a 30-watt low-saturation and low-loss 70/100V transformer with varying selectable taps, including an 8 Ohm bypass.

Features

• High quality transducers provide exceptional clarity through the critical voice range
• Improved musicality often not seen in typical BGM class products
• Ported baffle for increased low frequency extension down to 70 Hz
• Low saturation 70/100V transformers with 8 ohm bypass

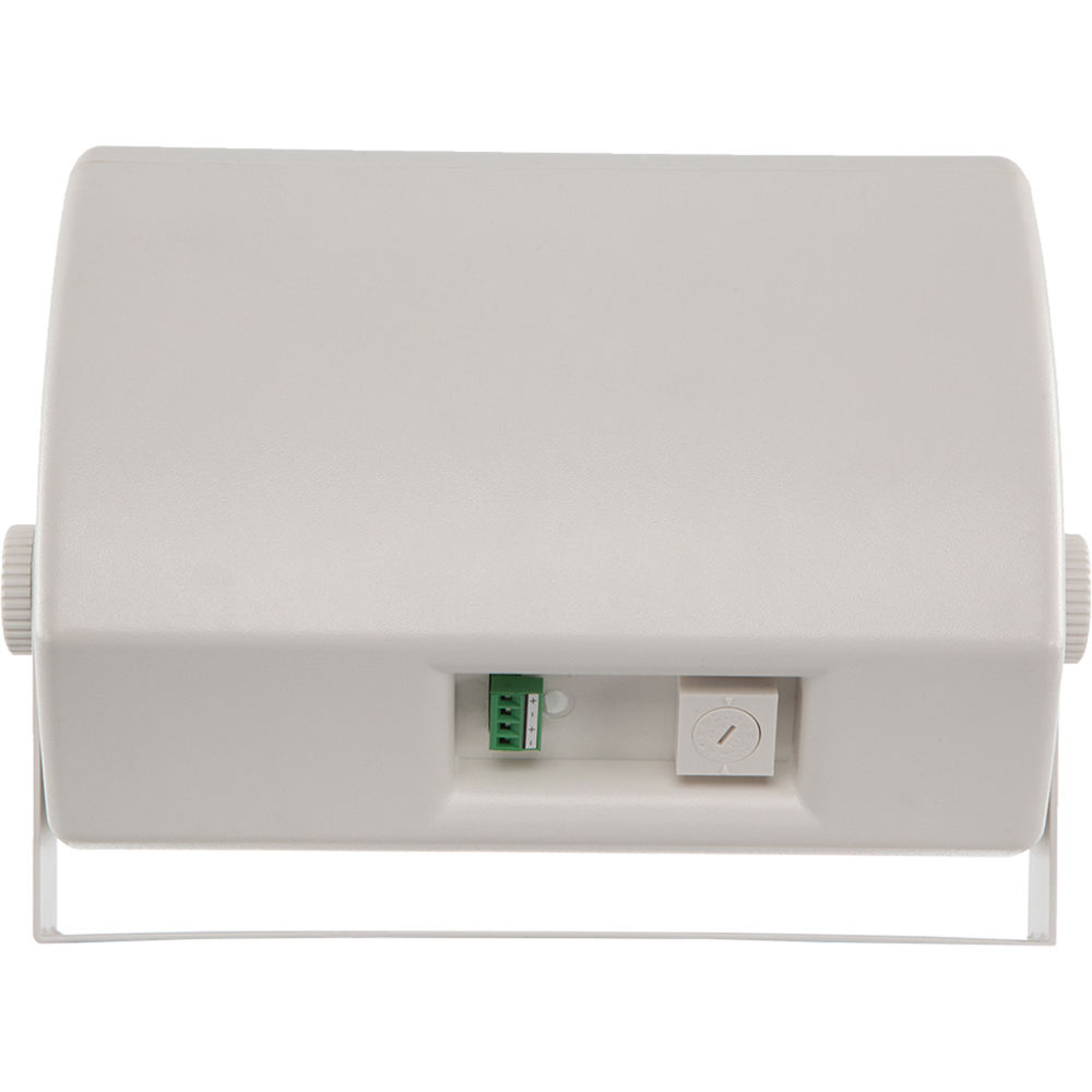

• 4-pole Euroblock connector eases system wiring
• Intrinsic Correction voicing available via Q-SYS Platform
• Available in black (RAL 9011) or white (RAL 9010)

User manual
