Passive PA Speaker Yamaha S215 V

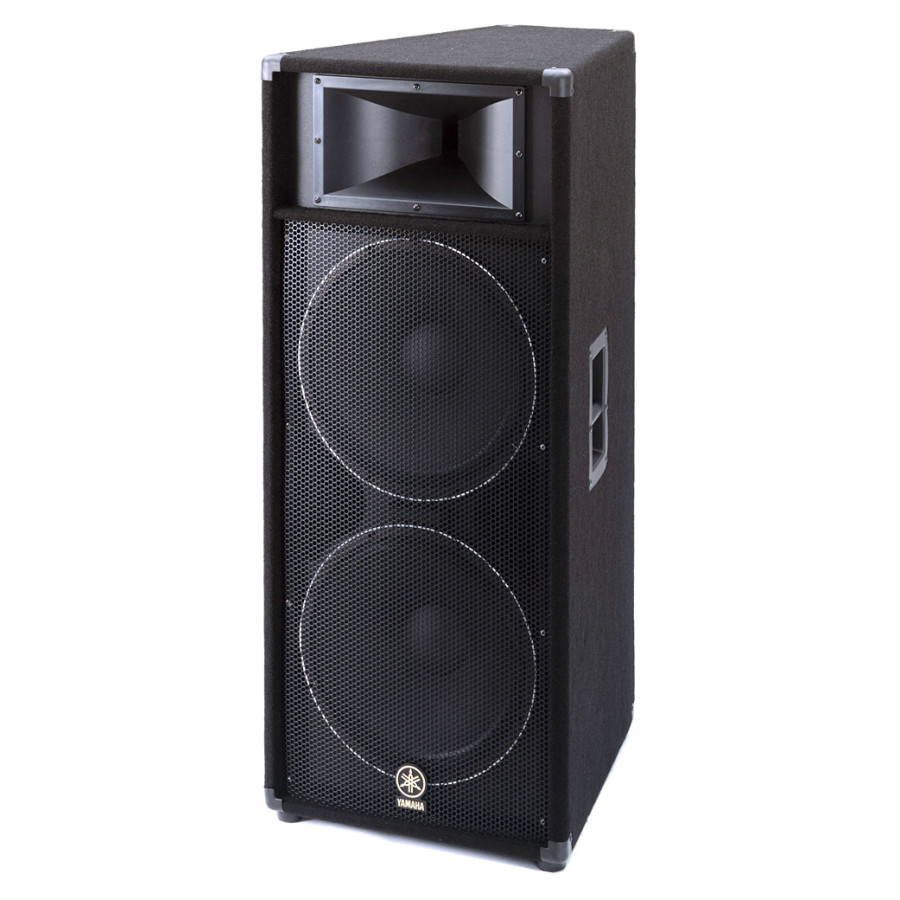

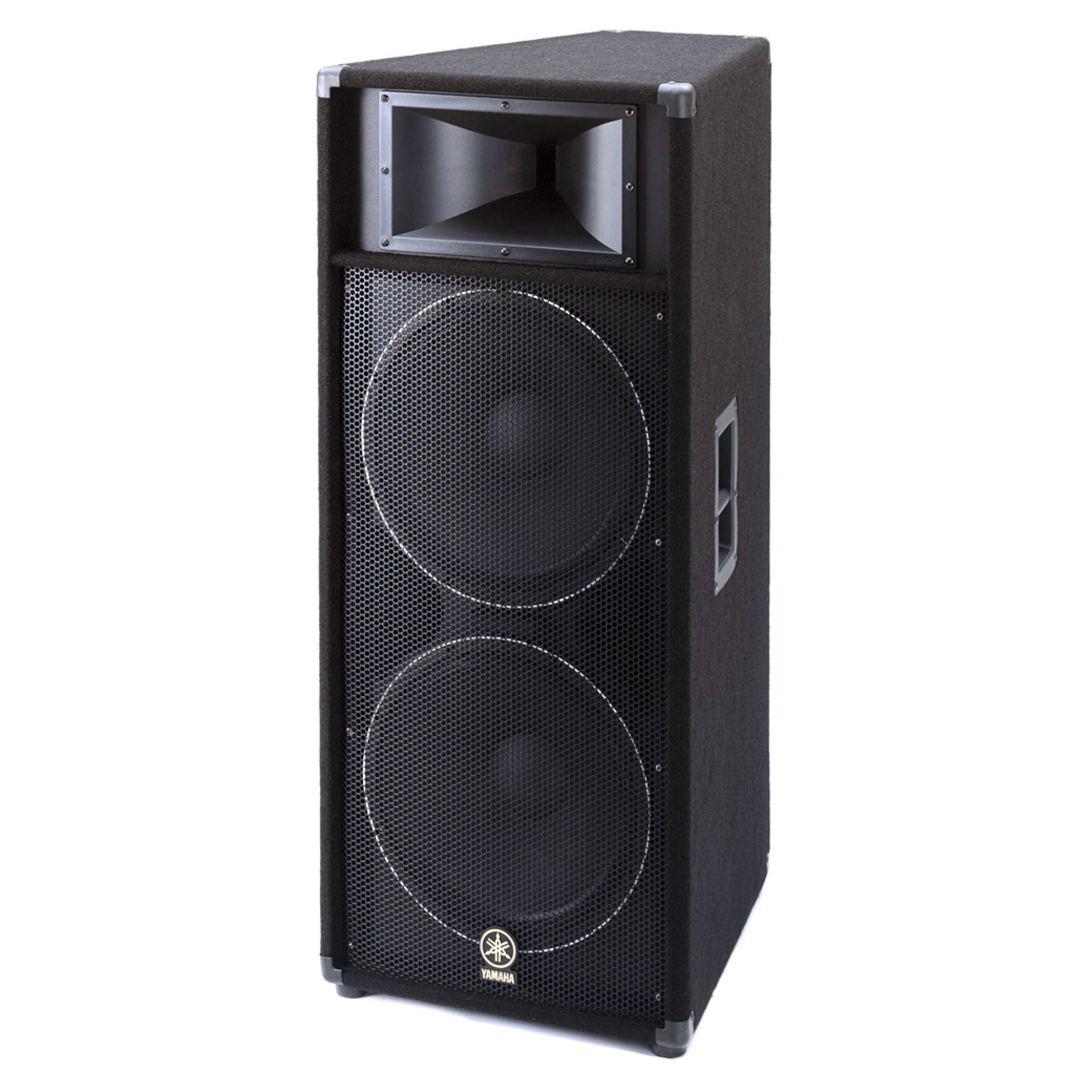

The Yamaha S215V is a two-way passive loudspeaker that delivers powerful, clear sound in even the most demanding of environments. Equipped with two 15-inch die-cast woofers and a 2-inch tweeter with a titanium diaphragm, this speaker covers a frequency range of 42 to 16,000 Hz. With 1000W RMS power (2000W peak) and 99dB sensitivity, the S215V delivers deep bass, crisp midrange and bright highs, even for large audiences.

Designed with professional sound engineers in mind, the Concert Club V series is characterized by reliability and durability. The special wooden enclosure with a protective coating withstands intensive use and transportation. A protective circuit built into the system prevents damage to the tweeter during peak loads or feedback.

The S215V also offers a high level of convenience with Speakon and Jack connectors that operate in parallel, providing easy connection to amplifiers or mixers with built-in amplification. The classic design with a rounded front grille, large metal carrying handles, and sturdy wood cabinet looks stylish and elegant while remaining highly functional.

Features

• Power: 1000 W RMS (2000 W peak)
• Frequency range: 42-16,000 Hz
• Two 15-inch woofers with cast-in-place frames
• 2-inch tweeter with titanium diaphragm
• Sensitivity: 99 dB, impedance: 4 ohms
• Connectors: 2 х 1/4” Jack, 2 x Speakon 4 pin
• Protective circuit for high-frequency driver
• Robust wooden housing with protective coating
• Dimensions: 495 x 1167 x 597 mm, weight: 47.2 kg
• Made in the USA, warranty: 12 months + 12 months service
