Passive Monitor Electro-Voice TX1152FM

All about product
Specification
Reviews
0
Questions
0
Information
Pre-order
Product Code: TX1152FM
Brand: Electro-Voice
Reviews: 0
Found cheaper?
57 910 ₴
Specifications: (See all)
Body Material
Plywood and MDF with EVCoat
Number of Way
2
Tweeter, inches
1.25
Mid-range speaker, inches
No
Woofer, inches
15
Phase Inverter
Yes
Description

The Electro-Voice TX1152FM floor passive monitor provides high performance for use on small to medium stages. When high quality vocals and instruments are required, this lightweight monitor is the way to go. With an undeniable combination of functional looks, compact design and engineering breakthroughs, the TX1152FM will redefine the world of stage monitors for years to come. The TX1152FM and the TX1122FM 12" woofer version build on the legacy of the world-renowned EV FM series with a dose of Electro-Voice innovation.

The most notable innovation on the Tour X FM models is the split deflector panel design with patented SST (Signal Synchronized Transducers) technology. The split front panel provides two very important benefits: the acoustic sources of the compression driver and woofer are moved closer together, and the baffle connector becomes a port, allowing for a much smaller cabinet. The result of this design is the synchronization of signals with almost perfect phase summation. Featuring a unique Backbone grille, the Tour X FM models not only look great, but offer greater strength and damage resistance than conventional grille block designs. Signature ergonomic handles and sloping entry panels make it easy to transport and set up the Tour X FM models in critical stage monitoring applications.

Features

  • Compact vertical floor monitor
  • 99 dB sensitivity, 132 dB maximum SPL
  • DH3 compression driver with 1.25" (32mm) diaphragm and 1" (25mm) pure titanium output
  • SMX2151 ultra-low distortion 15" woofer with fully symmetrical driver
  • Built-in crossover
  • Beam pattern 90° x 50°
  • 500W continuous (2000W peak) power

User manual

Specifications
[SE] Acoustic Systems
Body Material
Plywood and MDF with EVCoat
Number of Way
2
Tweeter, inches
1.25
Mid-range speaker, inches
No
Woofer, inches
15
Phase Inverter
Yes
Rated Power, W
500
Peak Power, W
2000
Frequency Range
45 Hz - 20 kHz
Crossover, Hz
1750
Sensitivity, dB
100
Maximum sound pressure level, dB
133
Impendance, Ohm
6.2 (minimum), 8 (nominal)
Battery
No
Features

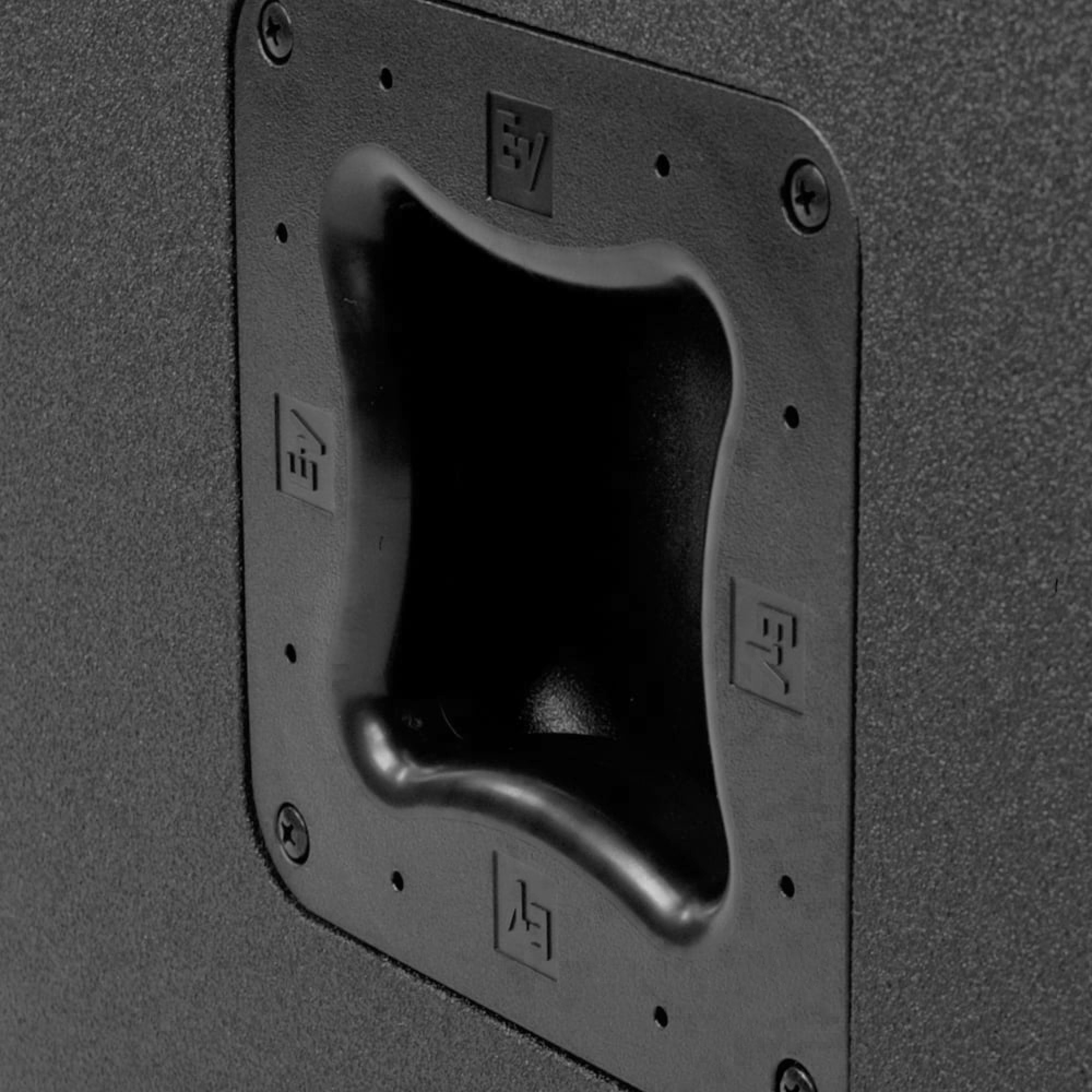

2 carry handles, 16 gauge powder coated steel grate

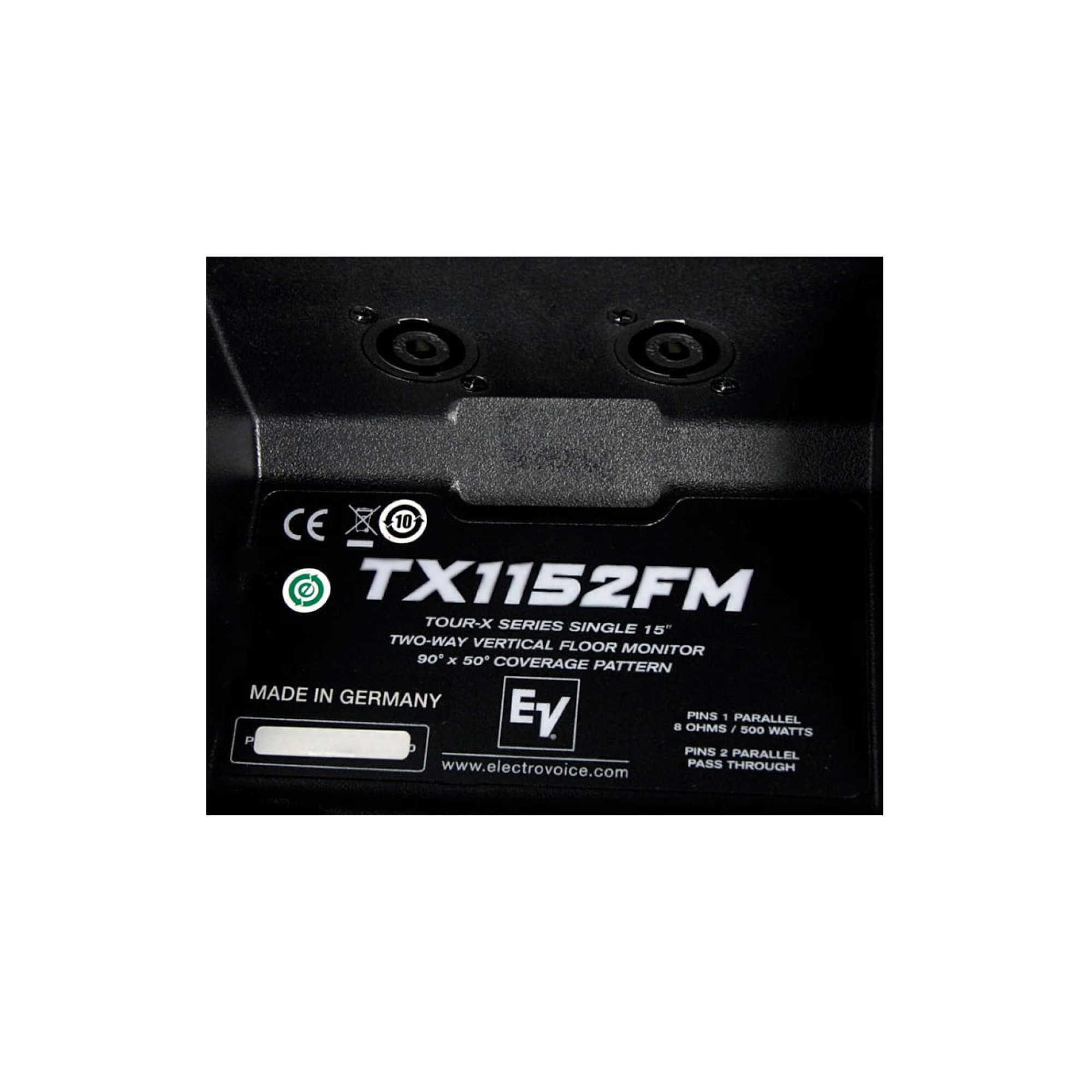

Inputs
2 x Speakon
Marking
Dimensions, mm
475 x 439 x 655
Weight, kg
23.5
Warranty, month
12
Color
Black
Brand Registration Country
USA
Country of origin
China
