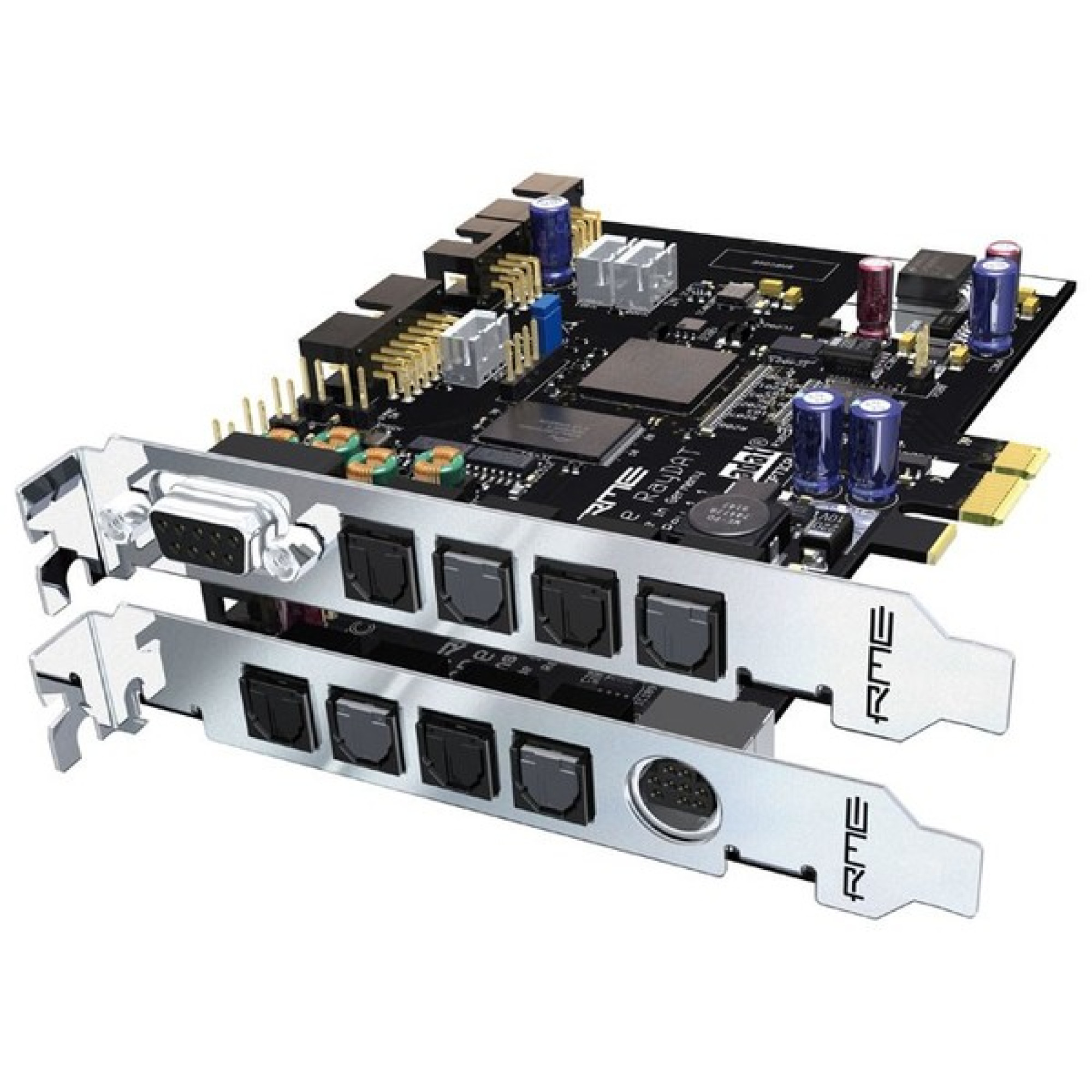

ADAT/AES PCI RME HDSPe RayDAT
HDSPe RayDAT is a multi-channel, multi-format and multi-task tool in stunning professional quality, the ideal solution from recording up to the final mastering. For the first time, even SPDIF (phono) and AES/EBU (XLR) are simultaneously operational due to separated hardware and record/playback devices. RayDAT offers no less than 4xADAT optical I/O, SPDIF I/O and AES/EBU I/O. That's a whopping 36 channels of inputs and outputs. On top, there are 2 MIDI I/Os and TotalMix, RME's unsurpassed DSP-based real-time mixer/router, with hardware-calculated level metering and complete MIDI remote capability. HDSPe RayDAT also supports the optional TCO for synchronization to timecode (LTC/video).
Internal ADAT inputs and outputs allow to add up to two TDIF ports directly inside the computer via RME's optional expansion boards. HDSPe RayDAT is the newly developed PCI Express version of the HDSP 9652. A genuine PCI Express core consequently takes full advantage of the new format, achieving significant performance gains in multitrack audio. Thanks to RME's secure flash update technology, firmware improvements, adjustments, and bugfixes can be installed easily at any time.
Specs
- Supported sample frequencies: Internally 32 kHz, 44,1 kHz, 48 kHz, 64 kHz, 88,2 kHz, 96 kHz, 176,4 kHz, 192 kHz. Externally 28 kHz - 200 kHz
- 8 buffer sizes/latencies available: 0,7 ms, 1,5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms
- All settings changeable in realtime
- Automatic and intelligent master/slave clock control
- Enhanced Mixed mode: All inputs and outputs simultaneously operational
- Unsurpassed Bitclock PLL (audio synchronization) in ADAT mode
- TMS (Track Marker Support): Supports CD/DAT start-IDs and the read out of CD subcode
- DIGICheck, RME's ultimate measurement, analysis and test tool
- Unique status windows for record and playback, showing mode and sample
- Super low jitter design: <1 ns in all clock modes
