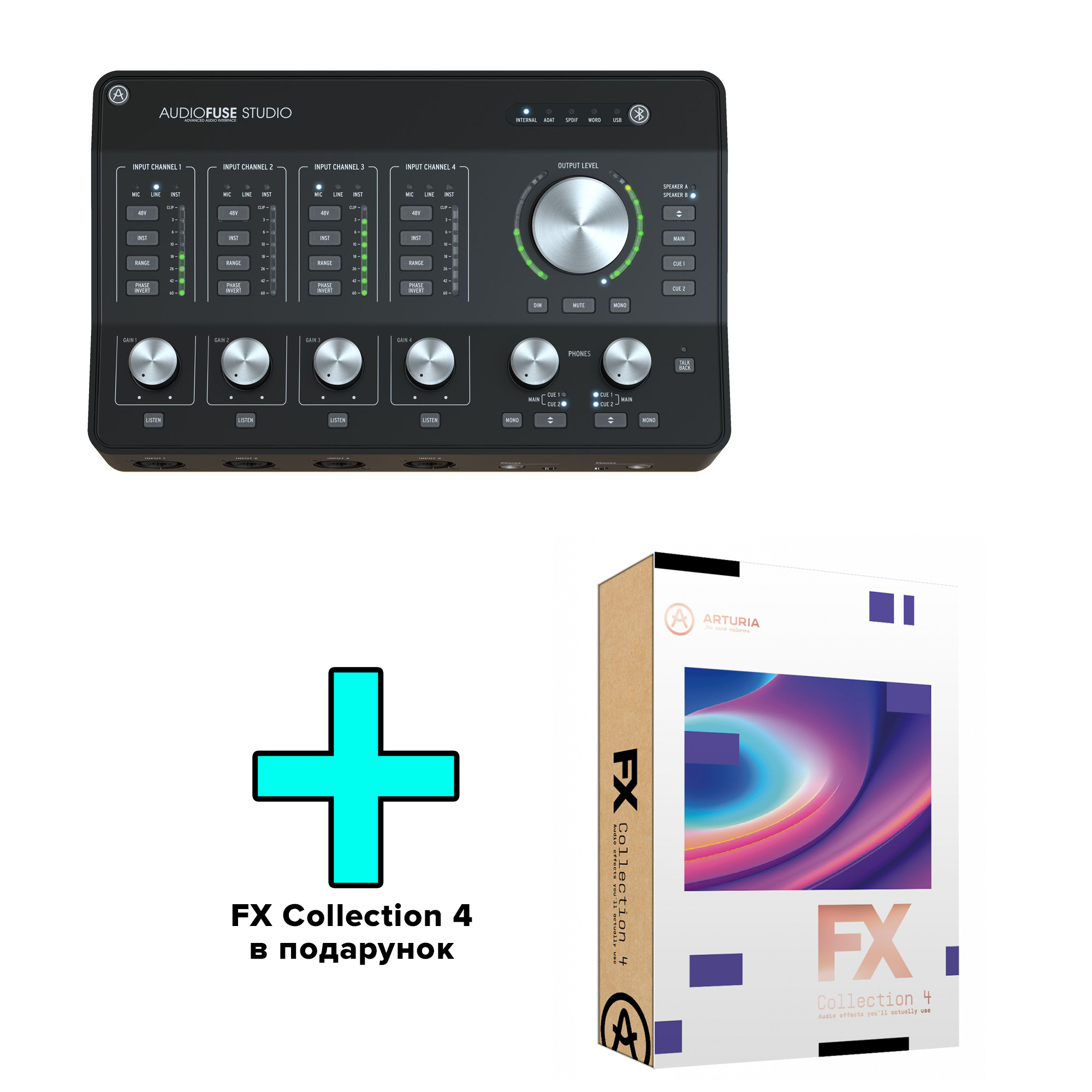

Audio Interface Arturia AudioFuse Studio + Arturia FX Collection 4

It’s time your music had an upgrade

The ultimate desktop audio interface, AudioFuse Studio gives you 4 world-class preamps, incredible connectivity, a versatile feature set, and a host of clever design features.

A future-proof investment in your music, and one that will let you hear, record, and mix with clarity you’ve never heard before. AudioFuse Studio lets you track your music with the highest quality; it lets you A/B your mix on different monitor setups; it lets you re-amp guitars; it lets you stream with Bluetooth using the best codec around; it keeps you working efficiently with a one-button, one-function interface. No matter what studio situation you find yourself in, AudioFuse Studio is the solution. The kit includes a virtual key to the full version of the software Arturia FX Collection 4.

The quality you deserve

When your diary is filling up with sessions and your clients need you to deliver, you need equipment you can trust. AudioFuse Studio ticks all the boxes.
Superb preamps, rock-solid performance, low latency, dozens of incredibly useful “just in case” features like a built-in phono preamp for vinyl sampling, Bluetooth streaming to your monitors or a channel in your DAW, awesome USB-C, ADAT, MIDI, and Word Clock connectivity and robust build.
AudioFuse Studio gives you 4 of our legendary Discrete Pro© preamps to track your music, and a superb analog signal path that will reveal every nuance of your audio. The super-low Equivalent Input Noise (EIN) lets you capture every subtle detail, while the huge 72dB input gain gives you enough gain to drive even the quietest ribbon mic. Everything is also capture with a practically perfect flat frequency response, too.

Enhancing the way you actually make music

Fed up of using studio equipment that forces you down a certain creative path? We were too, that’s why we made AudioFuse Studio.

This exciting interface sports a Bluetooth receiver with the highest possible codec, so you can pair it with your phone and stream music to your studio speakers, or track directly from the incoming stream. Every connection features the best components on the market, giving you perfectly transparent analog-digital conversion, practically non-existent noise on the preamps, even when fully cranked, loads of gain to make even the quietest mics shine, and a silky-smooth, audiophile listening experience.

It lets you easily check your mix on multiple monitor systems with instant speaker A/B switching, so you can save time and effort of cross-checking your mixes on different systems.

AudioFuse Studio also features a dedicated re-amping output, so you can record your guitar and bass directly into your DAW, and then tweak later with precisely matched guitar-level output.

AudioFuse Creative Suite

AudioFuse Studio not only gives you everything you need to record top-of-the-line audio, it also gives you legendary effects and synth sounds to enjoy. AudioFuse Studio comes complete with the AudioFuse Creative Suite, an ever-evolving collection of software effects and instruments that will let you add your own unique signature to your music. Color the pristine inputs of AudioFuse Studio with stunning vintage effects!

Box contents:

• AudioFuse Studio unit
• Power supply
• USB cable
• DiscretePro® Certificate

Main Features

• 18 inputs, 20 outputs channels
• 4 mic/instrument/line preamps with DiscretePRO® technology
• 4 additional line inputs, with inputs 5-6 commutable to Phono
• 4 analog inserts on channel 1-4
• Bluetooth audio receiver supporting aptX© and AAC©
• 2 pairs of speaker analog outputs on balanced TRS Jack
• 2 independent stereo headphones outputs, on both 6.35 and 3.5mm TRS.
• 2 independent analog line outputs with reamp capability (instrument level output)
• Complete monitoring section with individual level control for speakers and phones
• Direct monitoring ultra-low latency internal mixers
• 8 digital ADAT inputs/outputs up to 96kHz
• S/PDIF inputs/outputs or Word clock input, output/thru on Cinch RCA
• DiscretePRO® Individual audio performance certificate delivered with each unit.
• 24-bit latest generation AD/DA converters at up to 192kHz sampling rate.
• USB-C interface compatible with PC & Mac, fully USB 2.0 compatible
• Comes with AudioFuse Creative Suite
• Robust metal desktop chassis

Video review of Arturia AudioFuse Studio by Nadiia Bondarets

Specifications

• Line Inputs
  • Input impedance: 20kΩ (symmetric), 10kΩ (asymmetric)
  • Maximum input level: +24 dBu
  • Gain range: from -15 dB to 36 dB
  • Pad mode: -20 dB
  • Frequency response 20Hz to 20kHz: < +/- 0,08 dB
  • Dynamic range: 117 dB (A-weighted)
  • THD+N: -106 dB (A-weighted)
• Instrument Input
  • Input impedance: 1.1 MΩ asymmetric
  • Maximum input level: +18 dBu
  • Gain range: from -15 dB to 36 dB
  • Pad mode: -20 dB
  • Frequency response 20Hz to 20kHz: < +/- 0,08 dB
  • Dynamic range: 117 dB (A-weighted)
  • THD+N: -104 dB (A-weighted)
• Line Aux
  • Input impedance: 20kΩ (symmetric), 10kΩ (asymmetric)
  • Maximum input level: +24 dBu
  • Pad mode: -20 dB
  • Frequency response 20Hz to 20kHz: < +/- 0,08 dB
  • Dynamic range: 115 dB (A-weighted)
  • THD+N: -104 dB (A-weighted)
• Microphone Preamps
  • Input impedance: 3.4kΩ
  • Maximum input level: +11 dBu
  • Gain range: from 3 dB to 76 dB
  • Boost mode : +10 dB ; Pad mode : -20 dB
  • Frequency response 20 Hz to 20 kHz: < +/- 0,08 dB
  • Equivalent Input Noise (EIN): -129.5 dBu typical (un-weighted)
  • THD+N: -104 dB (A-weighted)
• Inserts
  • Output impedance: 120Ω
  • Input impedance: 10kΩ
  • Dynamic range: 119 dB (A-weighted)
  • Maximum output level: +18 dBu
  • Maximum Input level: +18 dBu
  • THD+N: -104 dB (A-weighted)
• Speakers
  • Output impedance: 120Ω
  • Maximum output level: +24 dBu
  • Dynamic range: 119 dB (A-weighted)
  • THD+N: -104 dB (A-weighted)
• Phones
  • Designed for phones impedance from 16 Ohms to 600 Ohms
  • Output impedance: 33Ω
  • Maximum output level: +10 dBu
  • Dynamic range: 102 dB (A-weighted)
  • THD+N: -87 dB (A-weighted)

Platform specifications

Windows: Win 7+ PC: 4 GB RAM; Intel i5 CPU or faster.
OpenGL 2.0 compatible GPU

Apple: 10.8+: 4 GB RAM; Intel i5 CPU or faster.
1GB free hard disk space
OpenGL 2.0 compatible GPU
