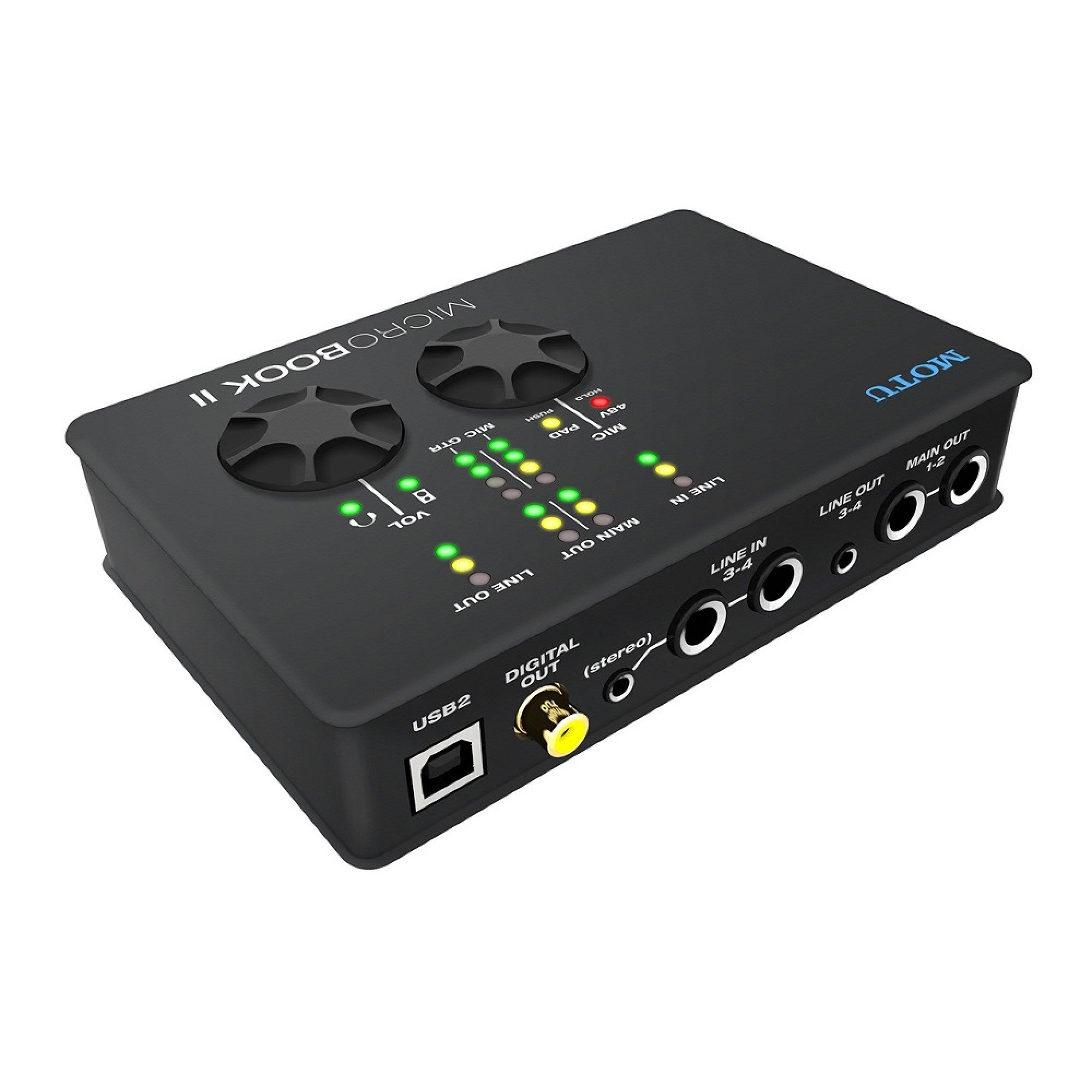

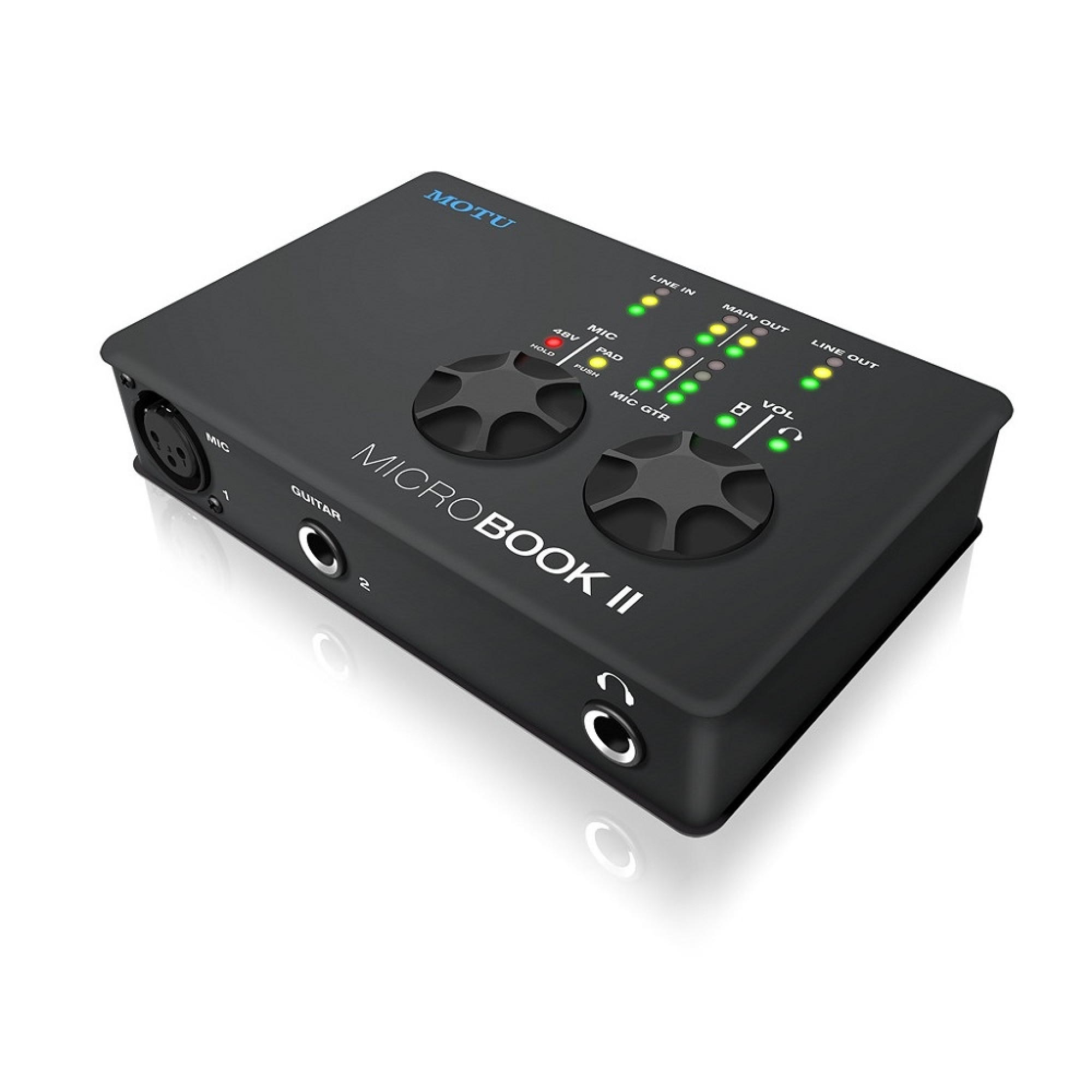

Audio Interface MOTU MicroBook IIc

The MicroBook IIc provides simultaneous inputs for a microphone, a guitar, and a keyboard or other stereo line level device. The mic preamp delivers neutral coloration and pristine sound, with -20 dB pad and 48V phantom power for condenser mics. Programmable outputs provide flexible monitoring options.

Ultra-compact size. Take it with you anywhere

The MicroBook IIc is an impressively small 5.5 by 3.6 by 1.25 inches, which means that it slides easily into your backpack — or a large pocket. It also sits nicely next to your laptop or desktop computer.

Studio-grade sound. Engineered for the discriminating ear

The MicroBook IIc has been engineered with MOTU’s renowned, award-winning audio interface technology, which delivers the uncompromising audio quality and rock-solid performance MOTU interfaces are known for worldwide. You can always record and mix with confidence, even in the most demanding professional recording situations, knowing that decades of engineering experience are behind you, every step of the way. The MicroBook IIc delivers measured audio specs that rival interfaces costing hundreds more.

High-speed USB 2.0. High bandwidth and low latency

The MicroBook IIc can record and play all channels simultaneously, and high-speed USB 2.0 provides plenty of bandwidth, even at 96 kHz.

iPad® support. High-quality I/O for your iOS music apps

As the "c" in its name implies, the MicroBook IIc is USB audio class compliant. Use a standard Lightning to USB Camera Adapter (purchased separately) to connect the MicroBook IIc to your iPad. Then record and monitor high-quality audio with your favorite iOS apps. Power the MicroBook IIc with the included Micro-USB cable and AC wall adapter.

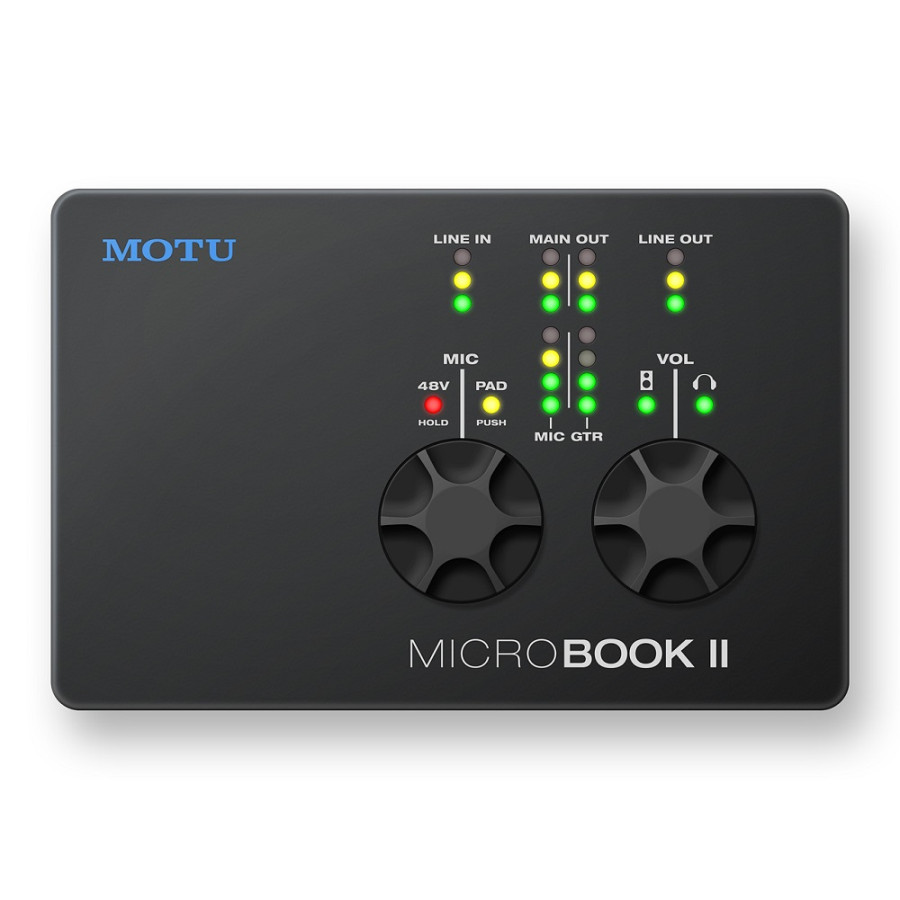

Flexible volume control. Digital encoders push and turn

The two digital rotary encoders not only look good, they feel good, too. Push the volume knob repeatedly to cycle among the main outs, headphones, or both, as indicated by the LEDs. For the mic input, adjust trim and toggle 48V phantom power or the -20 dB pad. Hands-on control is immediate and intuitive.

Mixing and effects. It's an 8-bus digital mixer, too

The MicroBook IIc is an 8-bus digital mixer that lets you mix live inputs with each other — with or without host software tracks. With CueMix FX running on your computer, you can create separate mixes of live audio from your mic, guitar, and keyboard, and send each mix to separate outputs (main out, line out, and phones out) or any combination of all three.

Features

• 4-input, 6-output bus-powered "plug-and-play" high-speed USB 2.0 audio interface for Mac and Windows.
• 6 x 8 physical inputs and outputs.
• Support for Apple® iPad® and other iOS devices with camera connection kit (sold separately).
• 8-bus digital mixer to route and mix live inputs with computer tracks.
• Pre-amp equipped mic input with Precision Digital Trim™ 48V phantom power, and -20 dB pad.
• Hi-Z guitar input with -20 dB pad Precision Digital Trim.
• Stereo line level analog input (balanced TRS quarter-inch or stereo mini).
• Stereo balanced TRS quarter-inch line level main outs.
• Stereo eighth-inch "mini" line level out.
• S/PDIF digital out (duplicates main out).
