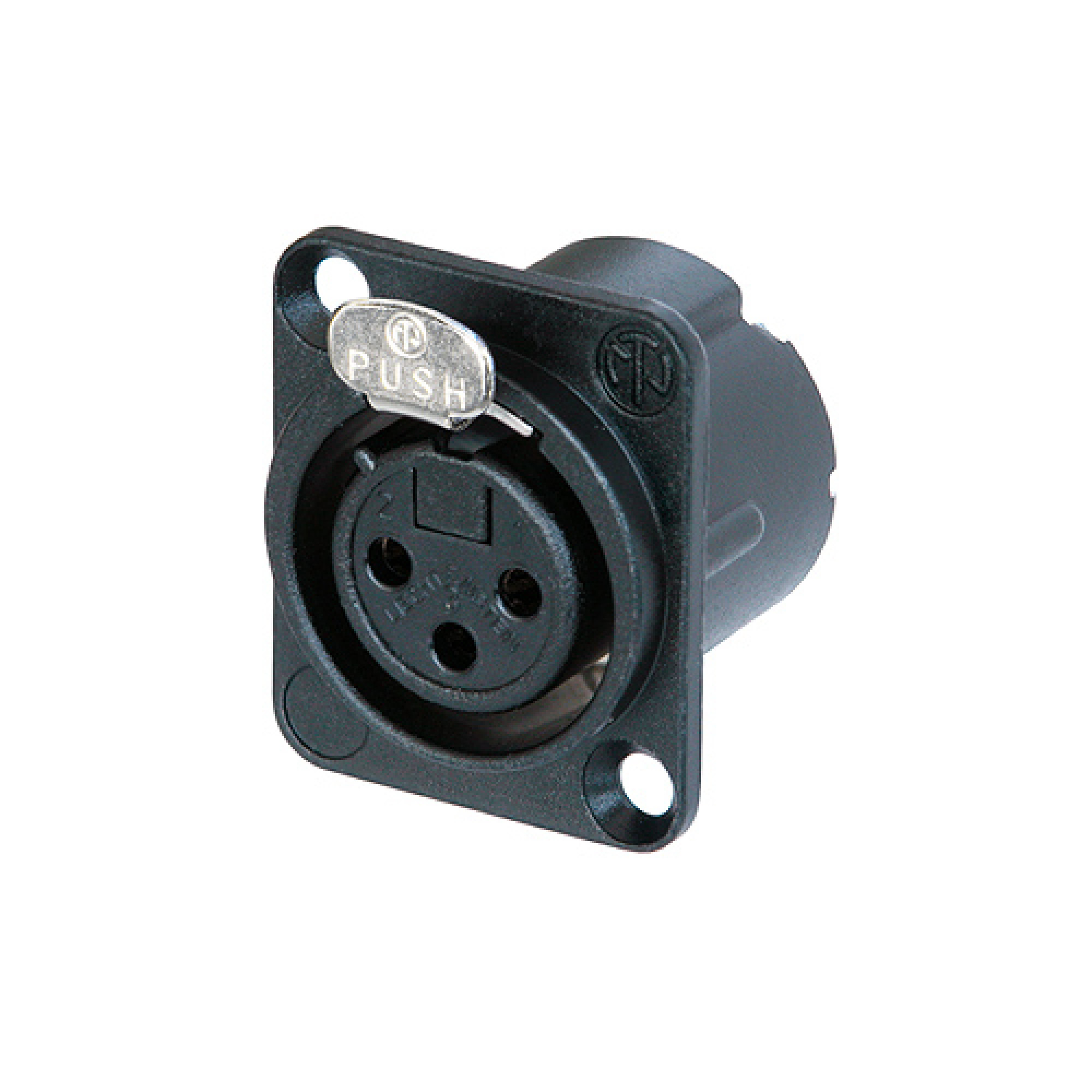

The XLR Female Connector Neutrik NC3FD-LX-BAG is a high-quality three-pole connector with solder cups, black metal housing, and silver contacts. The DLX series features a compact all-metal housing with a unique dual grounding construction, providing excellent protection against radio frequency interference and electromagnetic shielding. This connector is an ideal complement for connection with Neutrik EMC XLR cable connectors.
Technical Information
Electrical Characteristics
| Capacitance between Contacts | ≤ 4 pF |
|---|---|
| Contact Resistance | ≤ 5 mΩ |
| Dielectric Strength | 1.5 kV DC |
| Insulation Resistance | > 10 GΩ (initial) |
| Rated Current per Contact | 16 A |
| Rated Voltage | < 50 V |
Mechanical Characteristics
| Insertion Force | ≤ 20 N |
|---|---|
| Withdrawal Force | ≤ 20 N |
| Durability | > 1000 mating cycles |
| Maximum Wire Size | max. 2.5 mm² / max. 14 AWG |
| Connection Type | solder contacts |
| Locking System | latch |
| Chassis Shape | D |
Material
| Contact Plating | 2 µm Ag |
|---|---|
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA66) |
| Locking Element | Steel Ck67 |
| Housing | Zinc alloy (ZnAl4Cu1) |
| Housing Coating | Black KTL |
Environmental Characteristics
| Flammability | UL 94 V-0 |
|---|---|
| Standards Compliance | IEC 61076-2-103 |
| Protection Class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -30 °C to +80 °C |
