Guitar Effects Pedal Source Audio SA220 Soundblox 2 Multiwave Distortion

The Soundblox 2 Multiwave Distortion includes all the futuristic and synth-like distortion and fuzz tones of the original Soundblox Multiwave Distortion, repackaged in a compact, cast-aluminum housing. The pedal features 23 distortion effects plus a Clean Boost mode, two user presets, three-band tone control, Universal Bypass™ (selectable buffered or true bypass), a three-level noise gate, and a Multi function input jack compatible with Hot Hand®, an expression pedal, or MIDI*. Use the Hot Hand Motion Sensor Ring or the Source Audio Dual Expression Pedal for on-the-fly control over any of the six adjustable parameters or to seamlessly morph from one user preset to the other. Plug in a MIDI controller for external access to presets and parameters.

The Soundblox 2 Multiwave Distortion features both multi band and single band processing. Multi band processing splits the input signal into ten distinct frequencies bands, distorts each one separately then recombines them for the final outputted signal. The effect is a crisp and clear distortion with sturdy attack and superior note articulation. Single band processing employs a more conventional approach, applying a single distortion element to the entire signal. The processing categories are further broken down into three subcategories: “Normal”, for a more traditional distortion curve, “Foldback”, for an aggressive, synth-like fuzz and “Octave”, for unique octave-up distortion effects.

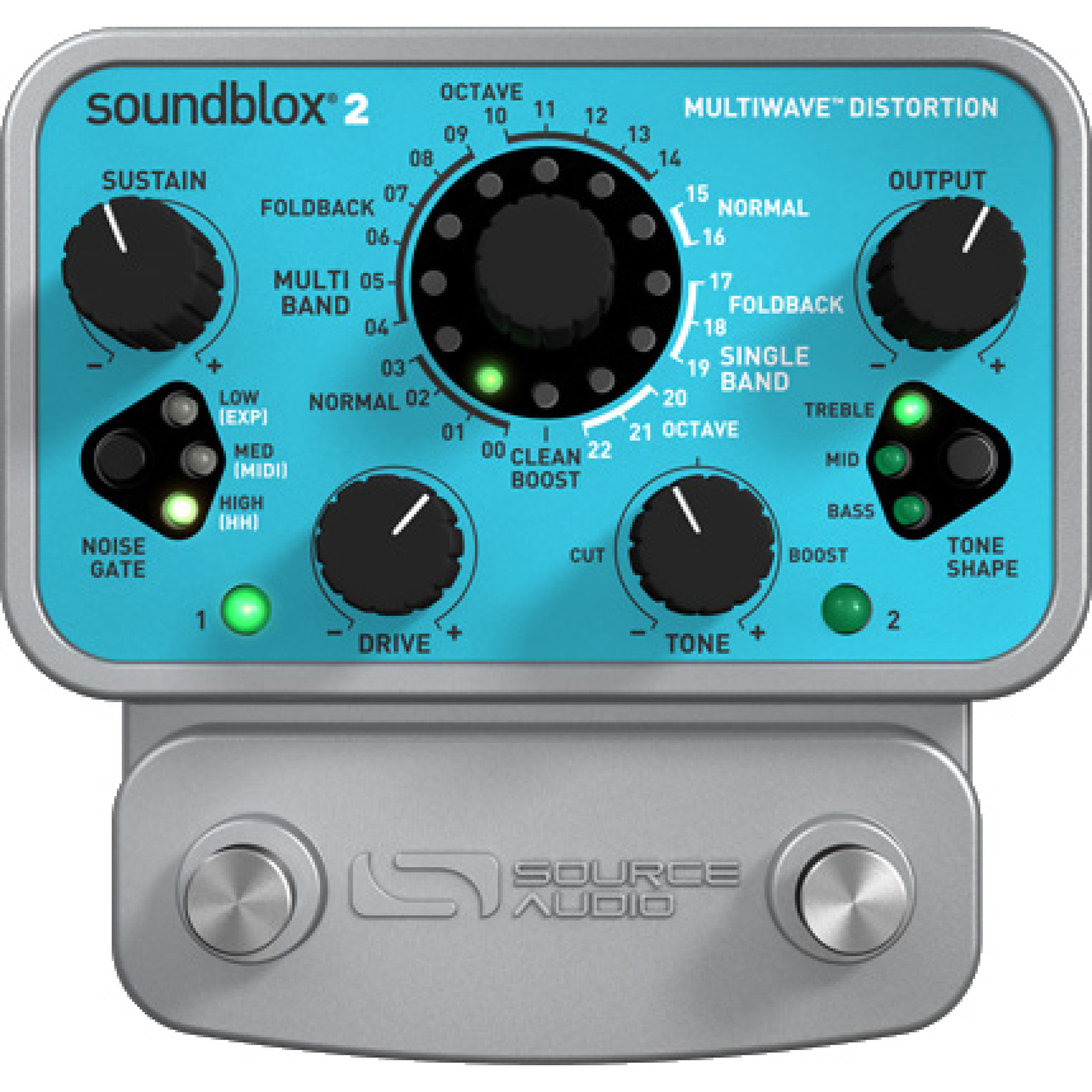

MULTIWAVE DISTORTION INTERFACE

• Sustain: Adjusts input gain to the front end of the compressor
• Noise Gate: Controls the noise gate threshold level
• Effect: Selects the type of distortion
• Drive: The amount of distortion gain applied to the signal
• Tone: Cuts or boosts the selected TONE SHAPE (Treble, Mid or Bass)
• Output: Adjusts the output level of the effect
• Tone Shape: Selects the frequency range controlled by the TONE knob

I/O PORTS

• Multi-Function In: Connect a hot hand receiver or expression pedal via a 4 pole ⅛” sensor cable
• Guitar In: Connect your instrument here using a standard MONO ¼” cable
• Guitar Out: Connect this to your amp, pedal, or other audio device
• Multi-Function Out: Connect this to other Soundblox pedals via a hot hand Daisy Chain cable
• 9V DC: Connect a 9V DC power supply here

Features

• Diverse Sound Palette — Featuring 23 varieties of our unique distortion algorithms with an additional CLEAN BOOST mode
• Multiband Processing — Signal is split into multiple bands and distorted individually for unprecedented sound clarity
• Compact, cast aluminum housing
• 2 User Presets easily recalled via two footswitches
• Universal Bypass — selectable buffered or true bypass
• 3-band tone control — select between “treble”, “mid”, and “bass” for precision tone sculpting
• Noise Gate — easily activated 3-level noise gate
• Multi-function In — use an expression pedal or the Hot Hand Motion Sensor to morph between presets or manipulate any of the six assignable parameters
• MIDI Capable — the Multi-function In jack also allows MIDI access to presets and parameters
• State-of-the-art DSP — Our proprietary 56-bit Digital Signal Processor, the SA601, and crystal clear 24-bit converters
• 9V DC power supply included
