Expansion Card Yamaha MY8-AD24

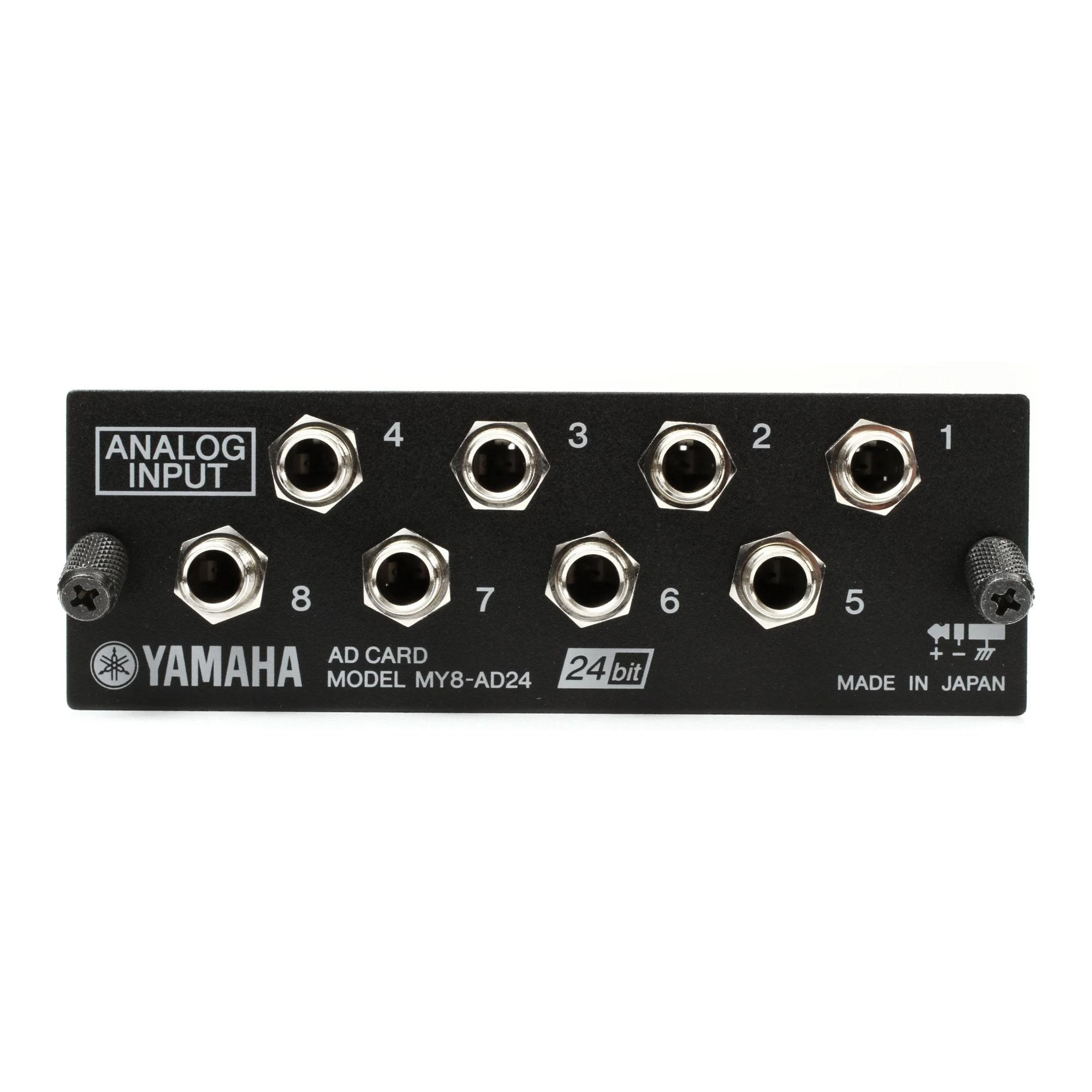

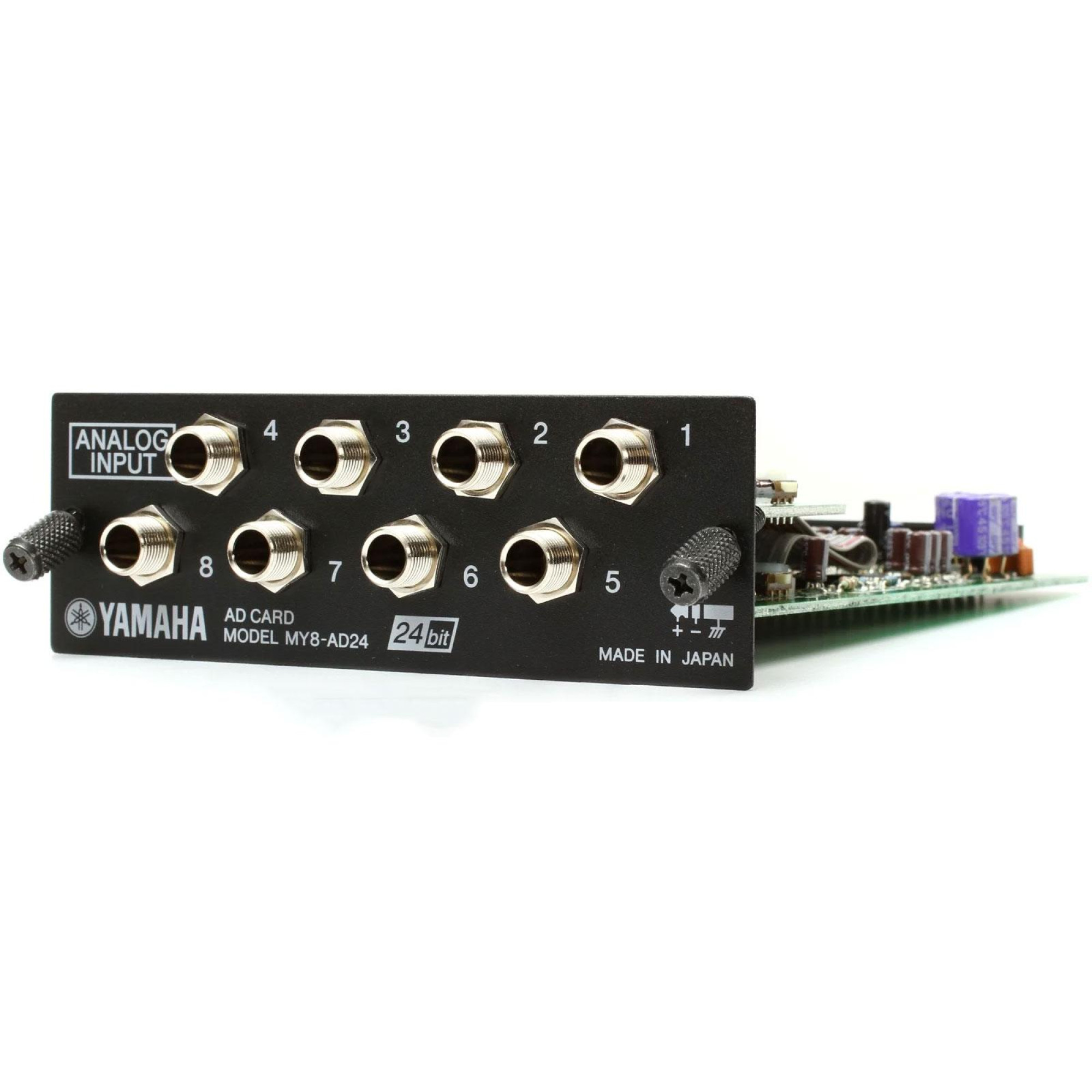

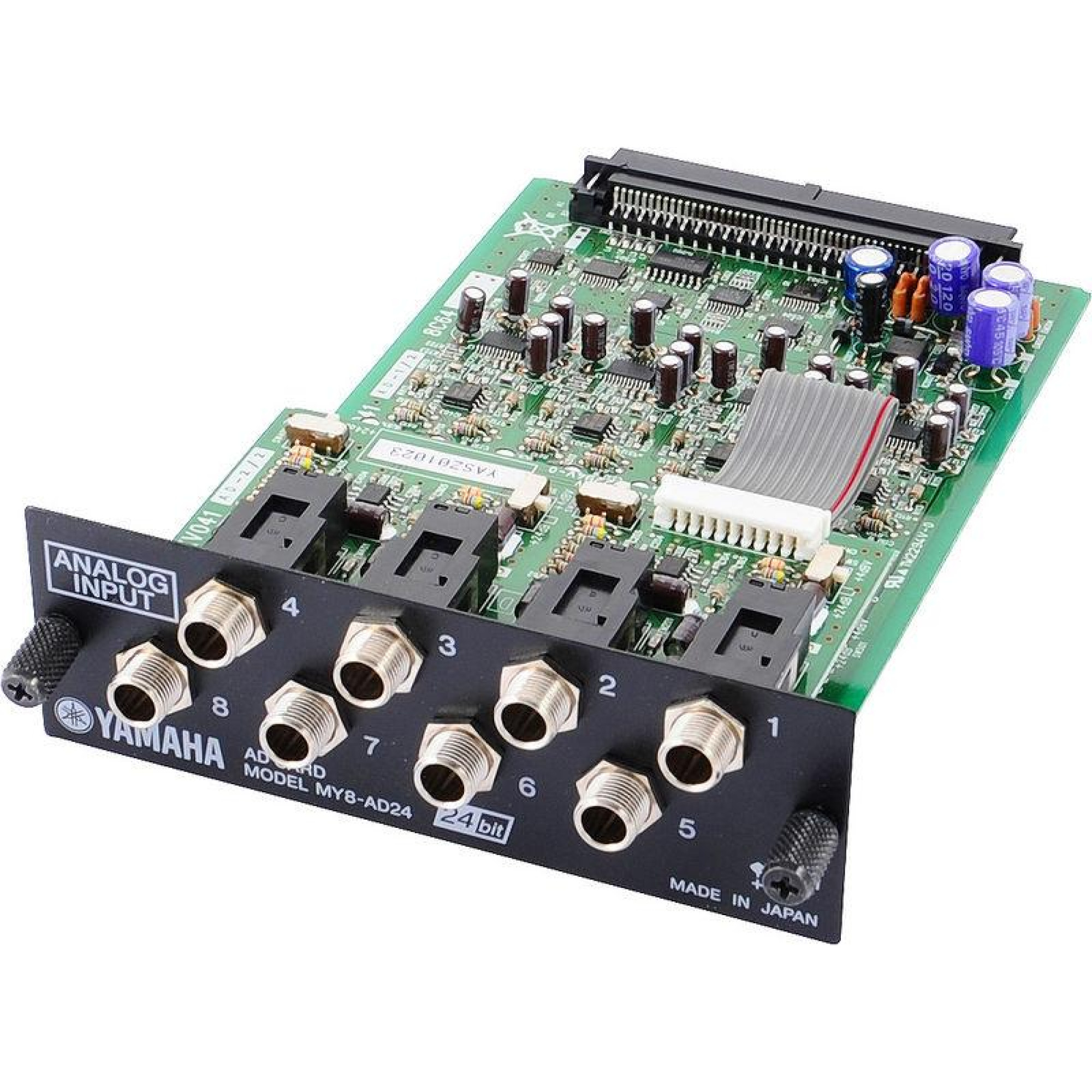

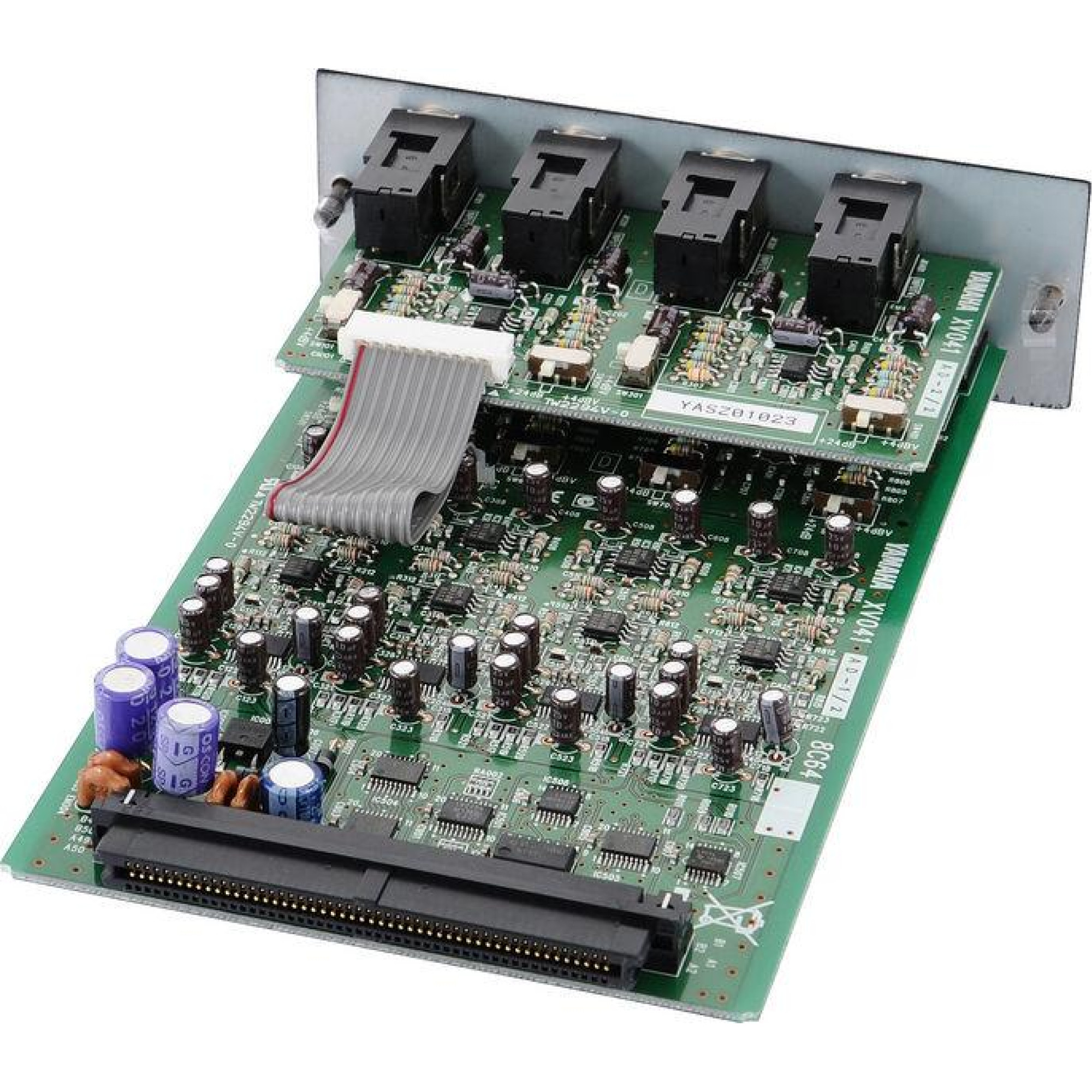

The Yamaha MY8-AD24 is an analog-to-digital conversion card for compatible Yamaha digital mixing consoles and signal processors. It provides the ability to connect up to eight audio sources via balanced TRS 1/4" connectors.

This expansion card is for Yamaha models DM2000, DM1000, 02R96 and 01V96. It has built-in 24-bit analog-to-digital converters with a sampling frequency of 48 kHz, which ensures high quality sound during recording.

Each input has its own "GAIN" switch, which allows you to adjust the level of the input signal. The standard input level is +24 dBu or +4 dBV, which provides flexibility in working with various audio signals.

The MY8-AD24 card is designed and made in Japan and comes with a 12-month warranty, plus an additional 12 months of free service. It is an indispensable tool for those who want to expand the capabilities of their Yamaha digital mixing console, allowing the connection of more analog jacks for recording and processing audio signals.

Features

• Provides eight analog inputs via eight balanced TRS connectors
• Has built-in 24-bit analog-to-digital converters with a sampling rate of 48 kHz for high-quality sound
• Supports Yamaha DM2000, DM1000, 02R96 and 01V96 models
• Each input has its own "GAIN" switch to adjust the level of the input signal
• The input level is +24 dBu or +4 dBV as standard, providing flexibility in working with different audio sources
• Made in Japan
• Comes with a 12-month warranty and a further 12 months of free service
