Two-channel amplifier Crown XLi800

The XLI Series of power amplifiers from Crown represents a new era in affordable, quality power amplification. All four models in the series are powerful, rugged and reliable. They are suited for musicians, DJs, and entertainers as well as houses of worship, discos, and pubs.

The four models in the series are the XLi800, XLi1500, XLi2500 and XLi3500. They are identical except for output power.

Output power

The amplifier is equipped with two independent channels and provides the following output power:

• 2 x 300 W/4 Ohm (stereo mode)
• 2 х 200 W/8 Ohm (stereo mode)
• 1 x 600 W/8 Ohm (Bridge mode)

DriveCore technology

Using the new generation of switched-mode power supplies with DriveCore technology, you can significantly improve the detail of the sound at low frequencies, regardless of the level of output signal.

Easy connection

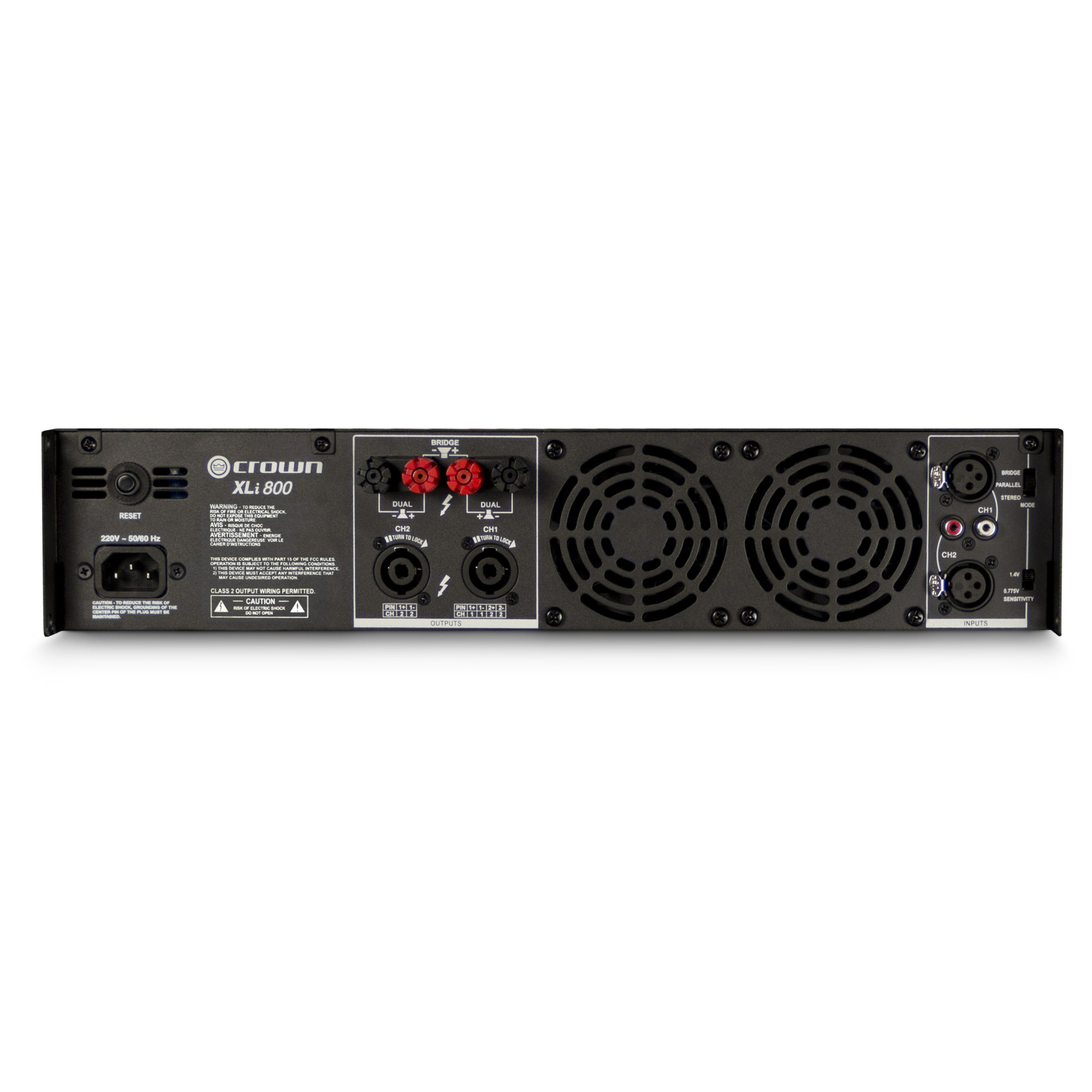

All kinds of input and output connectors (RCA, XLR, Speakon and direct wiring terminals) on the back of the amplifier make connecting the speakers much easier and can be done in several modes (Bridge, Stereo or Parallel).

Intuitive controls

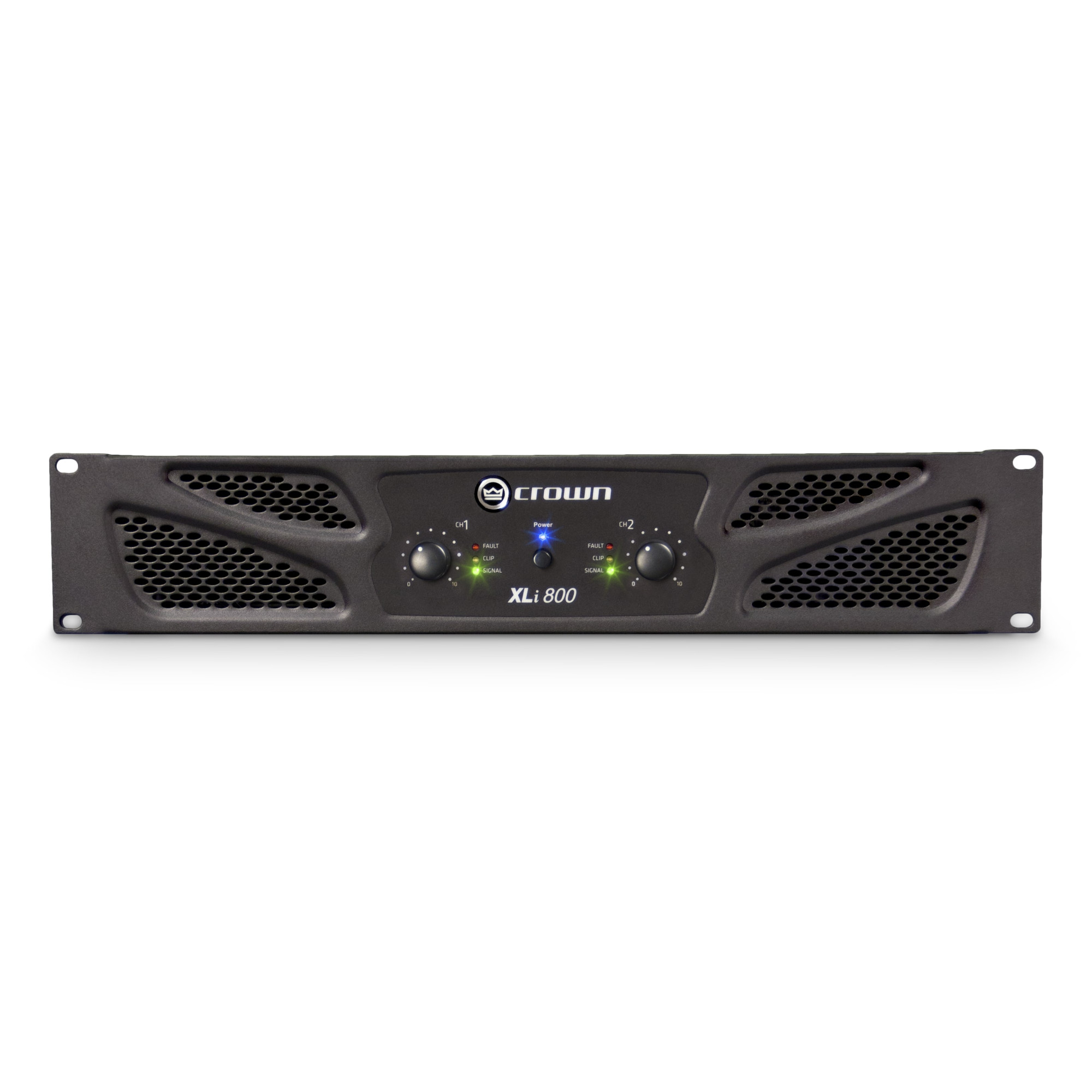

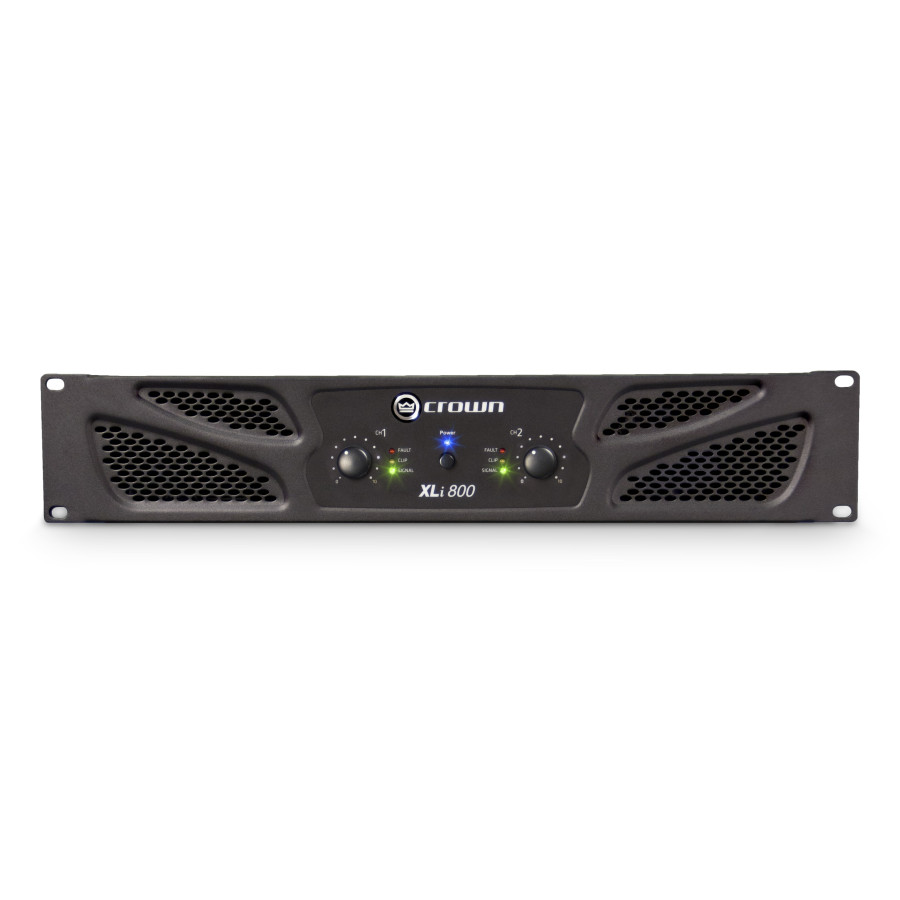

The front panel controls each channel's output level, a power button with indicator, input indicators, indicators for distortion exceeding level and indicators for each channel's malfunction, making the control of the amplifier intuitive and easy.

Features include also RCA and XLR inputs, user selectable input sensitivity of 0.755V or 1.4V, Speakon and binding post outputs, stereo/parallel/bridge-mono mode, power/fault/signal presence/clip indicators, forced-air cooling; and protection against shorts, no-load, on/off thumps and radio-frequency interference.

With over six decades of experience designing and building rock-solid products, Crown is the standard in amplifier technology. So check out the affordable Crown XLI Series. They are a powerful argument for quality and value.

Features

• Stereo/parallel/bridge-mono mode
• User selectable input sensitivity – 0.775V and 1.4V
• Electronically balanced RCA & XLR inputs; binding post and Speakon outputs
• Efficient forced-air cooling prevents excessive thermal buildup
• Two level controls, power switch, power LED, and six LEDs which indicate signal presence, clip and fault for each channel
• Protection against shorts, no-load, on/off thumps and radio-frequency interference
