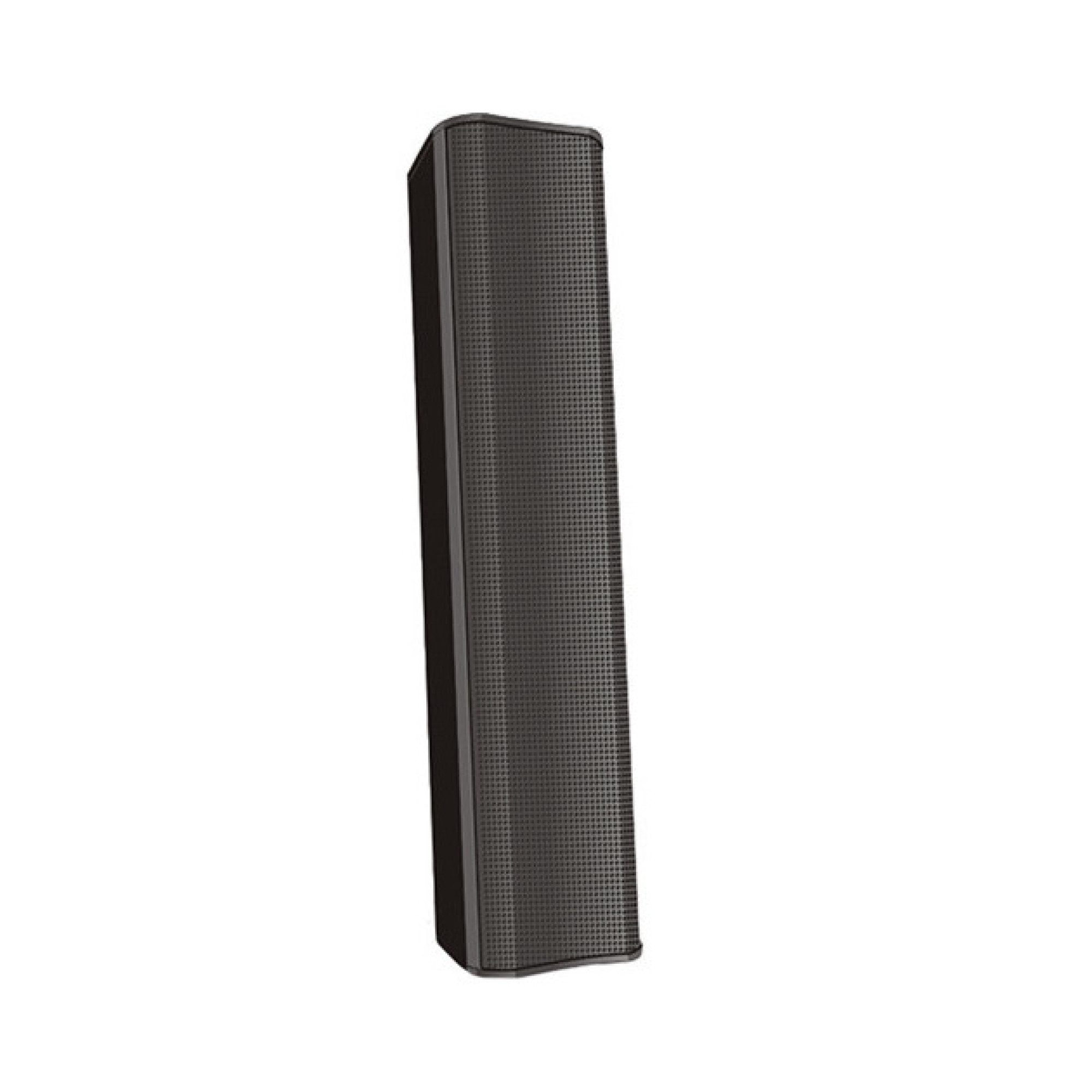

The QSC AcousticDesign™ AD-S802T (Black) is a high-quality loudspeaker equipped with eight 2.75-inch drivers. This system is ideal for use in acoustically challenging environments due to its performance and versatility.
The AD-S802T is designed to ensure consistent tonal balance across various installation types, including ceiling, wall, or pendant mounting. It features a durable aluminum enclosure with a powder-coated finish and is protected against weather conditions according to the IP-54 standard, ensuring reliability both indoors and outdoors. This model also includes a protective cover on the inputs, providing additional moisture protection.
The frequency range of the AD-S802T extends from 90 Hz to 17 kHz with a sensitivity of 87 dB SPL, delivering clear and powerful sound. The column loudspeaker supports both standard 8-ohm connections and transformer taps for 70V/100V systems, making it versatile for various audio setups. The rotational mounting option allows for a tilt angle adjustment of up to -20°, making installation even more convenient.
The AD-S802T also features an elegant and understated design and can be painted to meet specific requirements. The package includes mounting accessories, such as a sealed input cover, a Quick Hang Pan/Tilt wall bracket, and a safety tether anchor.
With its high performance, durability, and ease of installation, the QSC AD-S802T loudspeaker is an excellent choice for delivering quality sound in any condition.
Features
- Weatherproof loudspeaker with IP-54 rating
- Low-frequency drivers: 8 × 2.75" (70 mm)
- Effective frequency range (-10 dB): 90 Hz - 17 kHz
- Enclosure
- Material: Powder-coated aluminum
- Grille: Powder-coated aluminum
- Ingress protection: IP-54
- Operating temperature range: -20° to 50° C
- Transformer taps:
- 7.5 W (70 V); 15 W (100 V) Tap: 666 Ω
- 15 W (70 V); 30 W (100 V) Tap: 333 Ω
- 30 W (70 V); 60 W (100 V) Tap: 167 Ω
- 60 W (70 V); N/A (100 V) Tap: 83 Ω
- Bypass: 8 Ω
- Euroblock connector with loop-through output
- Included accessories: Sealed input cover plate with gland nut, Quick Hang Pan/Tilt wall bracket, and safety tether anchor
