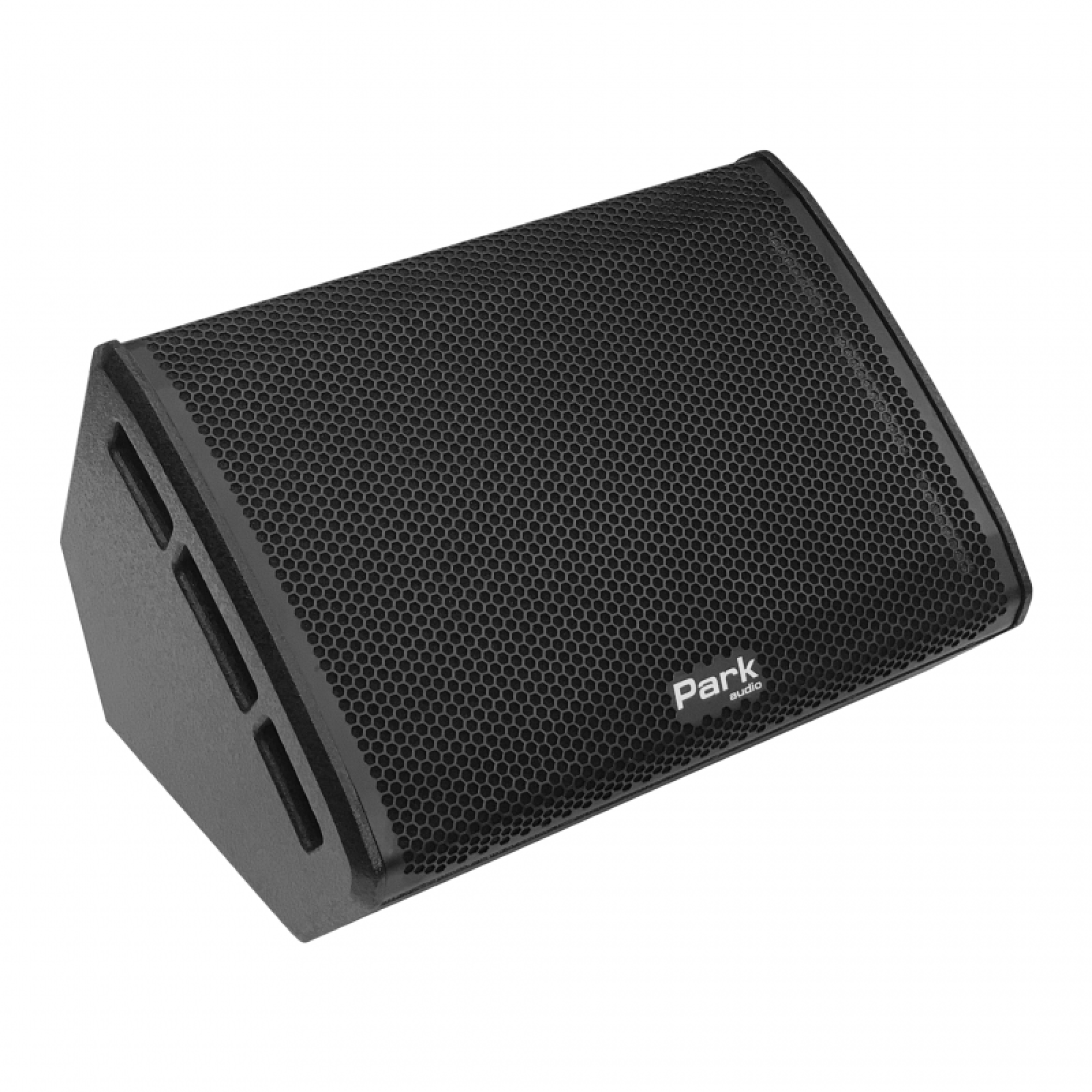

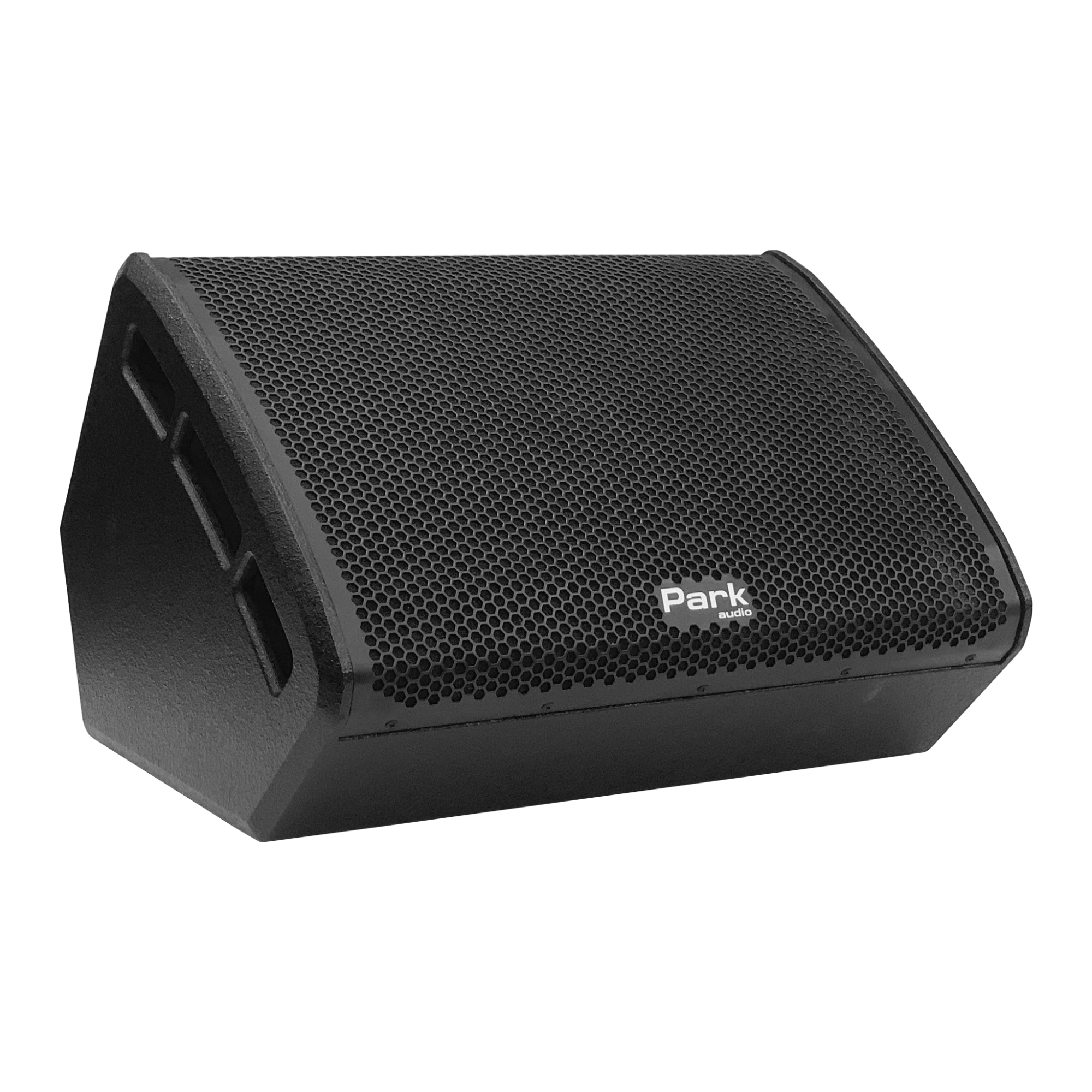

Passive monitor Park Audio SM124-8

The Park Audio SM124-8 passive monitor is a versatile loudspeaker designed for use as a floor stage monitor or as a satellite in subwoofer-satellite sound reinforcement systems. With its high power and compact design, it’s ideal for professional live sound applications.

This monitor features a 12" low-frequency driver from Italian brand LAVOCE ITALIANA rated at 300 W with a 2.5" voice coil, along with a 1" high-frequency driver from B&C Speakers. The SM124-8 has a frequency response from 67 Hz to 19 kHz and delivers a peak sound pressure level of up to 128 dB.

It offers a wide dispersion angle of 90° horizontal and 60° vertical. Thanks to its bass reflex acoustic design, the monitor delivers deep low-end response.

The enclosure is made from high-quality birch plywood and coated with a durable black water-polymer paint. The drivers are protected by a rugged perforated steel grille with a powder coating, complemented by acoustically transparent polyurethane foam on the inside for added moisture protection.

For easy transport, the unit includes ergonomic side handles. It also features a pole mount flange and two SpeakON connectors located on the rear panel.

The SM124-8 has a nominal power rating of 300 W (AES) and a program power rating of 600 W. Its sensitivity is 97.5 dB at 1 W/1 m.

Features

• Maximum peak SPL — 128 dB
• Frequency range: 67 Hz – 19 kHz
• 12” LF driver (LAVOCE ITALIANA), 300 W, 2.5” voice coil
• 1” HF driver (B&C Speakers) with 1” voice coil
• Dispersion: 90° (H) × 60° (V)
• Suitable as a satellite or stage floor monitor
• Bass reflex acoustic design
• Birch plywood enclosure
• Black water-polymer finish
• Powder-coated perforated steel grille
• Moisture protection — acoustically transparent polyurethane foam
• Pole mount flange
• Ergonomic handles for transport
• 2 SpeakON connectors on the rear panel
• Nominal power: 300 W (AES), program: 600 W
• Sensitivity: 97.5 dB (1 W, 1 m)
• Dimensions: 524 × 314 × 422 mm
• Weight — 16.5 kg
