Studio Tube Microphone Lewitt LCT 1040

All about product
Specification
Reviews
0
Questions
0
Information
Pre-order
Product Code: 22-07-19-01
Brand: Lewitt
Reviews: 0
Found cheaper?
150 457 ₴
Specifications: (See all)
Microphone Assignment
Universal
Microphone type
Condenser, externally polarized, lamp
Directional Pattern
Seamless from omni to wide cardioid, cardioid, supercardioid, figure-8
Connection Type
Wired
Microphone placement
On stand
Connector
10-pin Hirose Electric (microphone), Gold-plated 3-pin XLR by Neutrik (PSU and remote)
Description

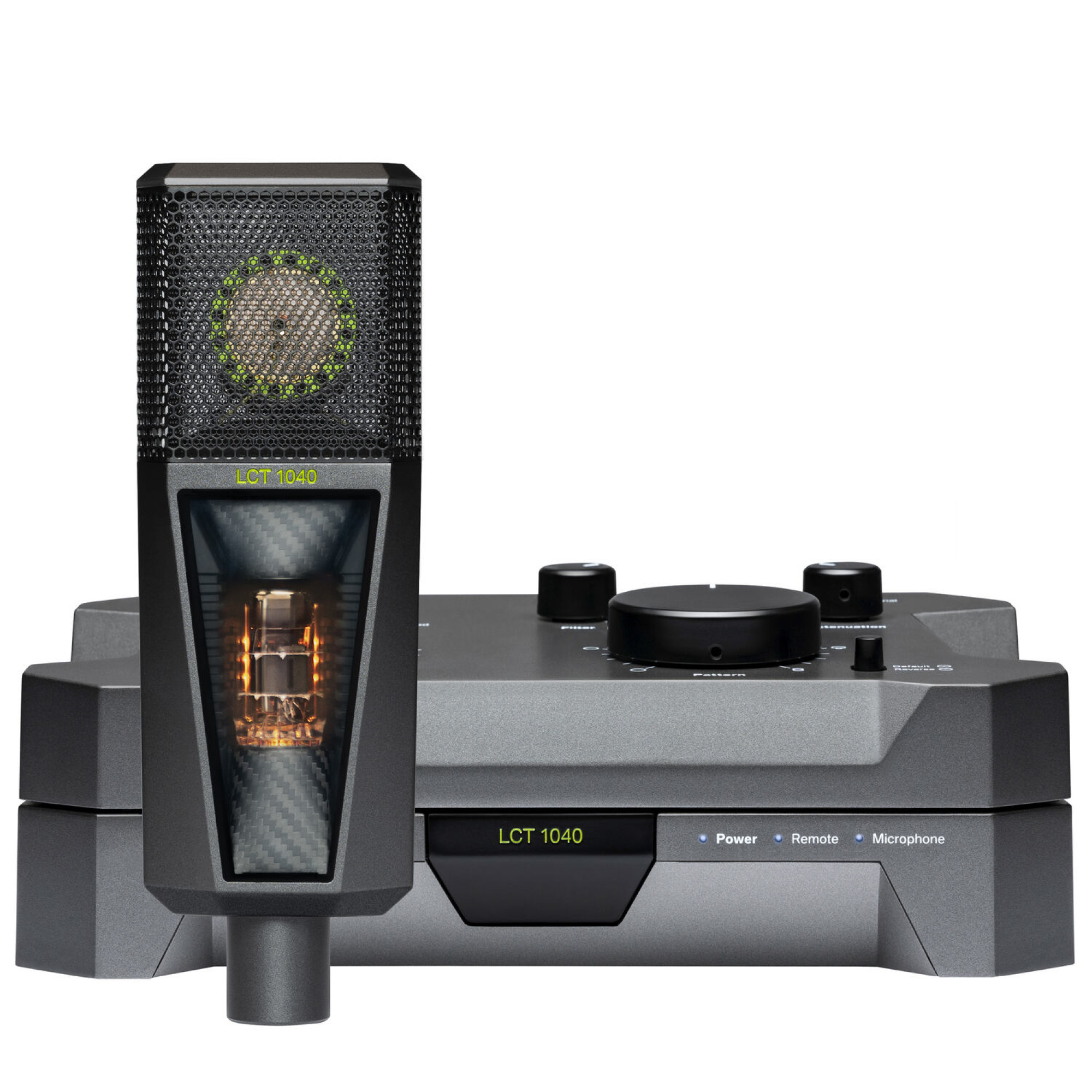

The Lewitt LCT 1040 is a premium microphone system that provides four different tube characteristics, allowing instrumental and vocal recordings to be enhanced with precisely the right characteristic for an individual, authentic tone. What is more, the LCT 1040's FET circuitry provides a crystal-clear sound that allows the signal to be stagelessly blended for more punch or precision. The microphone can also be set to different polar patterns, between which the transition can be made seamlessly. The system comprises a large-diaphragm condenser microphone with a power supply unit and a detachable remote controller. The latter can be used to adjust the sound of the microphone from the mixing room while the microphone is being used in the tracking room.

Features

  • Studio centerpiece – adapt to any sound source
  • 4 all-analog tube characteristics – Clear, Warm, Dark, and Saturated
  • Developed in close cooperation with Grammy-winning studio professionals
  • Detachable remote control for unrivaled workflow
  • Blendable FET circuit and seamless polar pattern control

Imagine getting the perfect sound every time

Like a painter who uses his color palette, the LCT 1040 gives you the power to create the sound you envision.

  • Record with premium sound from high-end components and 1" true condenser capsule
  • Create the perfect sound for different vocalists and instruments using 4 all-analog tube characteristics and a crystal-clear FET circuit
  • Adjust all settings from your sweetspot via the remote control

Developed in close cooperation with world-renowned engineers and producers

During the development process of the LCT 1040, we set out to see Grammy award-winning engineers and producers in their fantastic studios to put our prototypes to the test in real-life conditions.

The additional feedback from the global audio community ranging from friendly appreciation to brutal honesty was exactly what we needed to bring this exciting project to perfection.

A wide range of outstanding tube tones with a single microphone

  • Clear – Tube works at technical optimum
  • Warm – Smooth and pleasant high-end
  • Dark – Tamed highs for bright sources
  • Saturated – Rich harmonics and subtle compression

Together, these 100% all-analog tube characteristics are designed to cover all applications and styles recorded in the studio - from the finest violin to roaring Rock voices.

They are the result of our close cooperation with industry professionals and the global audio community.

Extra punch and precision with the blendable FET circuit

Tweak your sound to perfection. You can dial in the FET circuit via the Circuit control whenever you're looking for that extra punch or precision for your voice or instrument.

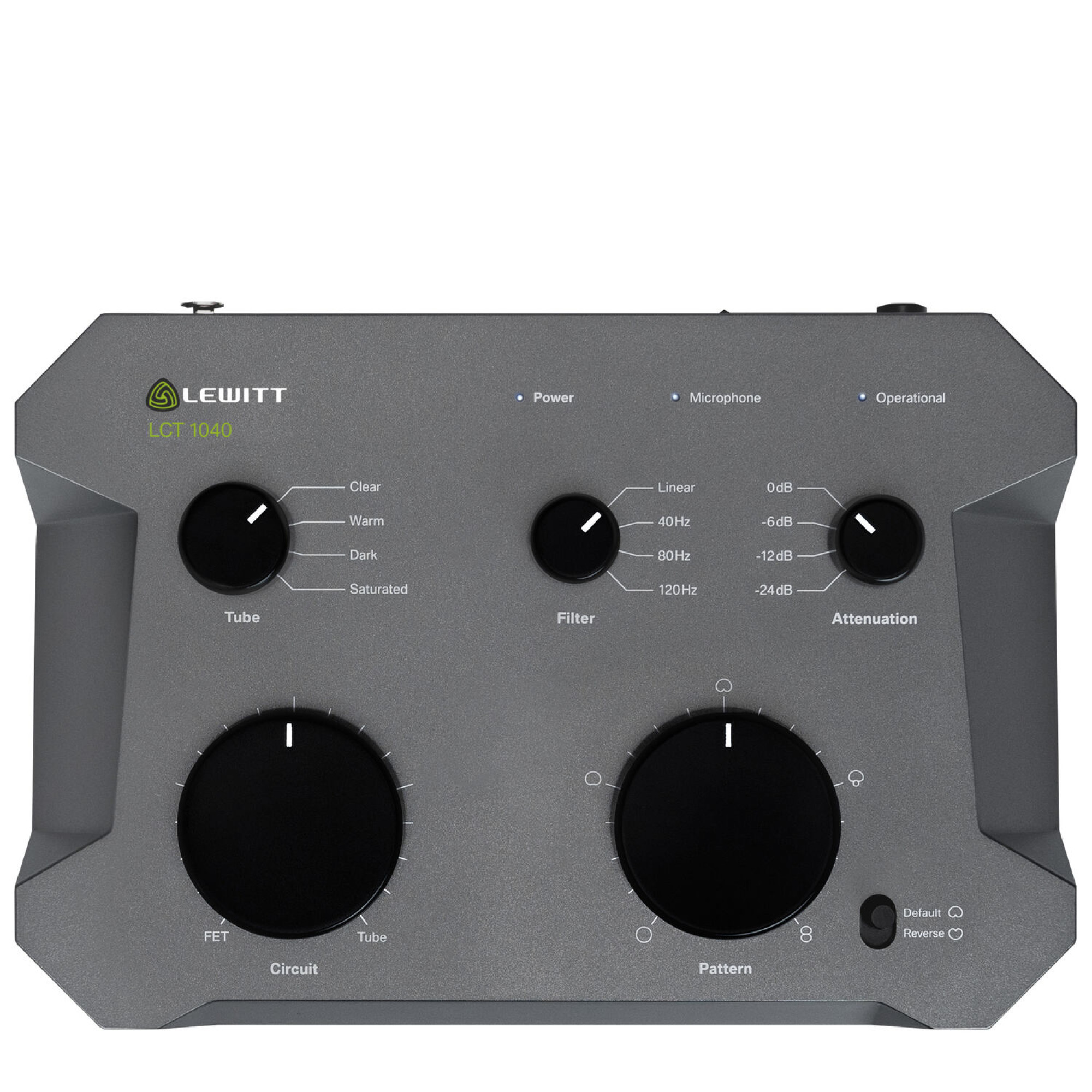

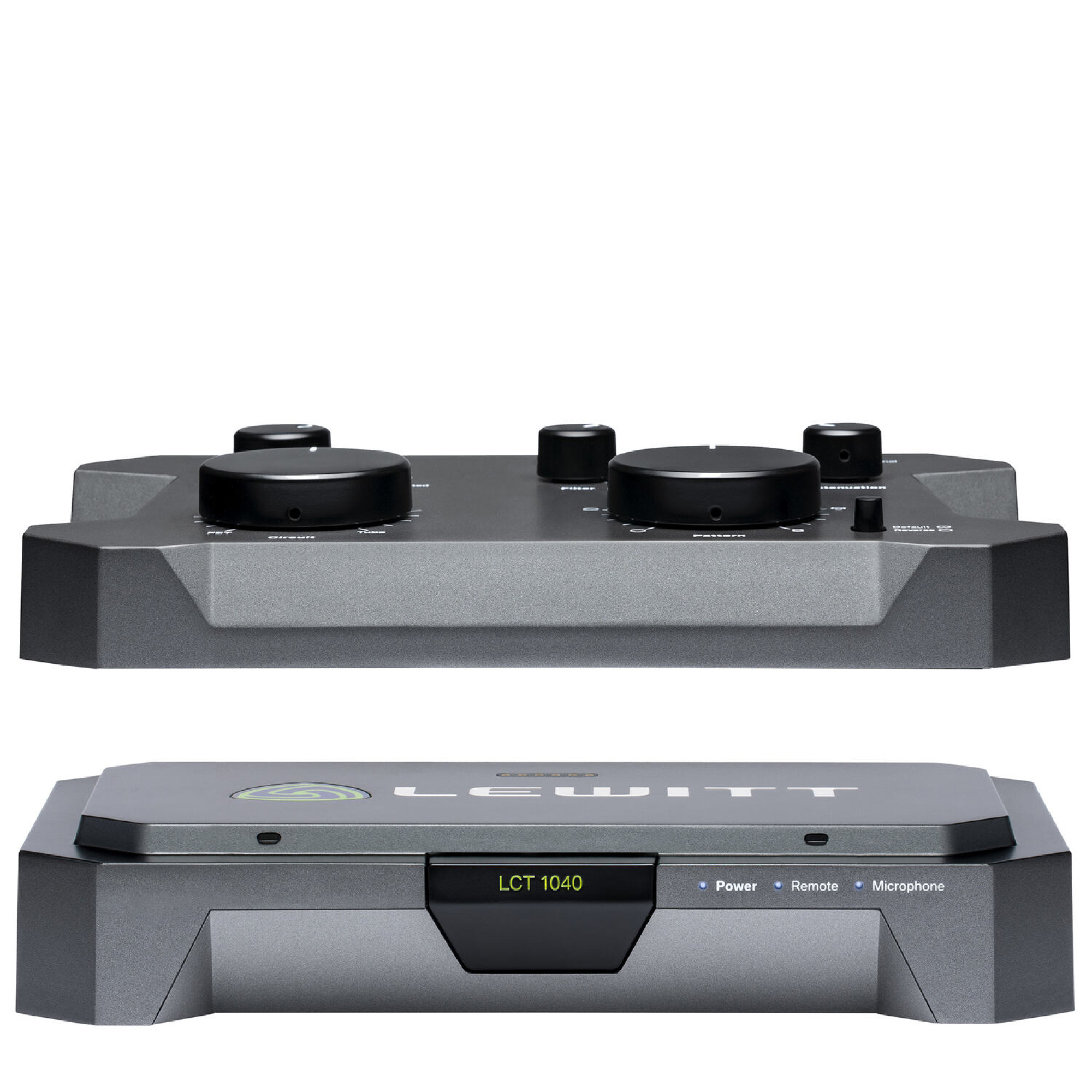

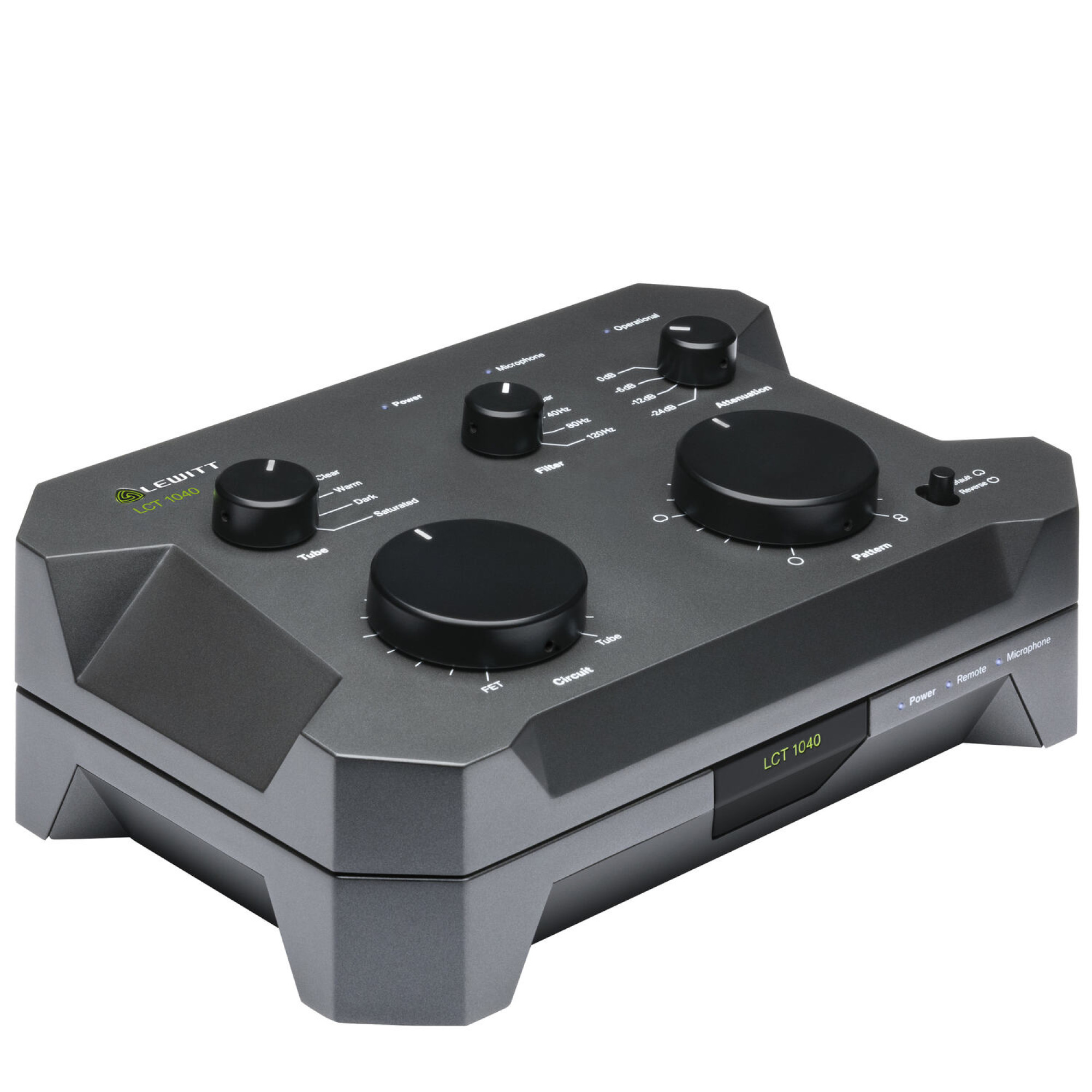

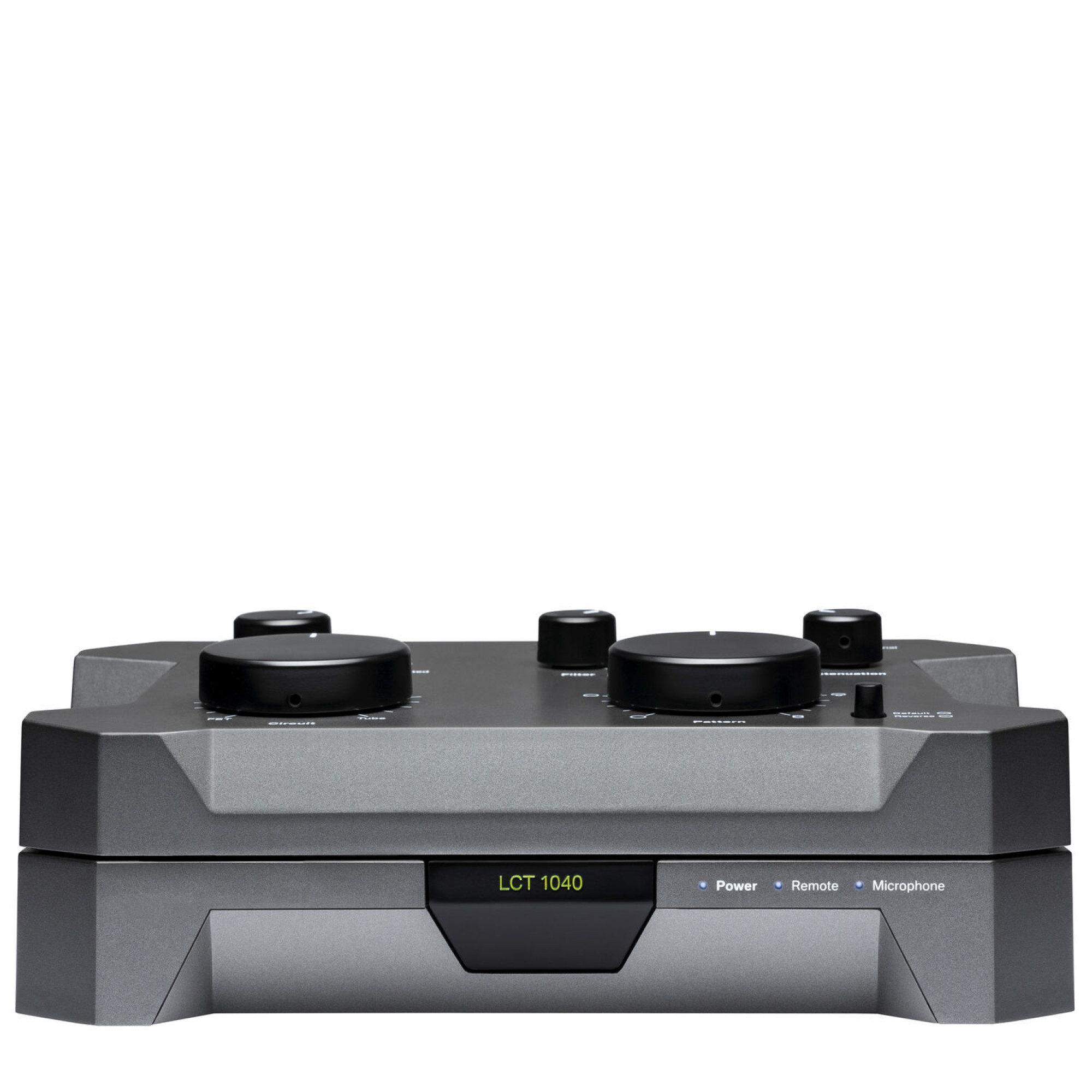

Tweak all settings from your sweetspot via the remote control

Set up the LCT 1040 in the recording room where the artist performs. Detach the remote control from the PSU and connect them via your standard 3-pin XLR cable. Now you can tweak all settings from your sweetspot via the remote control, ensuring a smooth-running session.

Save precious time, keep the creativity flowing, giving you exactly the sound you are looking for.

Seamless polar pattern control to get exactly what you want

Set the directivity with the seamless polar pattern control of the LCT 1040, giving you exactly what you were looking for. Additionally, you can also freely define the front of the mic depending on your recording scenario.

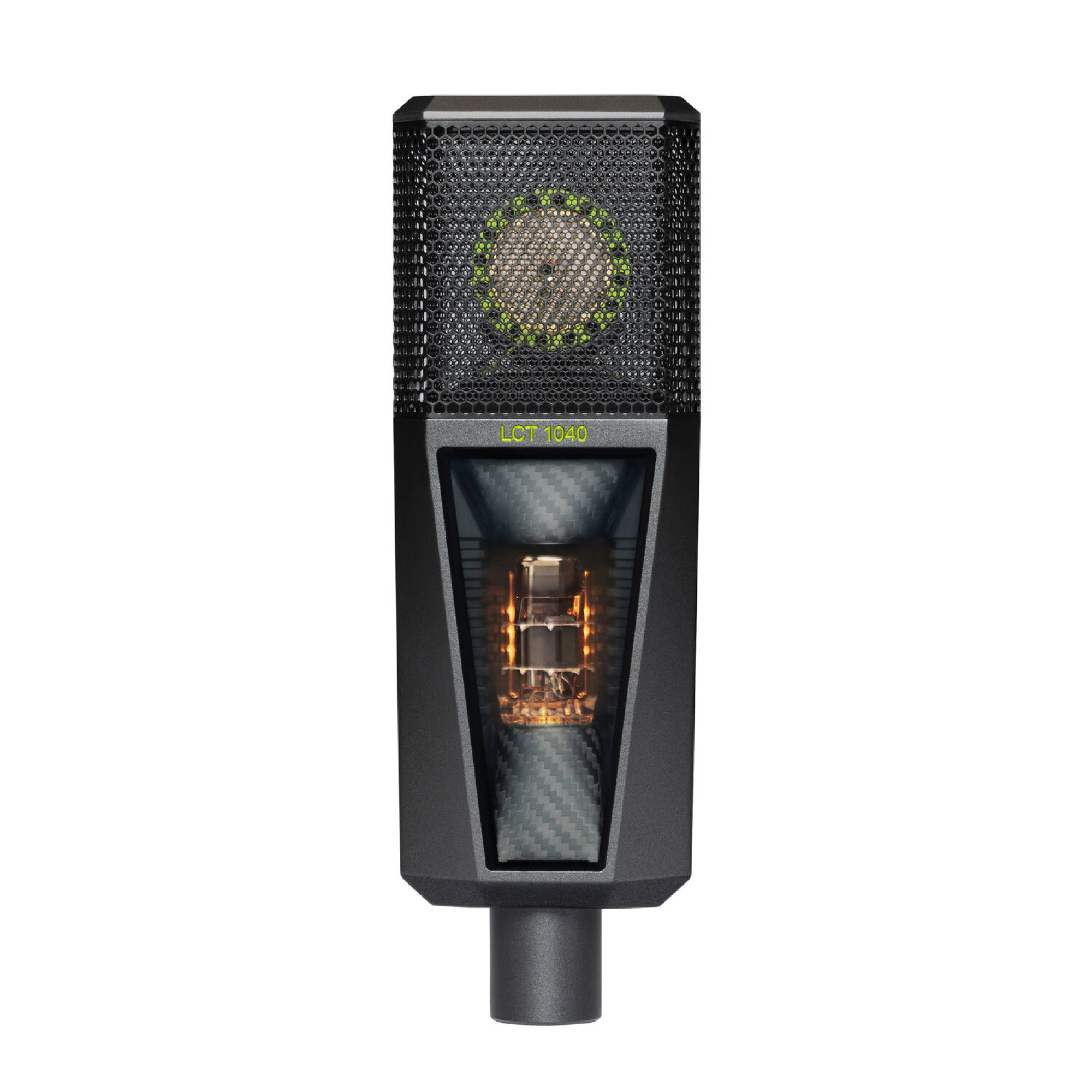

  • Default sets the tube window as the front side of the mic

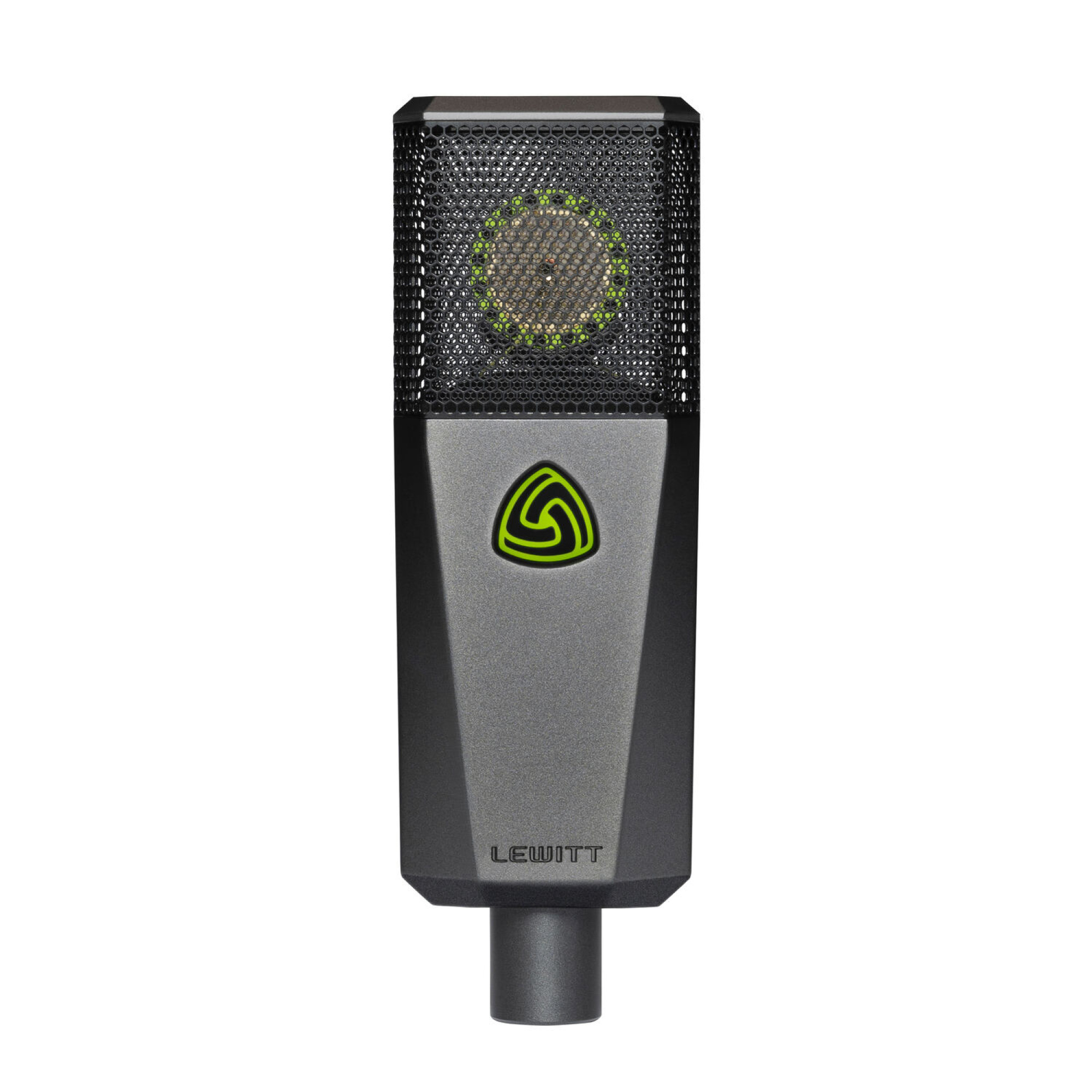

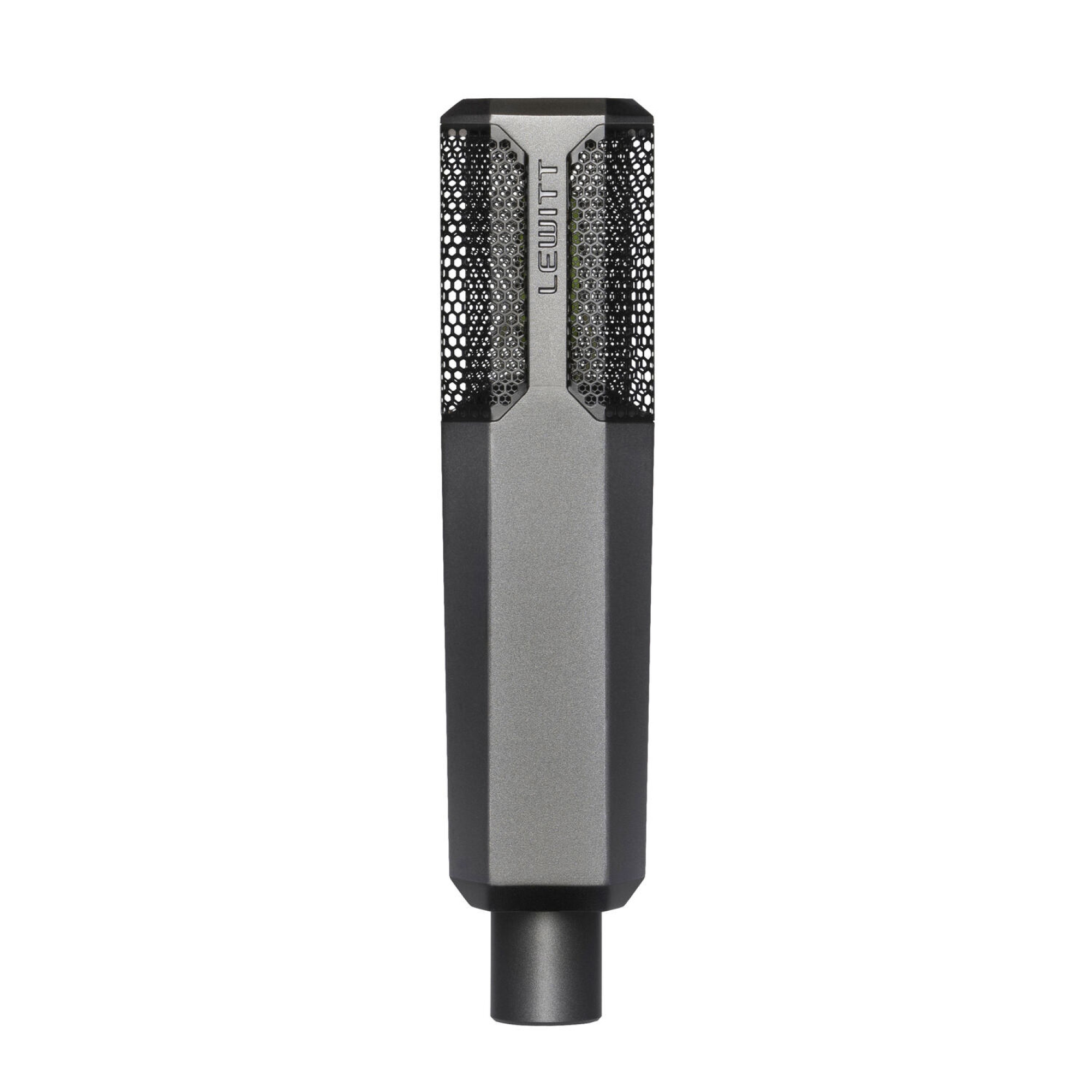

  • Reverse sets the logo as the front of the mic

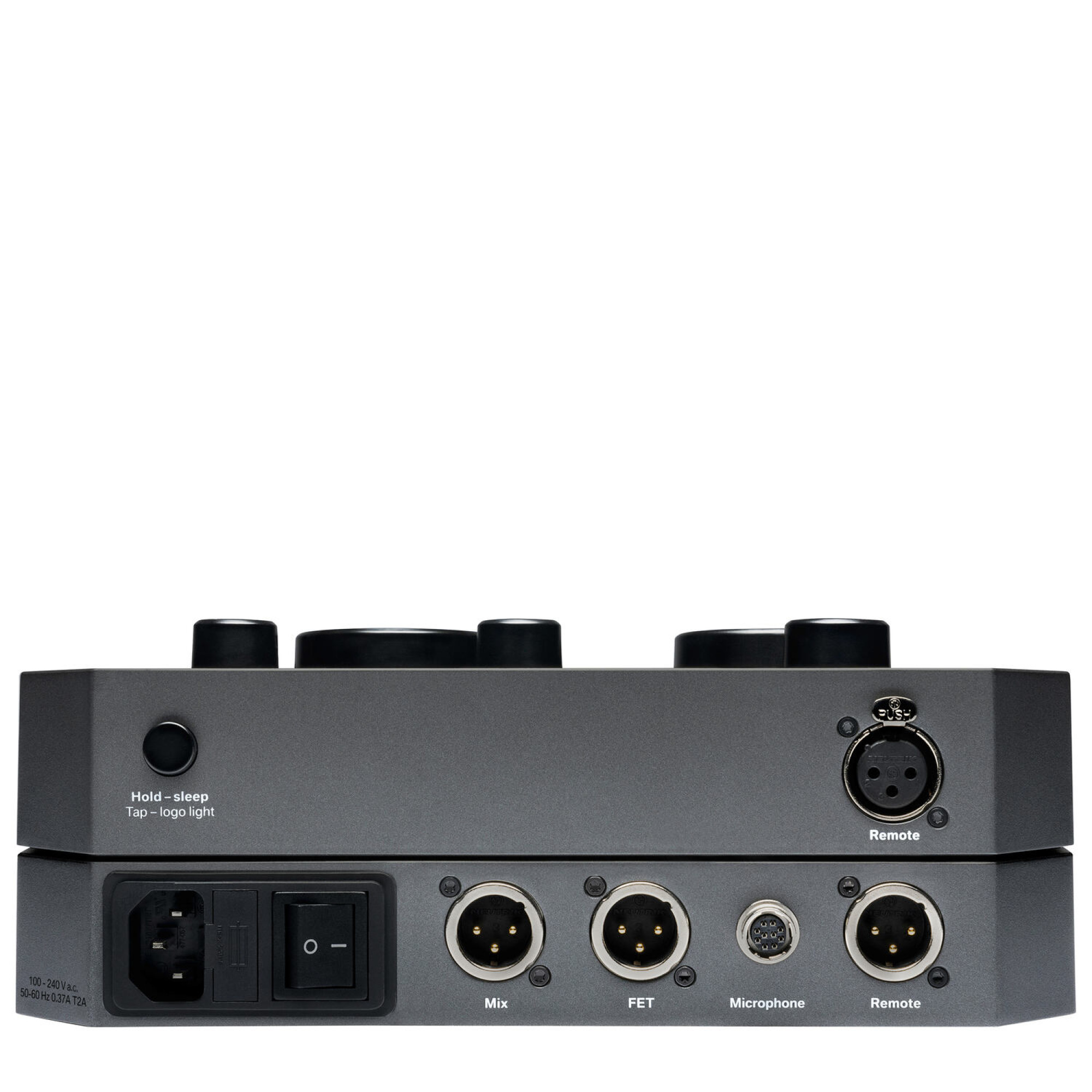

Two XLR outputs for full flexibility in post production

To prepare you for all possible scenarios, the LCT 1040 features two XLR outputs with Neutrik connectors.

  • The Mix output delivers the ratio set with the Circuit control, a combination of the tube and FET circuit
  • The FET output delivers 100% pure FET independent from the Circuit control

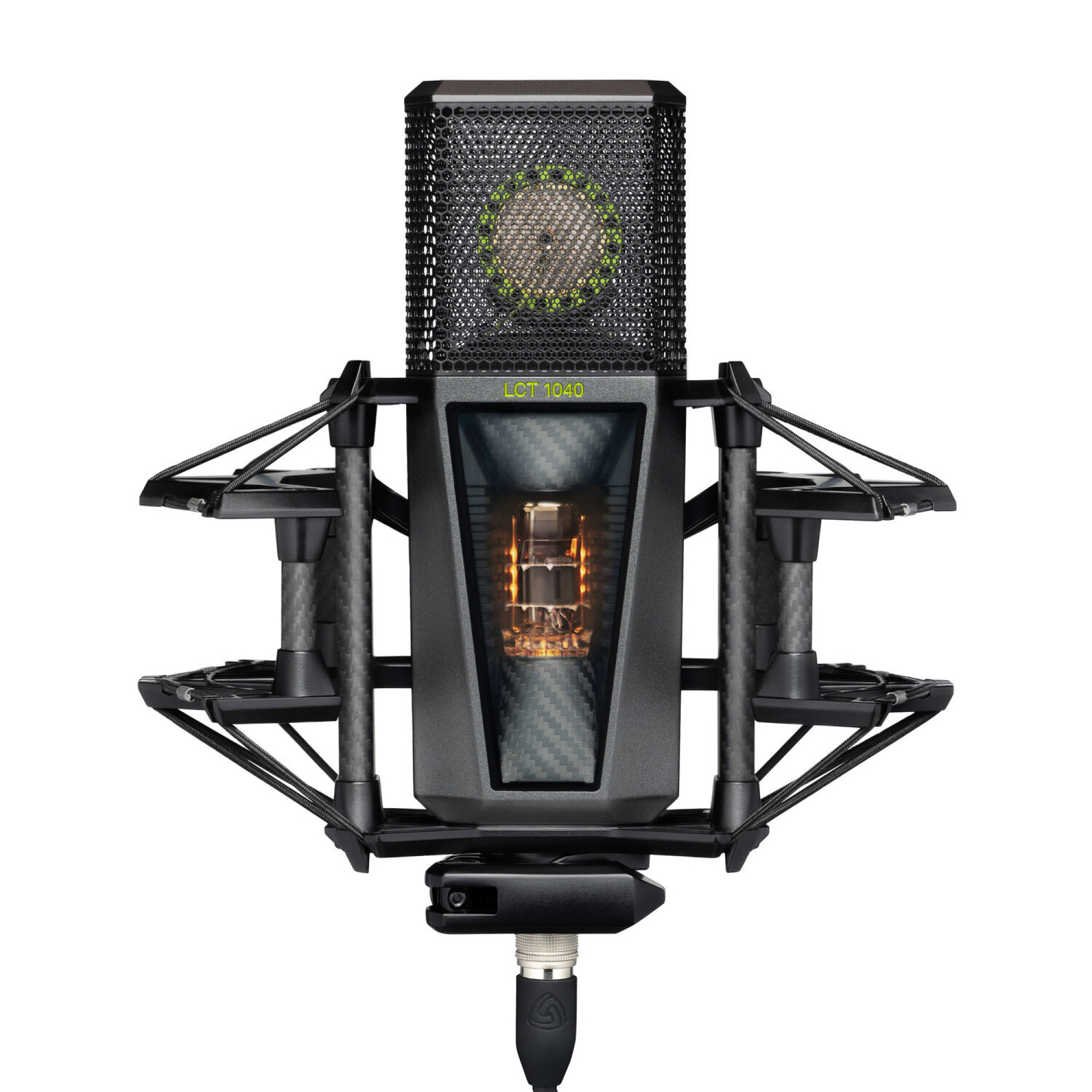

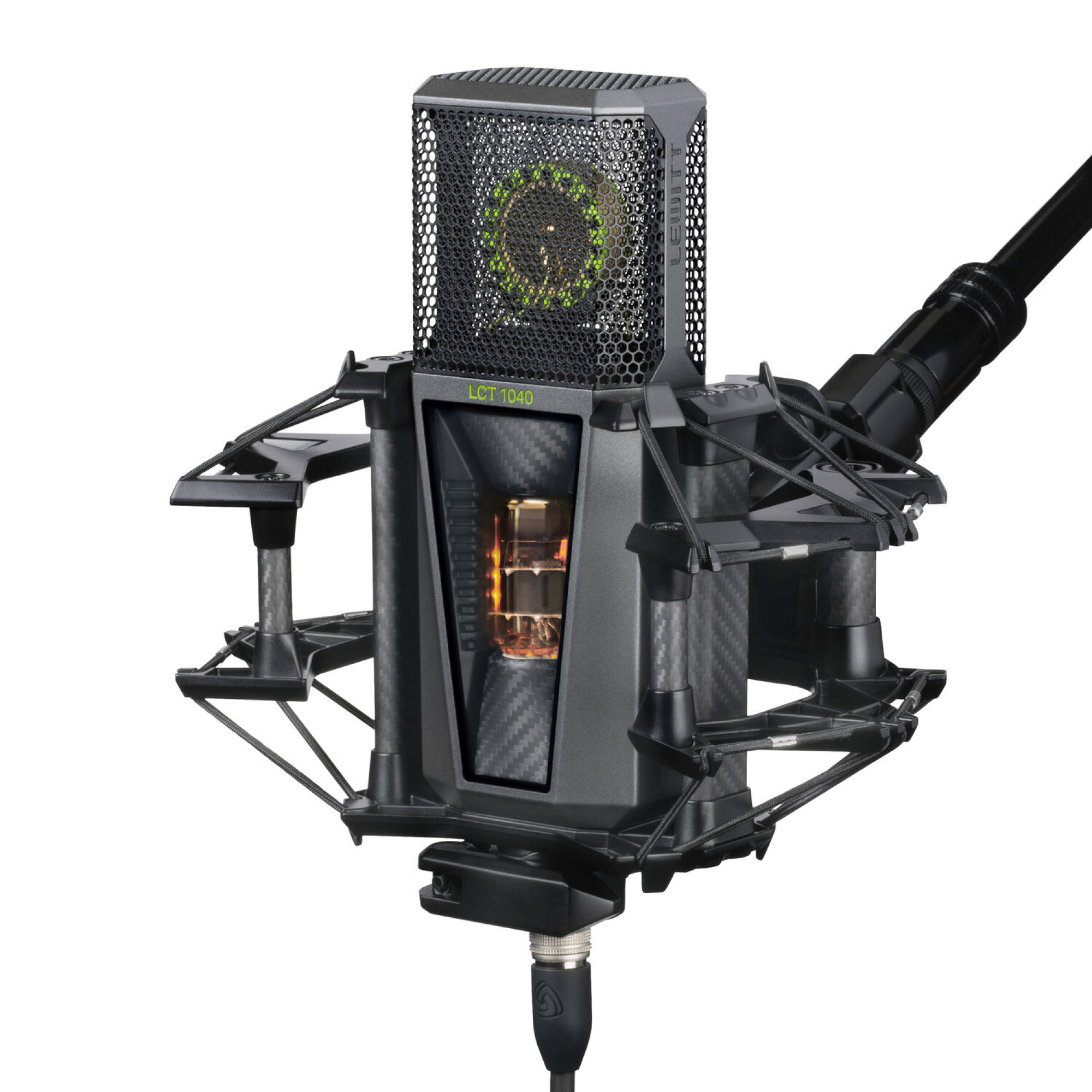

Shock mount with carbon fiber elements and quick release mechanism

  • Quick release mechanisms for the microphone and the adjustment of the angle
  • Carbon fiber elements support efficient decoupling of the microphone
  • Microphone can be turned by 360° when in shock mount

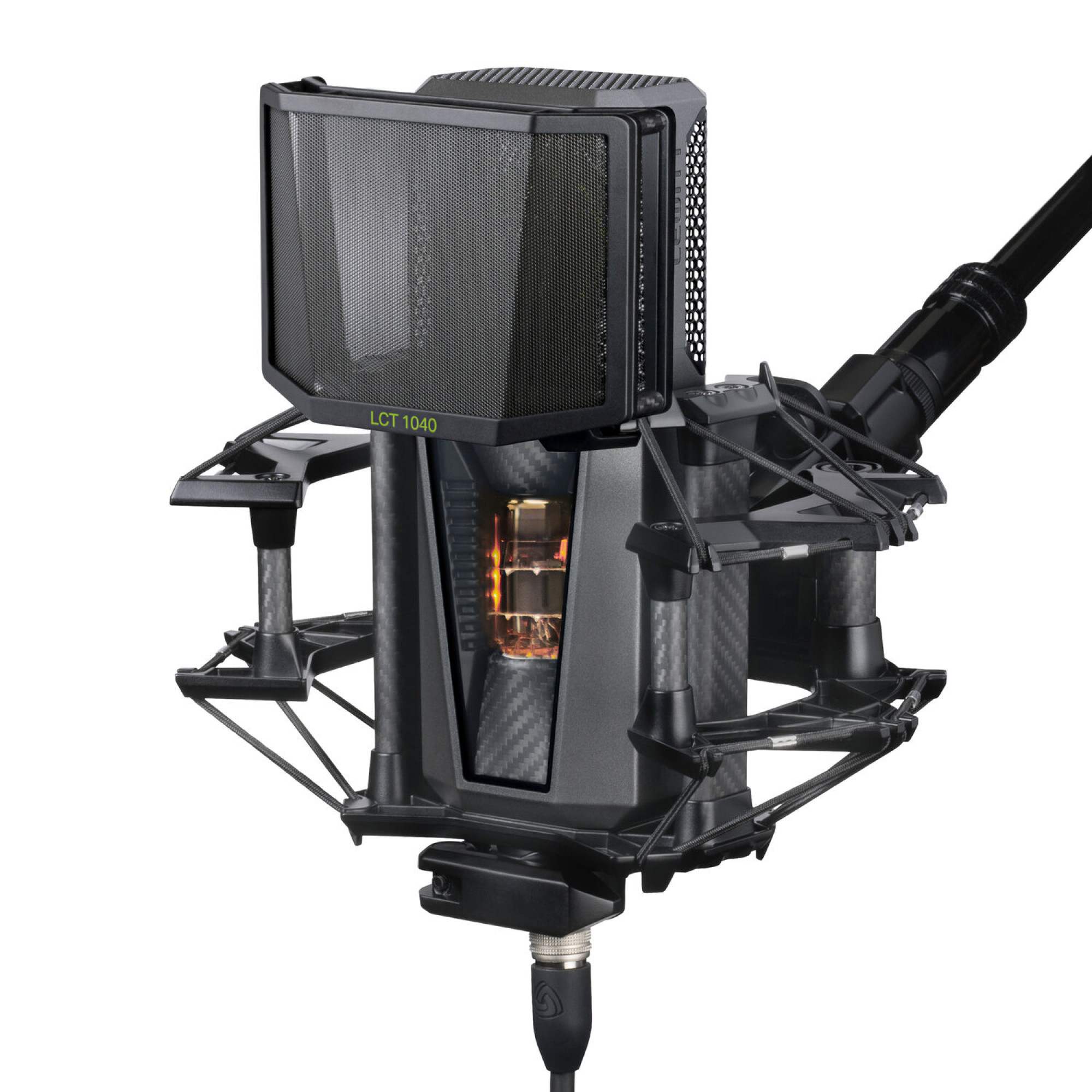

Dual-layer magnetic pop filter for clean recordings

The high-performance magnetic pop filter of the LCT 1040 protects your capsule from unwanted plosives and moisture. Its double-layer design perfectly integrates with the shock mount and ensures clean recordings with any vocalist or genre.

Video review of LCT 1040 from Youtube channel Higher HZ:

Features

  • Perfect studio microphone – suitable for any sound source
  • 4 fully analog tube characteristics: Clear, Warm, Dark, Saturated
  • Developed in collaboration with Grammy award winners
  • Detachable remote control for convenient workflow
  • Ability to blend FET and tube circuits
  • Stepless polar pattern adjustment
  • High sensitivity: 17.2 mV/Pa
  • Low self-noise: 10 dB (FET), 13 dB (tube)
  • Wide dynamic range: 127 dB (A-weighted)
  • Maximum sound pressure level: 137 dB SPL
  • Adjustable attenuator: 0 / -6 / -12 / -24 dB
  • Three low-cut filters: 40 Hz, 80 Hz, 120 Hz
  • Gold-plated 3-pin Neutrik XLR connector
  • High-quality die-cast zinc body
  • Precise control and power supply via separate power supply unit and remote

Sound samples recorded with Lewitt LCT 1040 microphone

Female vocals – LCT 1040 – FET
Female vocals – LCT 1040 – Tube Clear
Female vocals – LCT 1040 – Tube Warm
Female vocals – LCT 1040 – Tube Dark
Female vocals – LCT 1040 – Tube Saturated
Male rap – LCT 1040 – FET
Male rap – LCT 1040 – Tube Clear
Male rap – LCT 1040 – Tube Warm
Male rap – LCT 1040 – Tube Dark
Male rap – LCT 1040 – Tube Saturated
Acoustic guitar – LCT 1040 – Tube Clear
Acoustic guitar – LCT 1040 – Tube Warm
Acoustic guitar – LCT 1040 – Tube Dark
Acoustic guitar – LCT 1040 – Tube Saturated
Piano – LCT 1040 – FET
Piano – LCT 1040 – Tube Clear
Piano – LCT 1040 – Tube Warm
Piano – LCT 1040 – Tube Dark
Piano – LCT 1040 – Tube Saturated
Piano improvisation – LCT 1040
Drums – LCT 1040 – FET
Drums – LCT 1040 – Tube Clear – Cardioid
Drums – LCT 1040 – Tube Warm – Cardioid
Drums – LCT 1040 – Tube Dark – Cardioid
Drums – LCT 1040 – Tube Saturated – Cardioid
Drums – LCT 1040 – Tube Saturated – Figure-8
Drums – LCT 1040 – Tube Saturated – Omni
Drum solo – LCT 1040 – Tube Saturated – Cardioid

Polar Pattern Chart

Omnidirectional

Wide Cardioid

Cardioid

Supercardioid

Figure-8

Reviews from International Experts and Press

“You will definitely be left with a smile after using it. And it’s not just about its sound (which is truly impressive), but how easily you achieve the desired tone and how convenient it is.” — Matt Anderson

“We love the LCT 1040 system. Even if it existed only with the FET output, it would already be a world-class product; but thanks to the tube circuit, it steps up to a completely different league.” — John Pickford

“The LEWITT LCT 1040 is an example of top-notch industrial design. Its manufacturing, performance, and attention to detail are at the highest level.” — Paul Vnuk Jr.

“An excellent choice for those looking to elevate the quality of their audio recordings to a new level.” — Burak Atas

“Incredibly impressive, versatile, ultra-high-quality microphone with unique features.” — Hugh Robjohns

User manual



Specifications
[SE] Microphones and Wireless
Microphone Assignment
Universal
Microphone type
Condenser, externally polarized, lamp
Directional Pattern
Seamless from omni to wide cardioid, cardioid, supercardioid, figure-8
Connection Type
Wired
Microphone placement
On stand
Connector
10-pin Hirose Electric (microphone), Gold-plated 3-pin XLR by Neutrik (PSU and remote)
Resistance
83.8 Ohm (internal)
Frequency Response
20 Hz - 20 kHz
Sensitivity
17.2 mV/Pa, -35.3 dBV/Pa
Equivalent noise level
10 dB (A) FET, 13 dB (A) tube
Signal to noise ratio
84 dB (A) FET, 81 dB (A) tube
Marking
Dimensions, mm
196 x 65 x 45 (Microphone), 240 x 170 x 47 (PSU), 240 x 163 x 52 (Remote)
Weight, kg
0.652 (Microphone), 2.381 (PSU), 1.952 (Remote)
Equipment

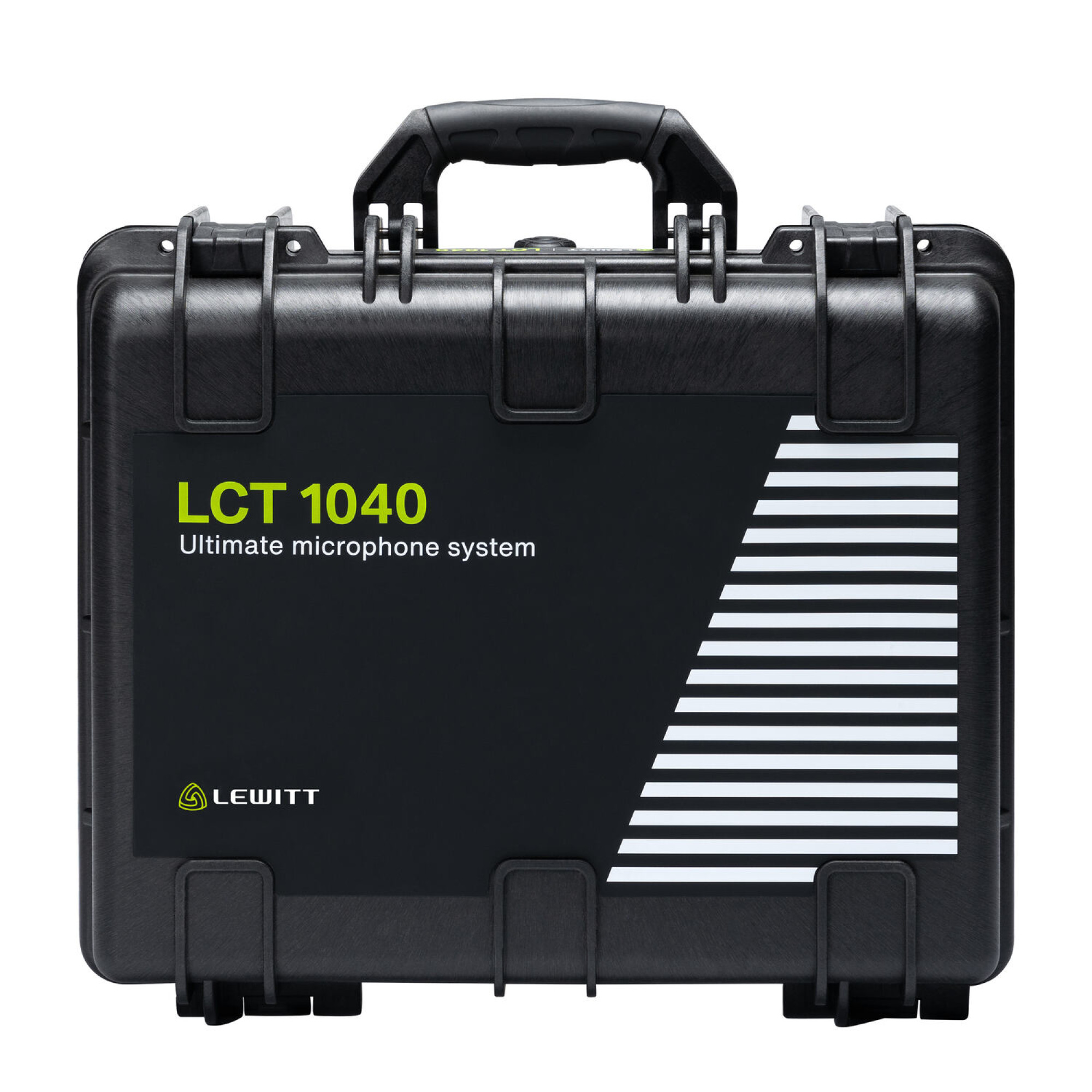

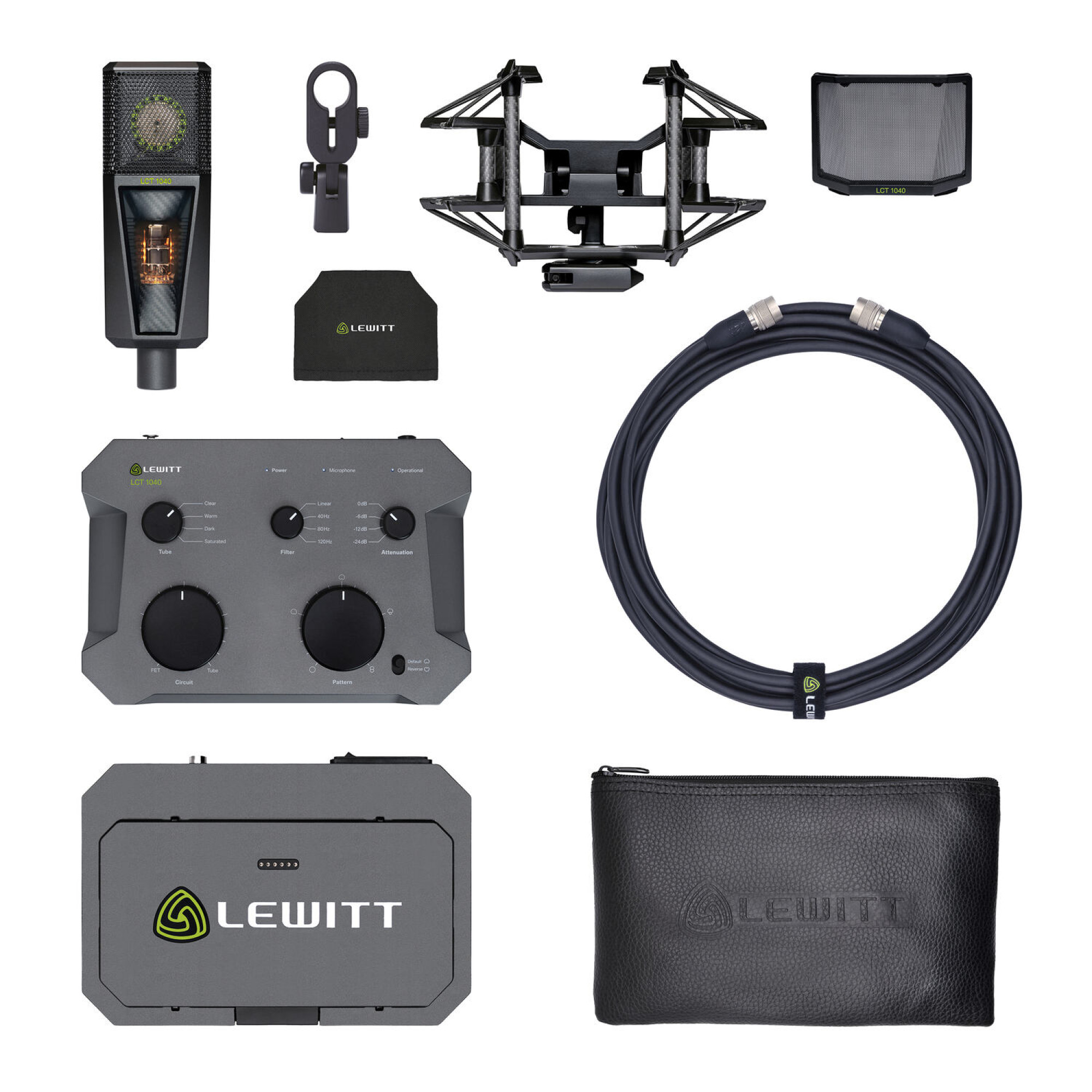

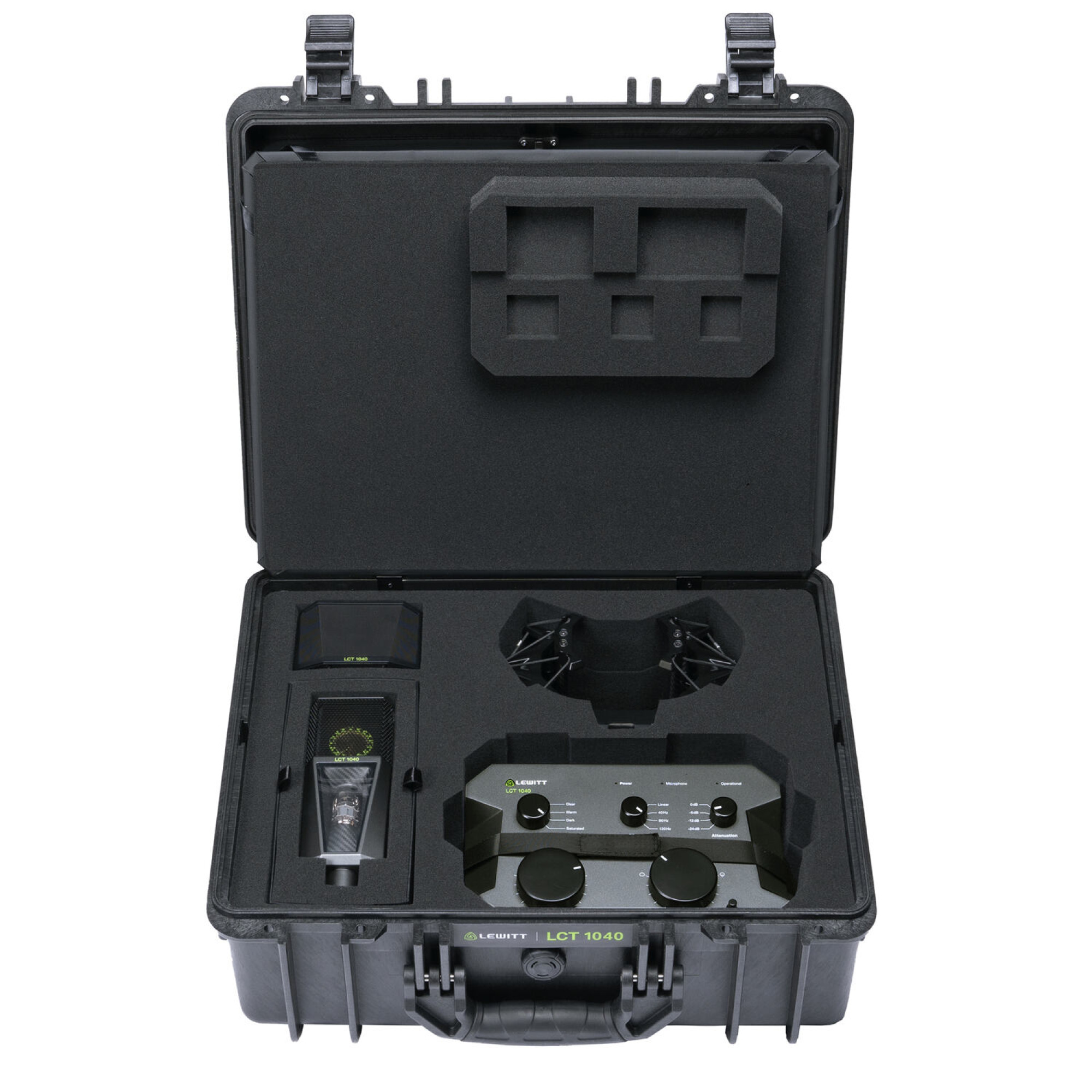

PSU, Remote, Case, 2 bags for PSU and Remote, anti-vibration "spider", dual magnetic pop filter, stand holder, microphone dust hat, cable set, user manual
Warranty, month
120 (from the manufacturer)
Color
Black
Brand Registration Country
Austria
Country of origin
China
