All-weather passive PA speaker Electro-Voice SX600PIX (with transformer)

All about product
Specification
Reviews
0
Questions
0
Information
Pre-order
Product Code: Sx 600PIX
Brand: Electro-Voice
Reviews: 0
Found cheaper?
317 145 ₴
Specifications: (See all)
Type
Wall-mounted
Body Material
High density polymer
Number of Way
3
Woofer, inch
12
Tweeter, inch
2
Power, W
600 (nominal), 2400 (peak)
Description

The Electro-Voice Sx600PIX is a weatherproof passive speaker system that delivers powerful full-range sound reinforcement in a variety of indoor and outdoor venues such as stadiums and arenas. Dual 12" woofers and a 2" titanium diaphragm high-frequency compression driver are housed in a vertical array with Varipath constant directivity horn for even coverage. This highly sensitive, high SPL system has a continuous output of 600 watts and a peak output of 2400 watts. The input signal fed to the loudspeakers by the waterproof SJO cable with gland nut is fed to the internal crossover which properly distributes the frequencies between the loudspeakers. The SuperSAM mounting system provides flexible vertical and horizontal adjustment of the weatherproof polymer enclosure. The built-in transformer provides compatibility with DC systems (distributed lines) operating at 70, 100, 140 or 200 volts.

Features

  • High-performance indoor/outdoor loudspeaker with dual-element vertical array for improved vertical control and intelligibility
  • The transformer supports various power options: 70, 100, 140 or 200 volts
  • Dual 12" woofers and 2" titanium diaphragm high-frequency compression driver
  • Molded constant directivity horn with Varipath throat geometry provides a 65° x 65° beam pattern
  • High sensitivity 105dB and high maximum SPL 138dB

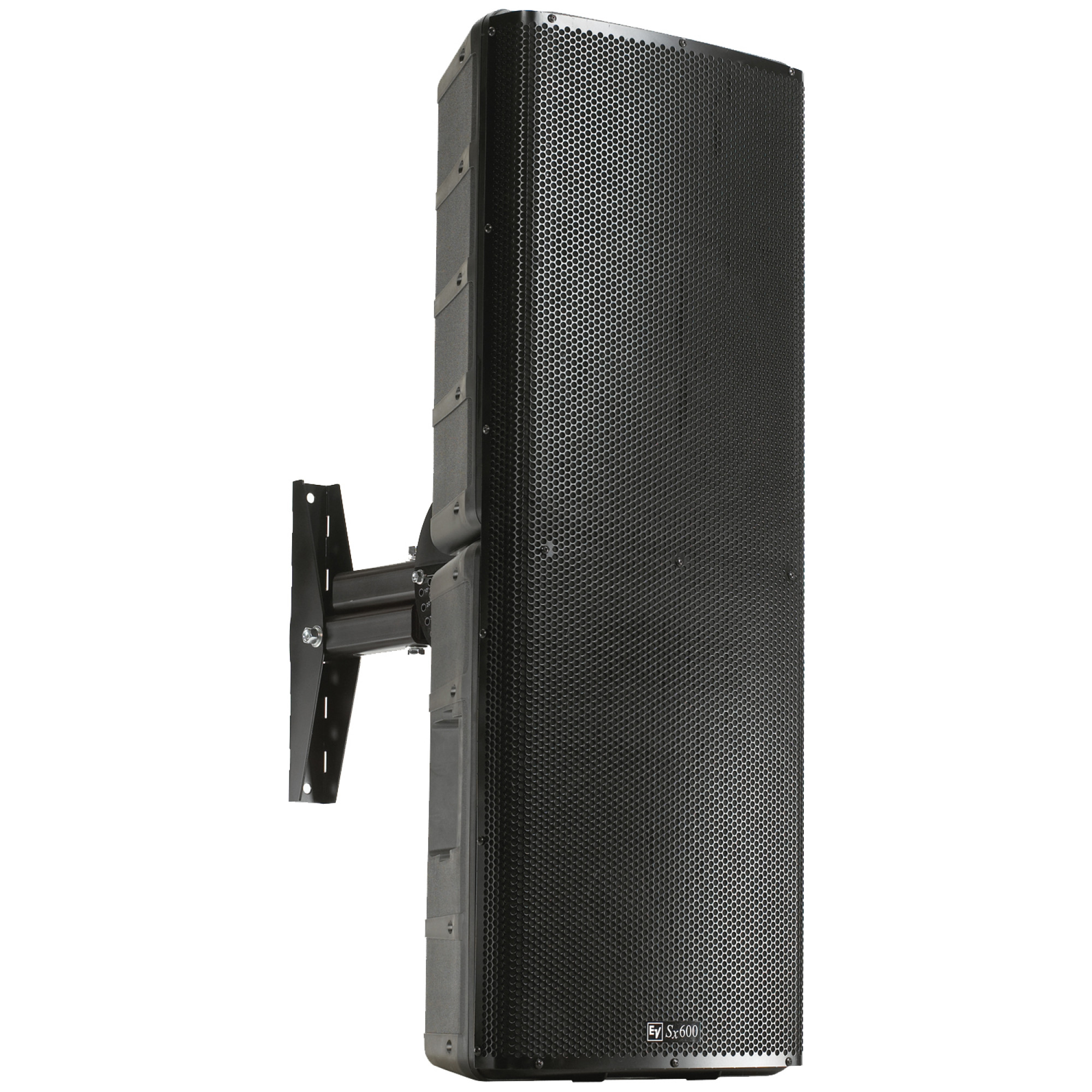

  • Universal SuperSAM mounting system provides 60° vertical and 180° horizontal adjustment
  • Lightweight molded polymer body with integrated handles for easy placement and portability
  • Multi-layered stainless steel grille for protection against rain, splash water and dust, IP44 rating, in accordance with MIL-STD-810 specifications
  • Certification EN54-24 Type B 1438-CPD-0300 for public address systems

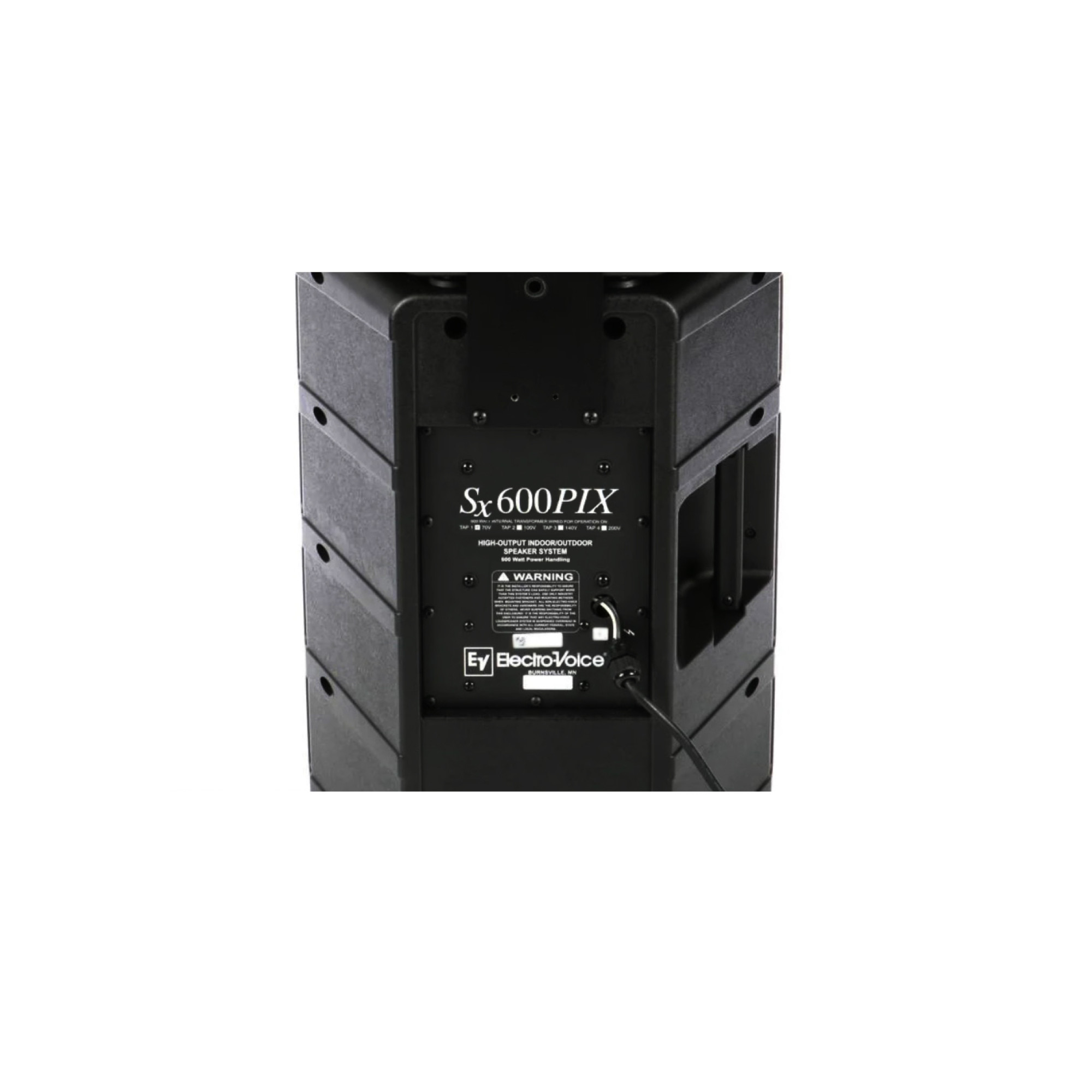

  • Waterproof connection with SJO cable with gland nut

User manual

Specifications
[SE] Installation Acoustics
Type
Wall-mounted
Body Material
High density polymer
Number of Way
3
Woofer, inch
12
Tweeter, inch
2
Power, W
600 (nominal), 2400 (peak)
Coverage
65° x 65°
Frequency Range
70 Hz - 19 kHz
Sensitivity, dB
105 (SPL 1W/1m)
Sound Pressure Level, dB
138
Connectors
SJO cable
Impendance, Ohm
3.5 (minimum), 4 (nominal)
Marking
Dimensions, mm
1163 x 429 x 312
Weight, kg
36.3
Warranty, month
12
Color
Black
Brand Registration Country
USA
Country of origin
China
