Active PA Speaker FBT VERTUS CLA 406A

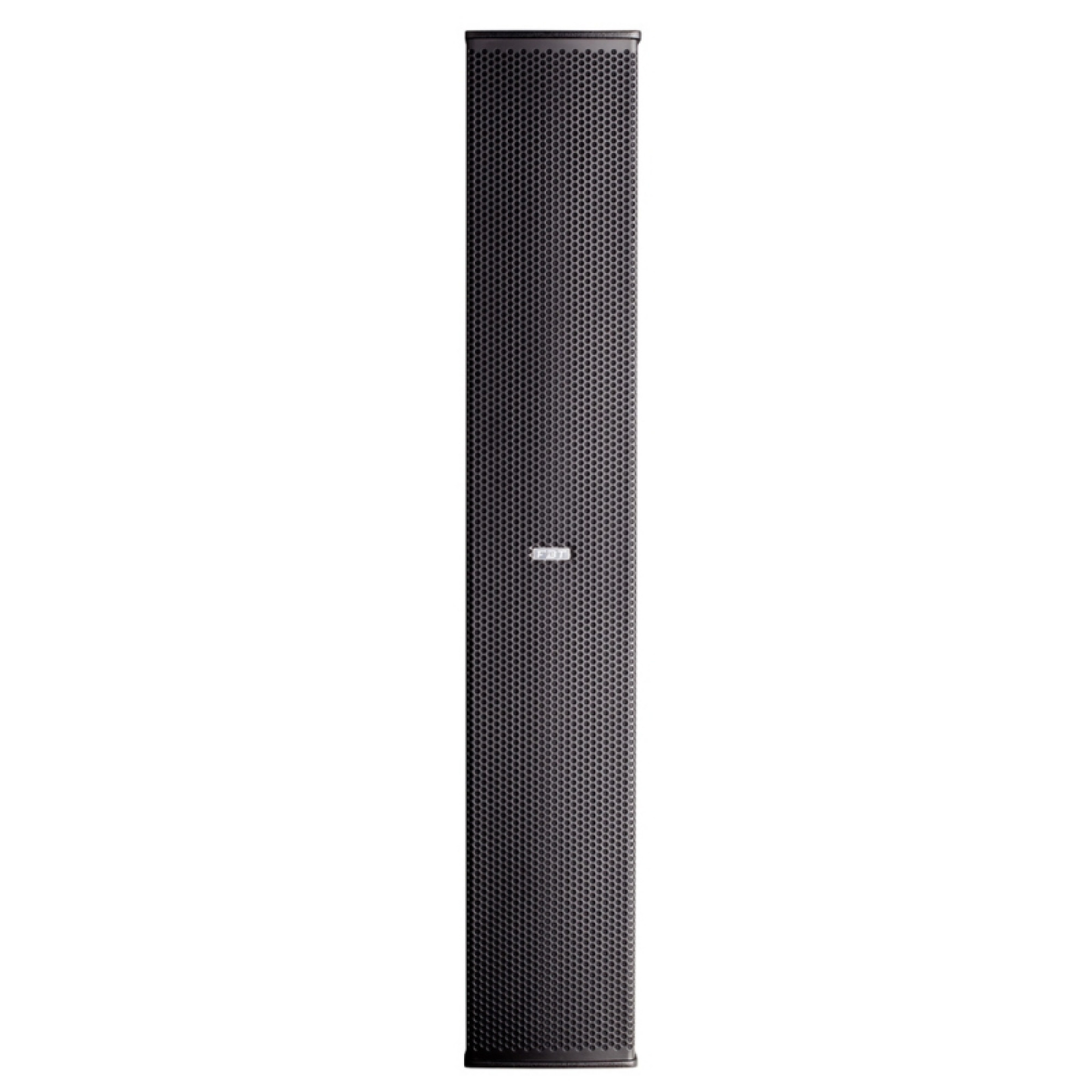

The cabinet of the FBT VERTUS CLA 406A is constructed in birch plywood with internal metal bracing to ensure stability. The enclosure comprises four custom 165mm (6,5") woofers and a 35 mm (1,5") large format Neodymium compression driver with 64mm (2,5") voice coil for a frequency response that extends from 65Hz to 20KHz. The waveguide, specifically designed for this product and optimized by finite element simulation BEM, has a horizontal dispersion of 100° and 25° and a vertical low distortion thanks to the optimal load seen by the diaphragm of the driver. The height dimension of the waveguide allows an excellent vertical control throughout the operating range of the driver and enables the linking of the two systems in a consistent manner to beyond the 18KHz.

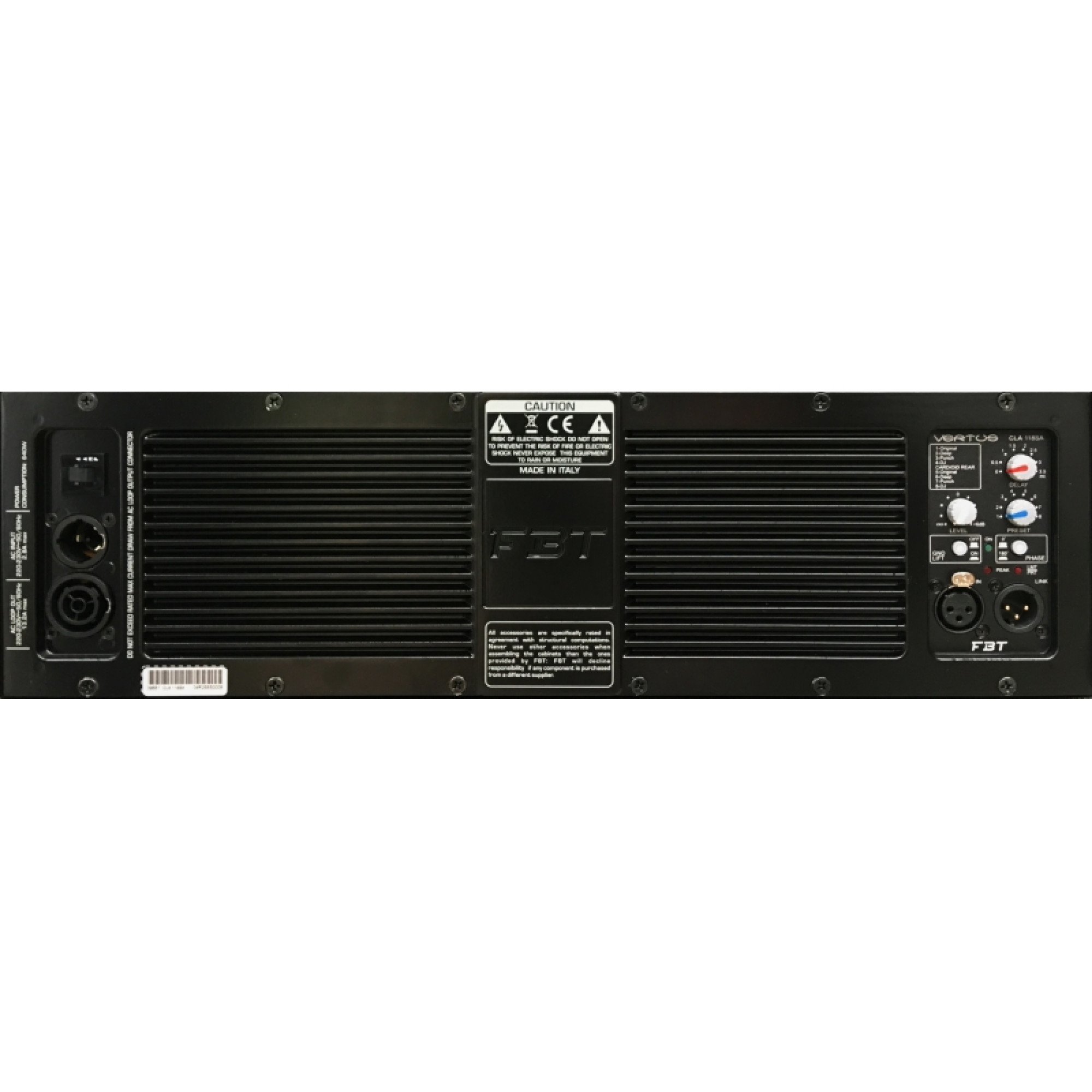

The CLA406A amplifier module has a die-cast aluminum with natural convection 600W for LF section and 300W for HF Class D switching power. Latest generation DSP algorithms offer 8 presets, ensuring that you will achieve the perfect sound in every application, plus generous headroom for maximum reliability and signal integrity.

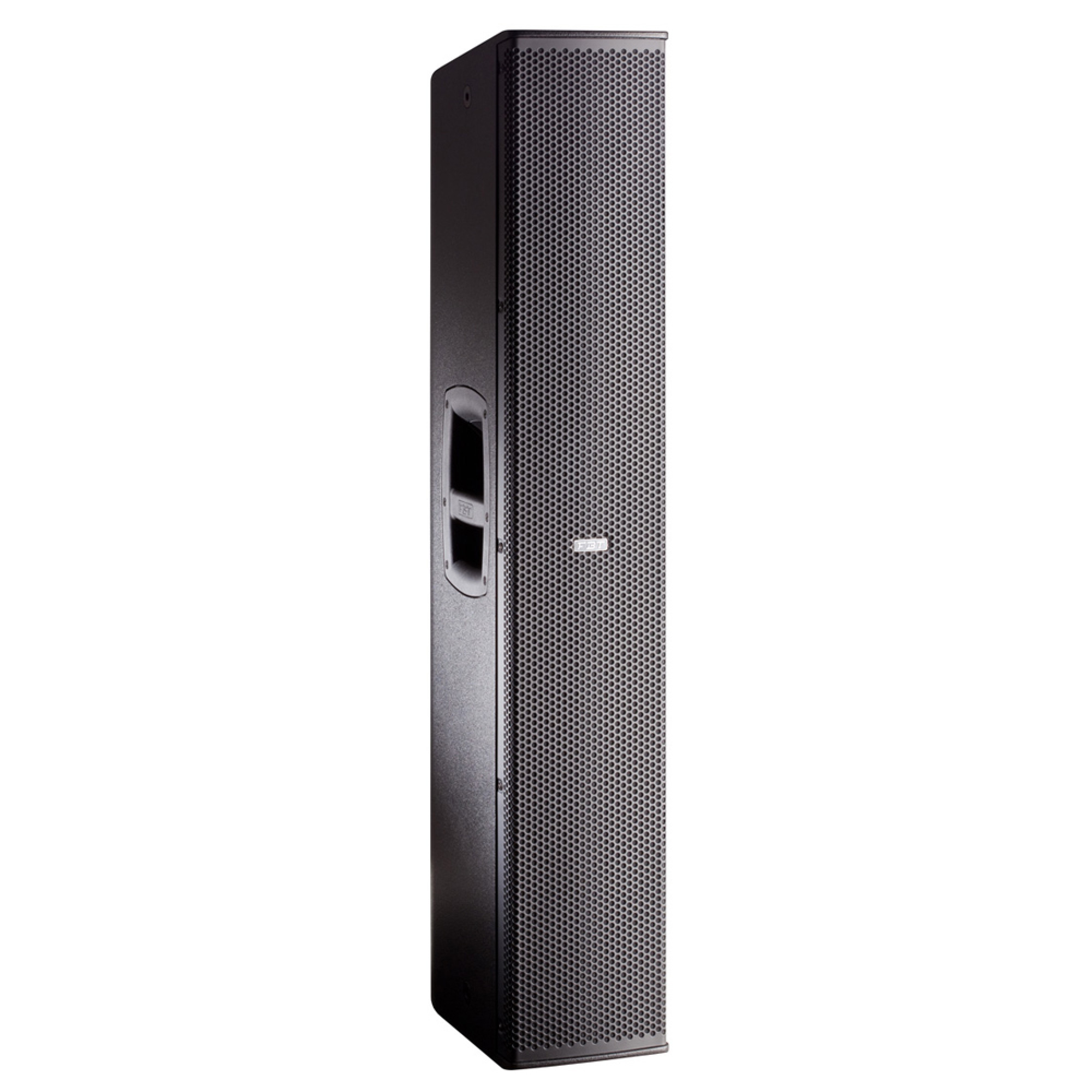

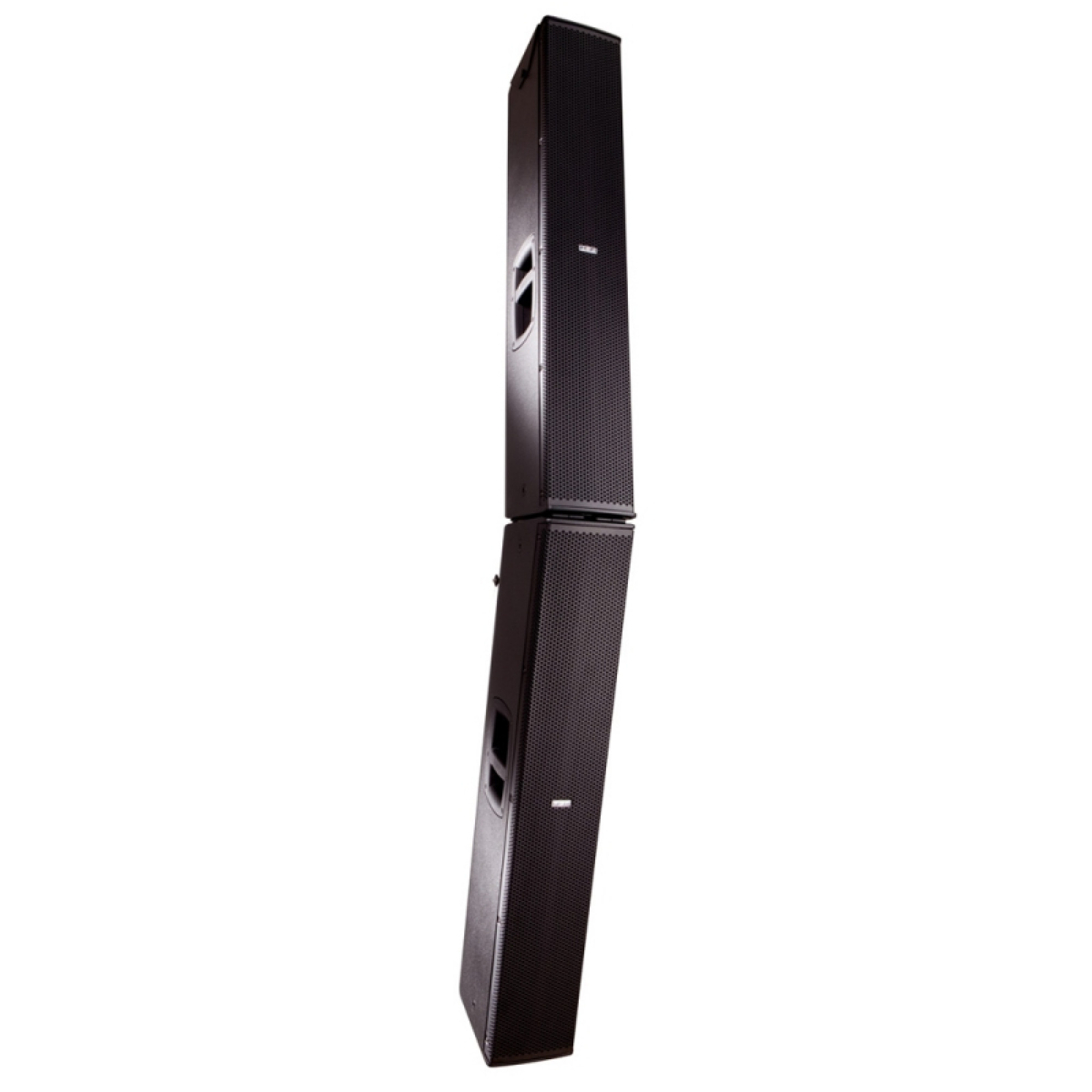

The cabinet is equipped with two aluminum handles with rubber inserts and well 12 anchor points, all of which combine to make the system extremely versatile. Via optional hardware it is possible to couple two CLA406A with angles of 0° - 10° - 20°, with the adjacent waveguides for long range or with a cabinet above the other for short-medium distance. Additional accessories are available for system suspension as well as flying the accompanying CLA118SA subwoofer.

The CLA 118SA is a subwoofer in birch plywood with a 460mm woofer from B&C in a bass reflex port with an extensive laminar airflow, minimizing turbulence and power compression. The Class-D, switching power amplifier module is constructed in die-cast aluminum with natural convection, and is rated at 1200W. Onboard DSP also offers functions such as filtering, equalization and protection.

When you need to extend the performance of the CLA406A, especially in live applications, the CLA118SA acts as a support and base for the CLA406A column that can be applied, via optional hardware, with M20 points positioned on the top of the sub. The CLA118Sa is also modular and can be stacked thanks to special milling, increasing the SPL and raising the base of CLA406A. The CLA406A is a truly professional line array that, despite its compact size, still delivers an impressive SPL of 133dB. It can be integrated elegantly and with minimal intrusion into any environment that requires high quality sound with powerful directional control.

Features

• 2-way bi-amplified line array column system
• 4x165mm (6.5”) custom woofer voice coil 38mm (1.5”)
• B&C HF neodymium driver with 36mm (1.4”) exit and 64mm (2.5”) voice coil
• Waveguide FBT large format with dispersion 100° H x 25° V
• Frequency response from 65Hz to 20KHz
• Amplifiers Class D 600Wrms for LF and HF 300Wrms with switching power supply
• Processor DSP with 8 EQ presets
• Control Panel with XLR input and link, volume, presets, filter-HP, ground-lift
• Neutrik powerCON power IN and LINK connectors
• 12mm (1/2") birch plywood with scratch-resistant coating.
• 12 attachment points above and below for the optional hardware that allows the installation of hanging or pair two CLA406A with angle of 0 ° - 10 ° -
• 20° in the vertical plane
• Top side tilted 10 ° for the inclination of two columns without damaging gap between the waveguides for a wavefront extremely consistent over the 18kHz
• 35mm (1,3/8") top hat for stand mount facility
• It is ideal for live applications, assisted by sub CLA 118SA, which for fixed installations
